> Ham & radio equipment>PC radio interface>Signalink-SLUSB-13I pack for ICOM with 13-pin mini-din DATA socket
Signalink-13I pack for ICOM 13-pin mini-din DATA socket View larger
Tigertronics

SIGNALINK-PACK-SLUSB13I-1517

New product

U.S.A

Signalink-SLUSB-13I pack for ICOM with 13-pin mini-din DATA socket

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Signalink-13I interface pack is compatible with ICOM radios equipped with a 13-pin mini-DIN data port (DATA socket) such as: ICOM IC706, IC-706MKII, IC-706MKIIG, IC-718, IC -7410 (list below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

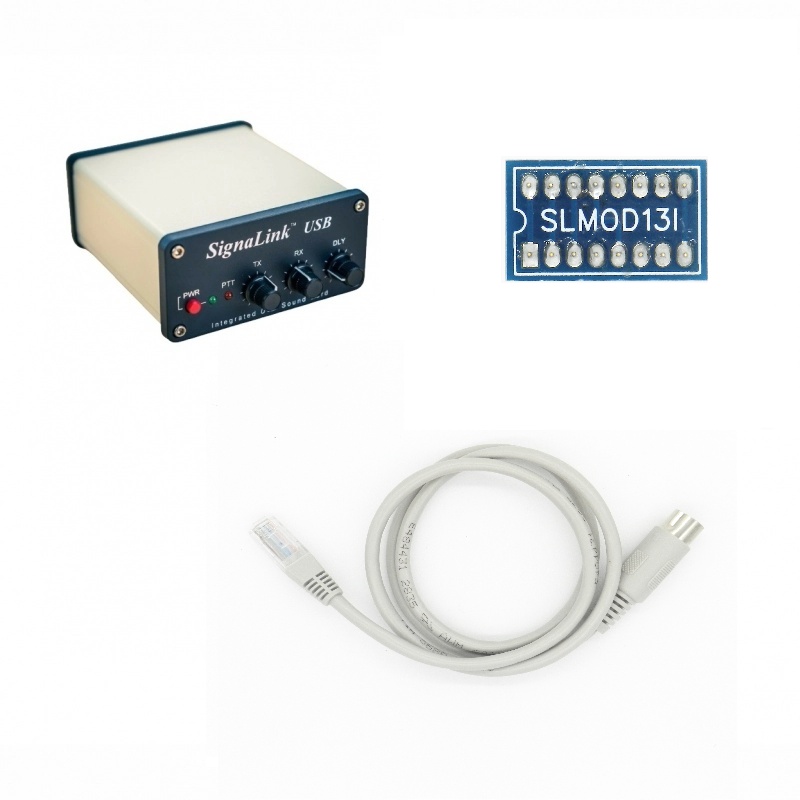

The pack includes: The Tigertronics Signalink USB interface, the SLCAB13I cable to connect the radio to the interface and the SLMOD13I jumper (jumper) to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

189,00 € tax excl.

Instead of 192,80 €

Out of stock, available within 1-2 months

Pack content

Download

Signalink cable jumper guide FR

Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k

Signalink cable jumper guide EN

Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Support Signalink (EN)

Documentation, support and help in English, in case of problem of installation, configuration or use of the Signalink interface with the radio or the software. 1.63M

Support Signalink (FR)

Documentation, support and help for Signalink in French. 1.44M

Réglages Signalink (FR)

1.2M

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This Signalink pack is compatible with the radios below:

Icom

IC-78

IC-704

IC-706

IC-706MKII

IC-706MKIIG

IC-718

IC-7410

The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.
