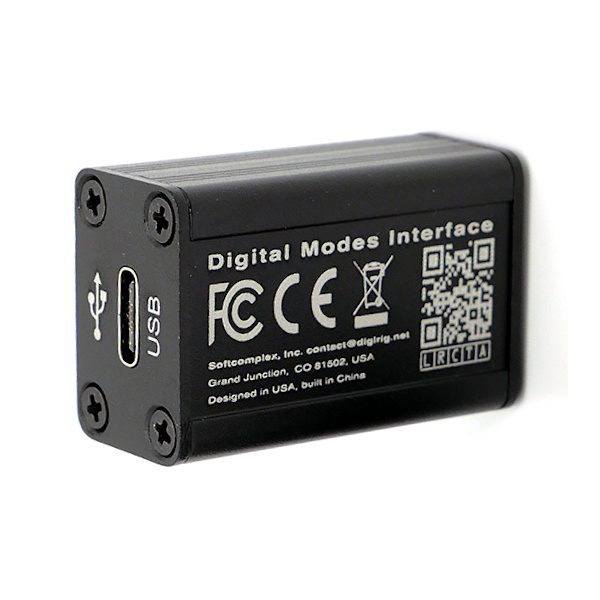

New Digirig Mobile USB interface for digital modes with CAT PTT & audio control View larger

digirig

New product

Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

Digirig Mobile USB interface for digital modes with CAT PTT & audio control

rating No review at the moment

Digirig is an integrated USB interface for digital amateur radio modes (FT8, SSTV, RTTY, CW, VARA, etc.) combining an audio codec, a CAT serial interface and PTT control.

All you need is a simple USB connection to your computer to access all the digital modes from a single small box, using the third-party software corresponding to the mode you are using.

The USB-C power cable is not included and is available as an option. Serial and audio cables must be purchased in addition, depending on the model and brand of transceiver to be controlled.

Available in 3 pre-configured versions: Logic Levels, CV-I or RS-232 to choose from*.

More details

69,00 € tax excl.

Out of stock

Availability date: 2024-11-18

  • RS-232
  • CI-V
  • Logic Levels

Data sheet

  • Combines an audio codec, a serial CAT interface and a PTT switch
  • Supports full CAT interface: PTT, tapes, tuning, etc. (not just VOX-based PTT)
  • Uses a single USB connection to the computer
  • The Computer Aided Transceiver (CAT) serial port can be configured for : Logic Levels, RS-232 or CI-V
  • Works with all major operating systems: Windows, MacOS and Linux
  • Permanently available, independently of the CAT port, an open collector PTT switch controlled by the COM port's RTS signal for interfacing with different radios
  • Axial connection points to the CM108 codec - for simple construction of Allstar homebrew nodes
  • Uses CP2102 serial interface (latest driver) and CM108 audio codec (generic audio device - no driver required)
  • Small, robust aluminium case, ideal for mobile or portable operation
  • Interface to transceiver using widely available 3.5mm TRRS jacks for simple in-house cable construction
  • Large collection of pre-built cables available including popular transceivers Icom, Yaesu, Elecraft, Baofeng, Xiegu, TYT, Anytone

* How do I choose the right Logic Levels, CV-I or RS-232 version?

If your radio has a DB9 connector, you should choose the RS-232 version. This is the same type of port that some of you may remember from the days of serial mice or remote access modems.

If your transceiver is an ICOM radio with a 3.5mm TRS socket labelled 'remote', you should choose the CI-V version.

The Elecraft KX2/KX3 and Yaesu FTM models use the RS-232 configuration for serial CAT and/or programming.

Walkie-talkies and mobile radios generally do not have CAT control, so you should choose the Logic Levels version.

If your set already has a USB socket at the back, you do not need to use digirig (except for specific VARA wide use, or if the integrated CAT control system does not work/no longer works).

List of stations with CAT already integrated :

  • ICOM IC-705
  • ICOM IC-7100
  • ICOM IC-7200
  • ICOM IC-7300
  • ICOM IC-7600
  • ICOM IC-7610
  • ICOM IC-9700
  • Yaesu FT-991A
  • Yaesu FT-710
  • Yaesu FTDX10
  • Yaesu FTDX3000
  • Xiegu X6100
  • Xiegu X6200

Digirig is open source software that encourages learning, experimentation and collaboration. All specifications, drawings and other documents are publicly available on Github and support support is available from the forum.
