> Ham & radio equipment>Power supply>Power supply NISSEI-NS-30SD 13.8V 30A
Power supply NISSEI-NS-30SD 13.8V 30A Nissei Power supply NISSEI-NS-30SD-713 View larger

Nissei

NISSEI-NS-30SD-713

New product

Taiwan

Power supply NISSEI-NS-30SD 13.8V 30A

rating Read the 7 reviews
Average rating: 5/5 Number of reviews: 7

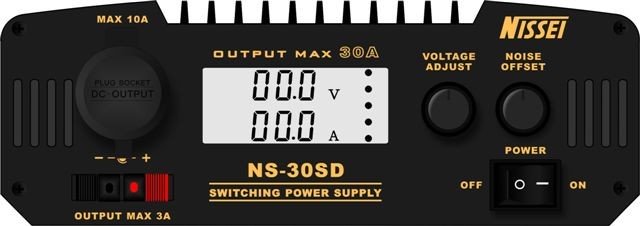

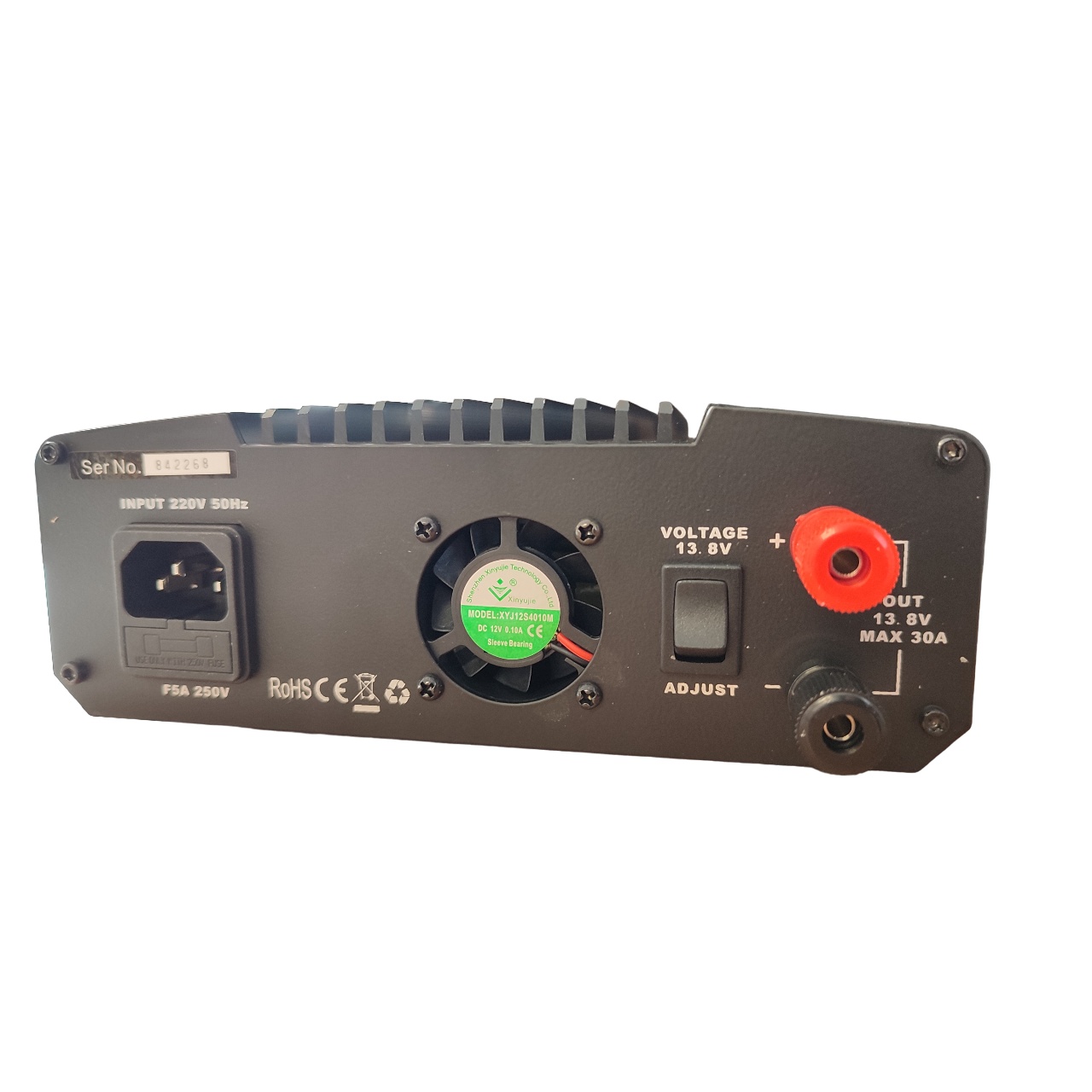

Compact switch mode power supply with digital display NISSEI NS-30SD, 13.8 V (or adjustable from 9 to 15 volts), 30 A Max. with cigarette lighter socket (max. 10A) and 3A terminal block connector on the front panel and heavy duty terminals on the rear panel.

Short circuit and overvoltage protection. Robust metal housing, LED backlight.

AC input voltage: 110V or 220V +/- 10% (47 - 63 Hz)
Continuously adjustable output voltage: 9V - 15V or 13.8V fixed (display accuracy +/-2%)
Continuous amperes : 25A (max 30A)
Current display accuracy (A) : 0 to 1% (from 18A to 30A), 2% to 4% (from 9A to 17A), 6% to 30% (from 2A to 8A)
Dimension : 19 x 7 x 21,5 cm
Weight : 2,3 kg
CE certified, 2 years warranty

Delivered with : 1 Nissei NS-30SD switch mode power supply, with 220V EU plug.

149,00 € tax excl.

Out of stock, available within 1-2 months

Download

Manual Nissei NS 30D

2.03M

Manual NS-30SD (EN)

Manual and user guide in French 382.62k
