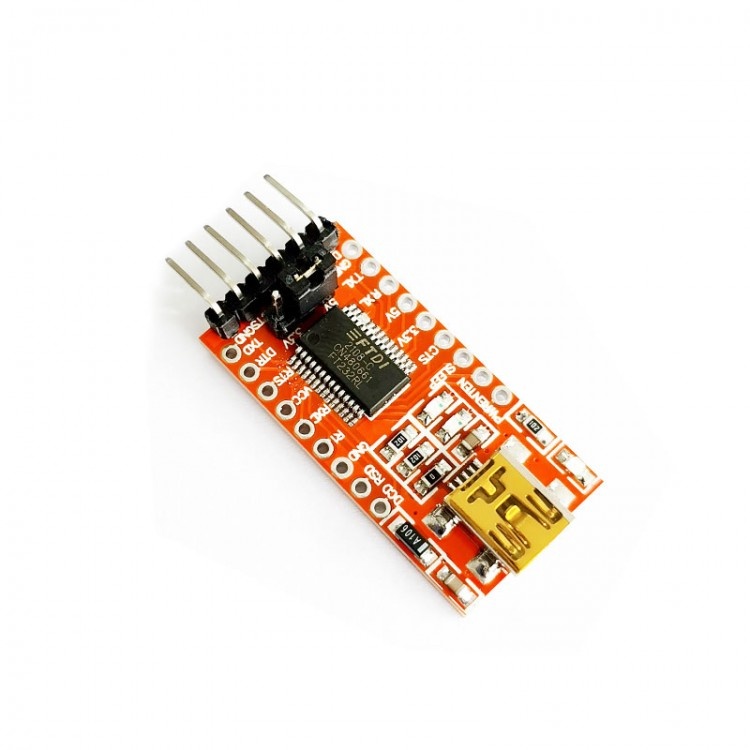

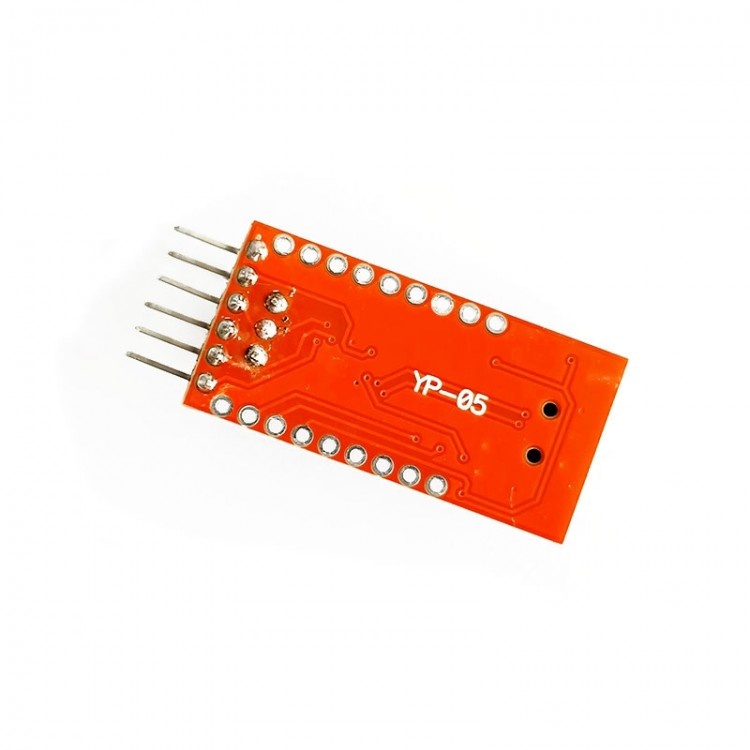

FTDI USB to TTL 3.3V 5.5V converter FT232

3.3V/5V FT232RL USB to TTL Serial Adapter Module Mini Interface with Overcurrent Protection Function

Description :
- 6 pins definition : DTR. RX. TX. VCC. CTS. GND.
- Reader download address: https://pan.baidu.com/s/1c0COdNy
- FT232RL USB2.0 chip. The USB power supply uses a 500MA fuse (FUSE) to protect your USB power supply and your equipment. which has more stable performance.
- The FT232R chip is a single-chip solution that typically does not use peripherals because it incorporates a crystal oscillator, USB matching resistor and an EEPROM that stores product information.

Hardware Introduction:
- The FT232RL chip is adopted;
- All signal ports on the FT232RL chip are TTL/CMOS level; - RXD. TTL/CMOS level;
- RXD/TXD communication receive and transmit indicator;
- USB power supply. Optional interface level 5V or 3.3V (please leave a message for the voltage you require.)

- Weight: approx. 4g
- Size: 37 x 19mm

Included in the package:
- 1 x Module
