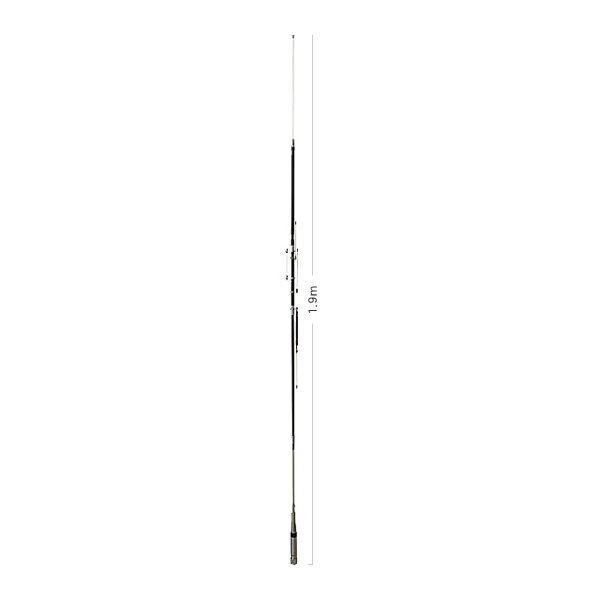

Diamond HV7CX multiband mobile HF VHF & UHF antenna

View larger

Manufacturer: Diamond Antenna

Reference: DIAMOND-HV7CX-2821

Condition: New product

Country of origin:

Japan

Diamond HV7CX multiband mobile HF VHF & UHF antenna

No review at the moment

The Diamond HV7CX is a versatile mobile antenna designed for amateur radio use on the HF 7/21/28 MHz, VHF 50 & 144 MHz and UHF 430 MHz frequency bands.

Its robust construction and ease of installation make it an ideal choice for use in mobile conditions with a single antenna for all the bands covered:

HF: 40m (7MHz), 15m (21MHz), 10m (28MHz) and with the optional HVC14CX strand: 30m (10MHz) and 20m (7MHz)
VHF: 6m (50MHz), 2m (144MHz)
UHF: 70cm (430MHz)

Maximum power: 120W (SSB) HF and 200W VHF/UHF
Length: 1.9 metres
Base: Tiltable
Connector type: PL-259

Depending on the set the antenna is used with, we recommend adding the MX-62M diplexer to separate the HF and VHF/UHF bands.

This Diamond HV-7CX antenna is guaranteed original direct from Japan.

Delivery info: This antenna is considered a very large parcel and carriers apply an additional surcharge for shipping. Package height 180cm.

More details

Download

Manual Diamond HV7CX

799.1k

Manual Diamond HV7CX (EN)

357.79k

Data sheet

Frequency bands covered

7 to 7.1MHz
14 to 14.35MHz
21 to 21.45MHz
28 to 29.7MHz
50 to 52MHz
144 to 146MHz
430 to 440MHz

Length: 1.9m
Weight: 760g (with 7MHz load coil)
Gain :2.15dBi (144MHz) and 5.5dBi (430MHz)
VSWR: Less than 1.5:1 (21/28/50/144/430MHz), less than 2:1(7/14MHz*)
Max power: 120W SSB (7/14*/21/28MHz), 200W SSB (50/144/430MHz)
Impedance: 50ohms
Connector: PL-259 (UHF Male)
Antenna type: 1/4 wave (7/14*/21/28/50MHz), 1/2 wave (144MHz), 2x5/8 wave (430MHz)
Operates without ground plane only on 144/430MHz (2m/70cm)

* Requires optional HVC-14CX coil.

Instructions for use

1 - The HV7CX antenna requires a very good ground plane in order to be tuned to the HF bands. For the VHF and UHF bands, it can operate without a ground plane.

2 - We do not recommend the use of a magnetic base with this antenna and recommend a car mount grounded to the vehicle chassis or a pierced mount.

3 - To adjust the VSWR on the HF bands, we recommend starting by adjusting the 50MHz band (6m), then the other HF bands by adjusting the size of the strands on each band. There is no adjustment for the VHF-UHF band; the antenna is pre-set for the 2m and 70cm bands.
