RC-2 remote control for AlexLoop magnetic loop antenna View larger
Previous Next

AlexLoop

ALEXLOOP-TEL-RC2-2636

New product

Brazil.

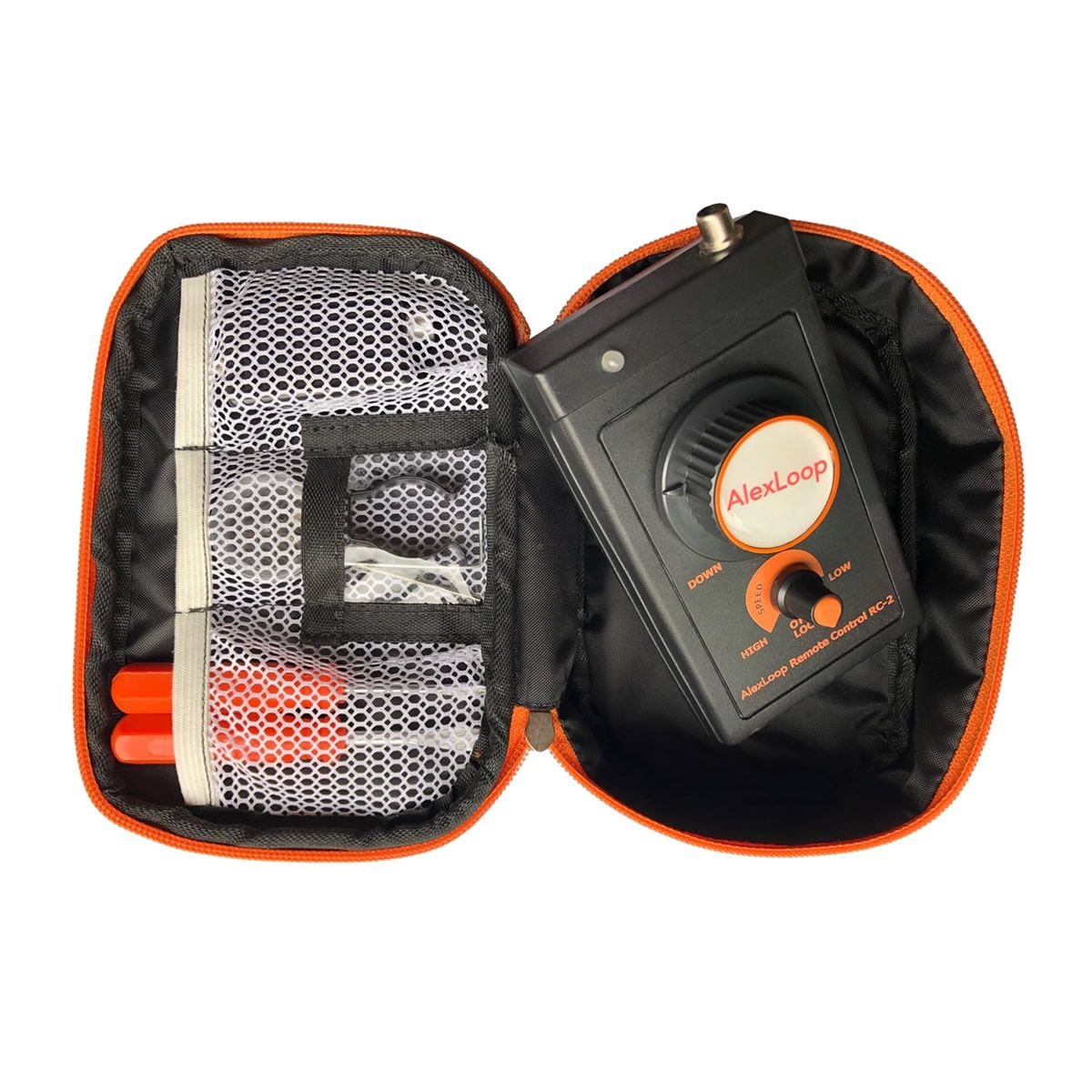

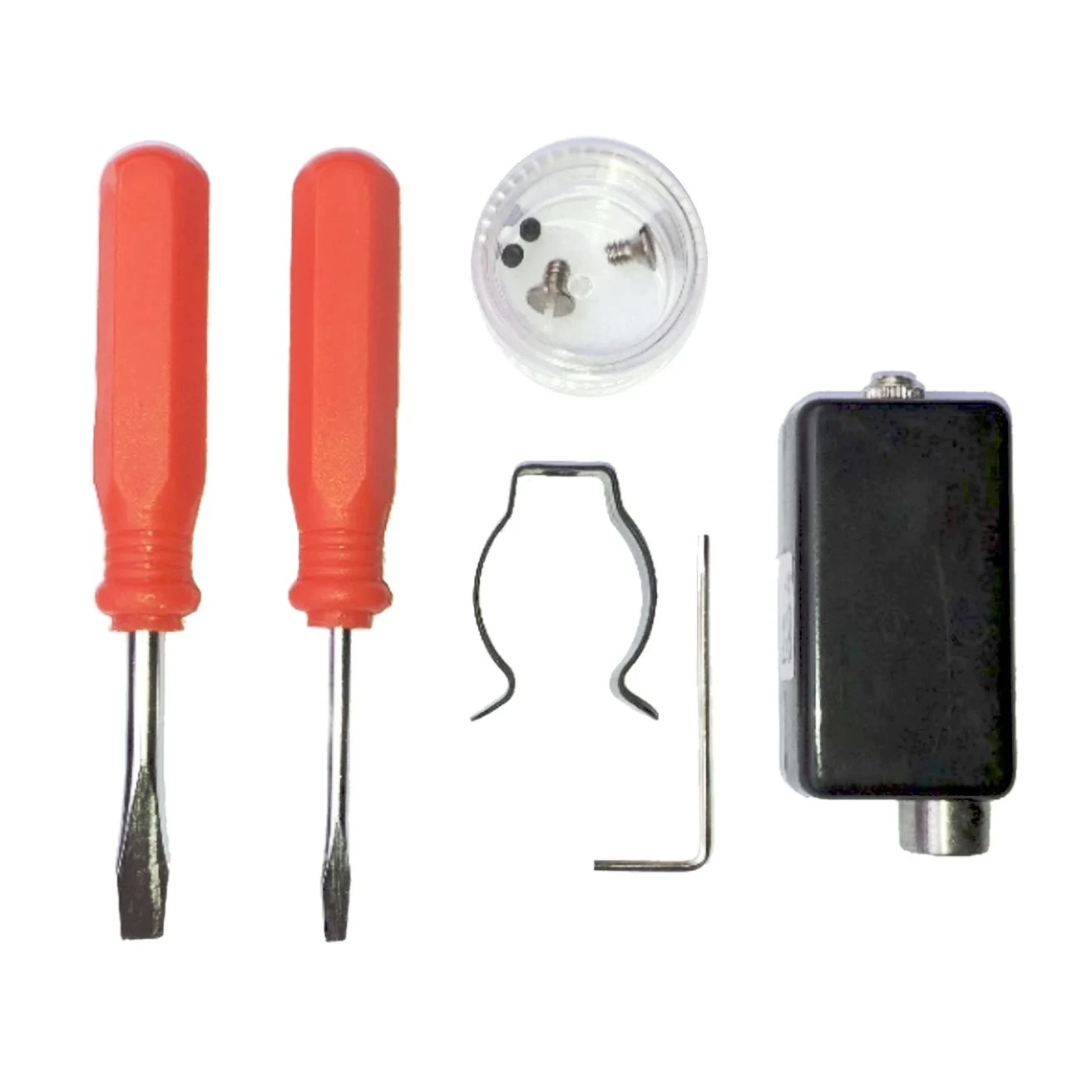

RC-2 remote control for AlexLoop magnetic loop antenna

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The AlexLoop RC-2 Remote Control System is AlexLoop Electronics' response to hundreds of emails from AlexLoop antenna users and questions asked at AlexLoop's participation in amateur radio shows.

The RC-2 portable remote control system was designed for the new AlexLoop HamPack.

The RC-2 design was created to explore the maximum possibilities of the AlexLoop HamPack from a distance.

More details

459,00 € tax excl.

In stock

   1 Item

Warning: Last items in stock!

Download

Manuel AlexLoop RC-2 (FR)

618.23k

Data sheet

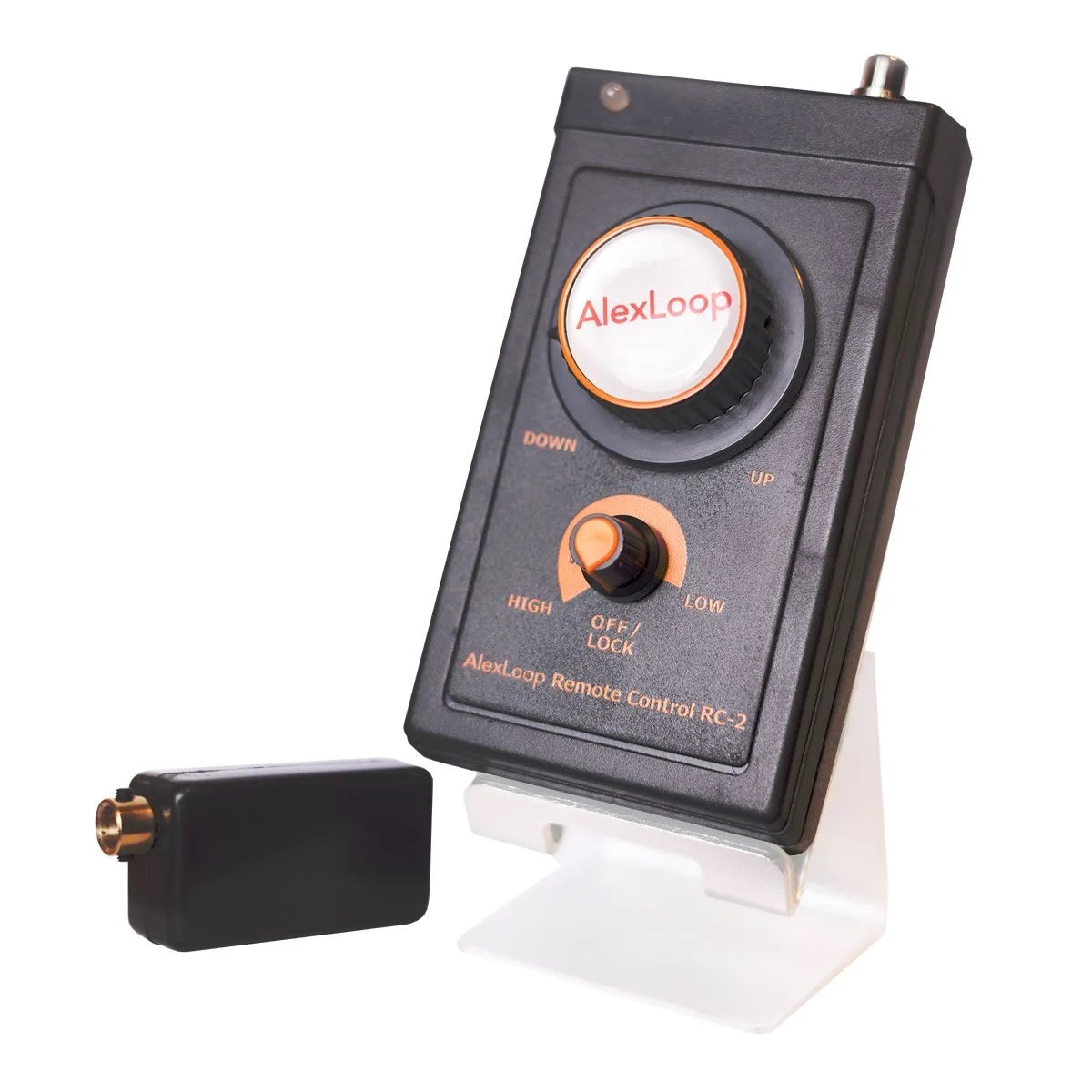

The larger knob on the RC-2 remote tuner allows the operator to select the band/frequency on which he wishes to operate and the direction in which he should turn the knob to switch to a higher or lower band/frequency.

The tuning speed control knob is located below the larger tuning knob.

A higher tuning speed allows the desired band/frequency to be located quickly. A sudden increase in band noise indicates that the operator is close to the best tuning point for transmission and reception.

The operator should then select a continuous carrier mode (AM or FM) on the transceiver and press and hold the PTT. (Some modern transceivers have an XMIT button to generate a carrier signal).

Now, using a slower tuning speed, turn the tuning knob right and left until the LED shines brightest. The transceiver will now display the lowest SWR. Release the PTT and choose the mode (SSB, CW, FM, AM or digital mode) in which you wish to operate.

The RC-2 handheld remote control is powered by a standard 9-volt alkaline battery (not included).

Important: The AlexLoop RC-2 remote control is precision electronic equipment. Although it is designed to last a long time, it is important to take care of it and never place heavy objects on it.

  • Customers also bought

    No products available

  • We also recommend

    • Adapter BNC Male UHF Female Passion Radio RF Cables & Adapters ADAPT-BNC-M-UHF-F-73
      5,90 €

      Reference: ADAPT-BNC-M-UHF-F-73

      BNC Male UHF Female Adapter

      BNC Male to UHF Female adapter. For VHF/UHF walkie-talkies and portables, scanners, with BNC Female connector for fitting an aerial.

      5,90 €
    • RG58 coaxial cable with BNC Male
      7,90 €

      Reference: CORDON-RG58-BNC-30CM-1115

      RG58 coaxial cable extension with BNC Male

      Coaxial patch cable with BNC Male connector - BNC Male with RG58 MIL-C-17 50 ohm coaxial cable for use in frequencies from 0 to 1000Mhz. Available in different lengths: 30cm, 50cm, 1m or 2 metres

      7,90 €
    • RG58 coaxial cable with BNC Male and SMA Male
      7,50 €

      Reference: CABLE-RG58-BNC-SMA-50CM-1116

      RG58 coaxial cable extension with BNC Male and SMA Male

      Male coaxial cable with BNC connector - Male SMA with 50 ohm RG58 MIL-C-17 coaxial cable for use in frequencies from 0 to 1000Mhz. Available in different lengths: 50cm, 1m or 2 metres. Connector 1:

      7,50 €
    • RG58 coaxial cable with BNC Male and UHF Male (PL-259)
      7,90 €

      Reference: CABLE-RG58-BNC-UHF-50CM-1117

      RG58 coaxial cable extension with BNC Male and UHF Male (PL-259)

      Coaxial patch cable with BNC Male - UHF Male connector (PL-259) with RG58 MIL-C-17 50 ohm coaxial cable for use in frequencies from 0 to 1000Mhz. Available in different lengths: 50cm, 1m or 2 metres.

      7,90 €

Reviews

Click here to leave a review

rating 5
The RC-2 is a must have accessory for your AlexLoo
After using an AlexLoop for a period of time, I found myself having to get up and tune it often especially when switching bands. The alexloop remote control tuner solves this issue. The tuner kit comes with everything to attach the remote tuner in a very nice padded bag which matches the Alexloop Hampack. The tuner installs In a few min and you are up and running. instructions are straightforward. Operation of the alexloop is simple with 2 knobs. One is for turning the dial and the other for on/off and setting the turning speed of the main dial. This works well. My operating experience is so much more ienjoyable not having to get up to tune the antenna .. ii can do it from my seat. I forgot to say I use my Alexloop in my home office which works well. too. Thanks to passion radio for a great ordering experience.
rating 5
Indispensable
Accessoire indispensable pour une utilisation rapide
