> Ham & radio equipment>Mobile VHF UHF>Mobile VHF QYT KT-780 PLUS 144Mhz 60W or 430Mhz 50W
Mobile VHF QYT KT-780 PLUS 144Mhz 60W or 430Mhz 50W QYT Mobile VHF UHF QYT-KT780-PLUS-681 View larger
Previous Next

QYT

New product

China

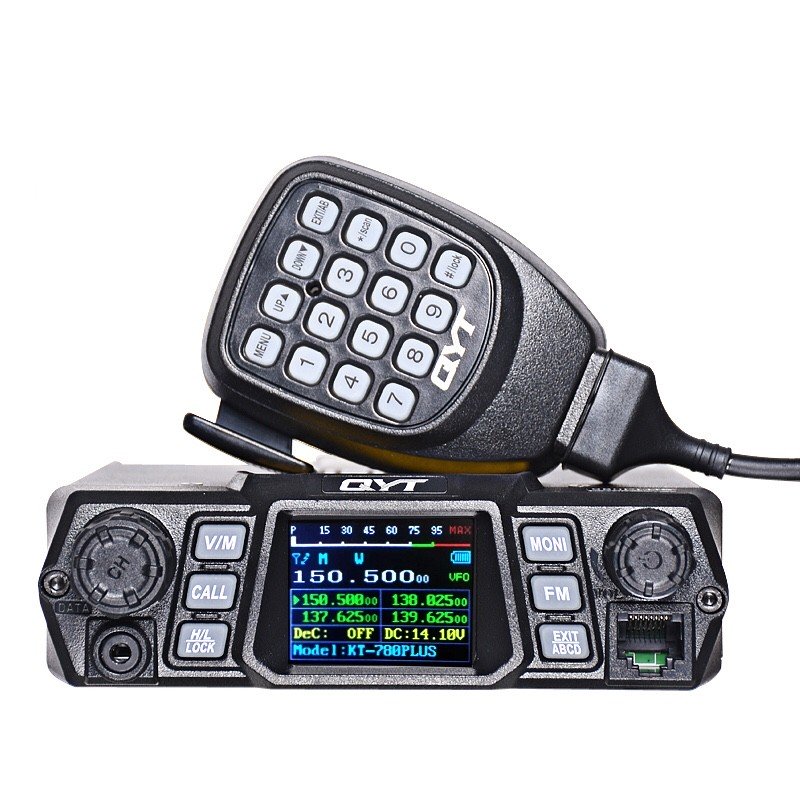

Mobile VHF QYT KT-780 PLUS 144Mhz 60W or 430Mhz 50W

rating Read the review
Average rating: 5/5 Number of reviews: 1

The QYT KT-780 PLUS mobile covers in RX and TX 144-146 MHz or UHF 430-440MHz (single-band VHF or UHF) in analog FM mode with 60 watts maximum VHF and 50W max. UHF.

Functions: scan, quad display, 4 frequency alternate watch, repeater mode, CTCSS, DTMF, 1750Hz tone, VOX, 200 channels, frequencies step 5K, 6.25K, 10K, 12K and 25K and price 3.5mm speaker / external earphone.

Comes complete with: 1 QYT KT-780 PLUS (144Mhz or 430Mhz), 1 microphone, 1 microphone clip holder, 1 bracket and screw for mounting, 1 car power cable (12V), 1 manual (in English).

More details

This material is no longer available

  • VHF
  • UHF

Download

Manual QYT KT780Plus (EN)

Manual in english QYT KT780 Plus. 10.4M

Drivers QYT Windows

QYT drivers for QYT programming USB cable, for all Windows. 4.2M

CPS software QYT KT780+ VHF

Programming software for the QYT KT-780 Plus, VHF single-band version. 2.3M

CPS software QYT KT780+ UHF

Programming software for the QYT KT-780 Plus, UHF single-band version. 2.3M

Data sheet

QYT KT780 PLUS Mono Band Features

Frequency range (VHF): 144-146 MHz
Frequency range (UHF) : 430-440MHz
Number of channels: 200
Output Power 144Mhz: 60W
Output Power: 430Mhz : 50W
Consumption: 16A (H) / 9A (M) / 6A (L)
Channel spacing: 25KHz / 20KHz / 12.5KHz
Frequency stability: ± 2.5ppm
Operating temperature: -20 to + 60°C
Operating voltage: 13.8V DC ± 15%

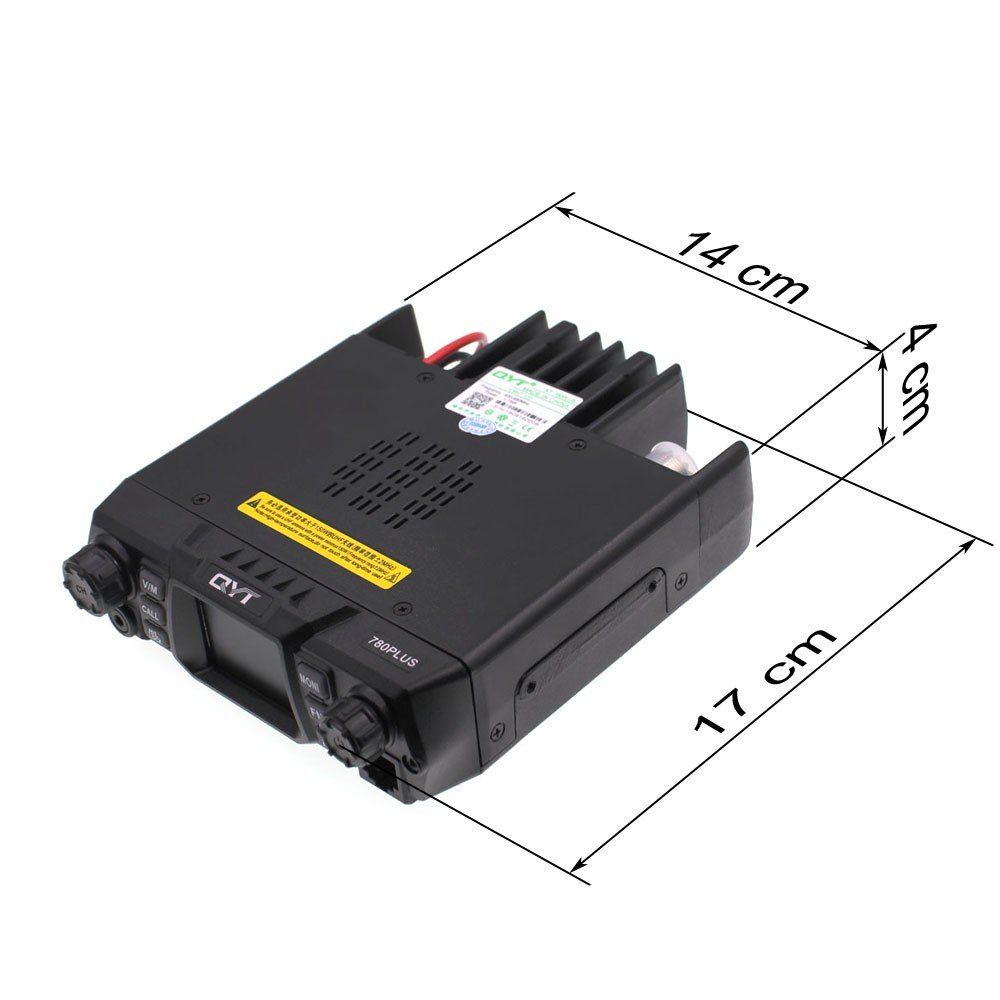

Dimension: 140 x 43 x 172 mm
Weight: 1Kg
CE Standards
2 years warranty by Passion Radio

This transceiver is usable with a radio license and under the sole responsibility of the user according to the laws applicable in the country. The QYT KT-780 PLUS is delivered unprogramed.
