Mobile FM 29/50/144/430Mhz 50W Wouxun KG-UV980P Wouxun Mobile VHF UHF WOUXUN-KG-UV980P-795

View larger

Display all pictures

Manufacturer: Wouxun

Reference: WOUXUN-KG-UV980P-795

Condition: New product

Country of origin:

China

Mobile FM 29/50/144/430Mhz 50W Wouxun KG-UV980P

Read the 2 reviews

Average rating: 4/5 Number of reviews: 2

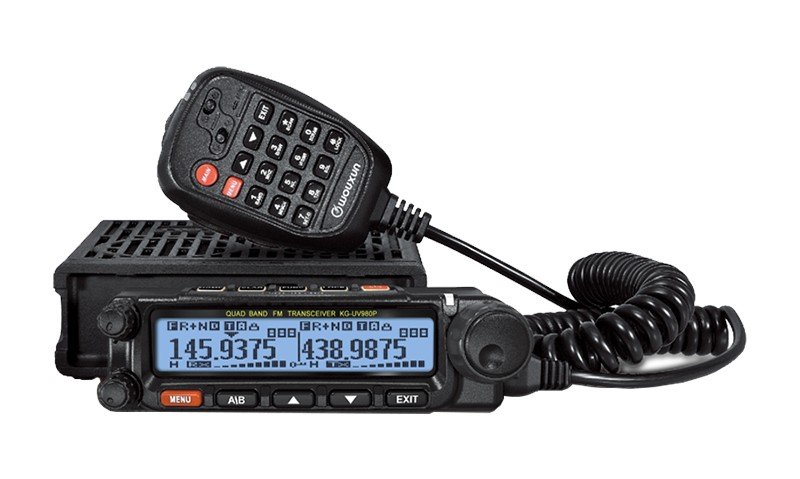

The mobile Wouxun KG-UV980P, with detachable facade, covers the 4 radio bands 29/50/144 Mhz with 50W and the band 430 Mhz with 40 watts maximum.

Comes complete with: 1 Wouxun KG-UV980 P, 1 remote support for the front panel, 1 extension cable for the front panel, 1 microphone with fixing clip, 1 bracket mounting bracket, 1 DC power cable, screw and fuse, manual English.

More details

Download

Drivers USB Wouxun Windows

Drivers CP210x Windows 10, WIN 7 & 8 and Windows XP for any Wouxun workstation. 11.26M

Manual KG-UV980P (EN)

Manual for Wouxun KG-UV980P 10.91M

USer manual KG-UV980P (FR)

Operating instructions in French for the Wouxun KG-UV980P, by Jean-Pascal from F5MYQ. 920.31k

CPS Software KG-UV980P

Official Wouxun V1.02 programming software CPS for KG-UV980P 1.35M

Data sheet

Features Wouxun KG-UV980 P

999 memories
Quad band:
Frequencies 28-29.7 MHz (10 m)
Frequencies 50-52MHz (6m)
144-148 MHz VHF frequencies (2m)
UHF frequencies 430-440 MHz (70cm)
AM 108-136 MHz (RX AM)
Repeater mode
Duplex Cross-Band and Cross-Band Repeater
scrambler
40W (UHF) / 50W (VHF) transmit power
88-108Mhz FM Radio
Coding / decoding CTCSS / DCS / DTMF
3-color selectable backlit LCD display
Backlit Keyboard
2 3.5 mm speaker ports
Programmable by PC (requires an optional cable)
DTMF hand-held backlit microphone with loudspeaker
Front panel remote installation option

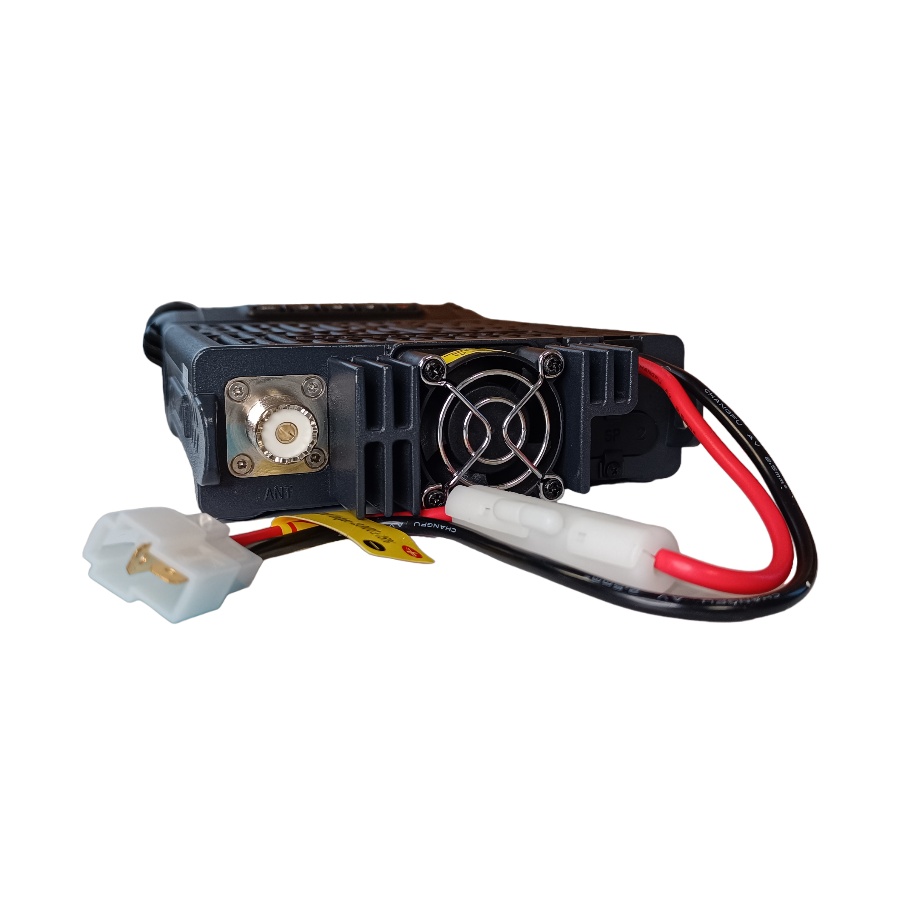

Antenna connection: SO-239 - UHF Female
Dimension: 250mm x180mm x80mm
Weight: 1.5 kg
2 year warranty and CE standards

Reminder: The use of any radio transmission device, such as the Wouxun KG-UV980-P is subject to the user's compliance with the frequencies and legislation in force and requires a radio license to be used legally.
