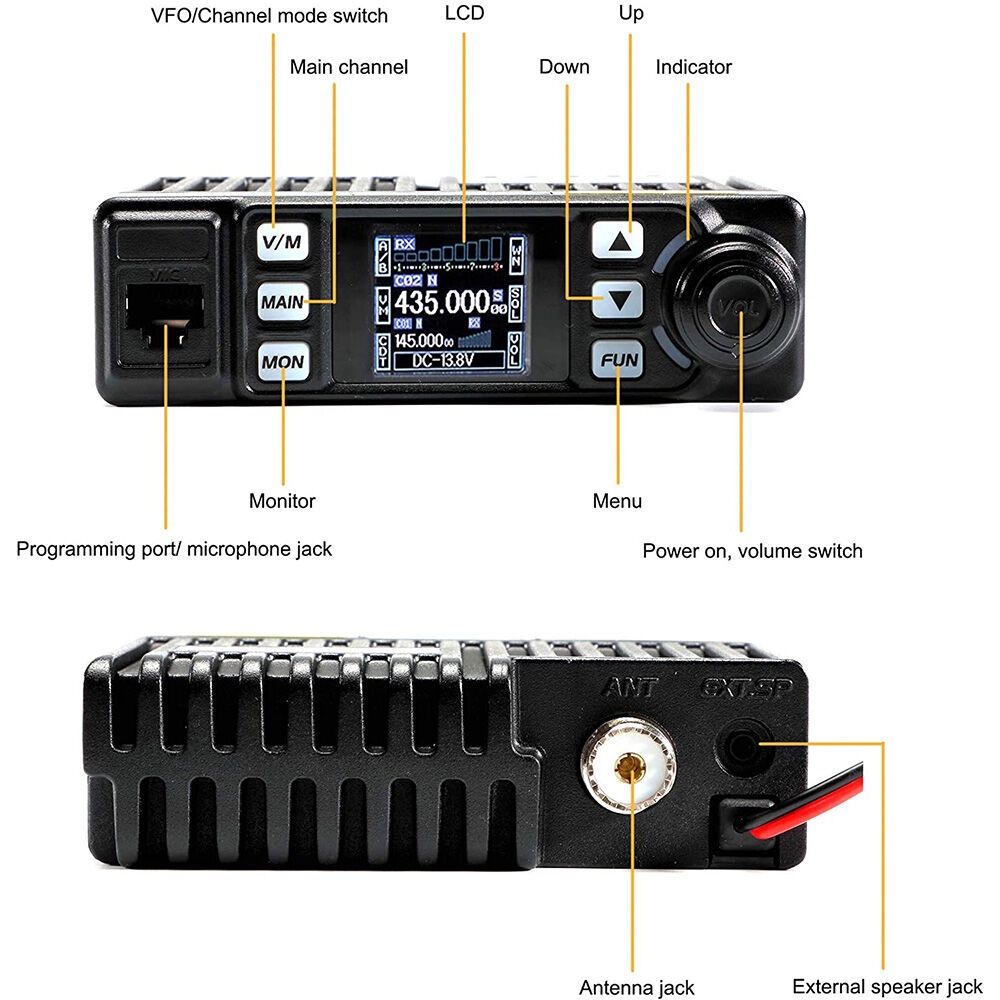

Mobile Anytone AT-779UV Dual Band 25W FM 144/430Mhz + Cigar Lighter
Read the 8 reviewsThe Anytone AT-779UV is the latest addition to Anytone's ultra-compact and robust dual-band VHF and UHF range for the 144Mhz (2m) and 430Mhz (70cm) amateur radio bands, analogue FM mode with 25 watts (VHF) and 20 watts (UHF ) and TFT colour display.
With CTCSS, DCS, DTMF, 1750Hz tone, 2Tone, 5Tone, 500 channels, 2.5K, 5K, 6.25K, 10K, 12.5K and 25K frequency steps, external speaker/listener socket and 12V power supply with cigarette lighter socket included.
This set is programmable under Windows 10 with the USB programming cable not included.

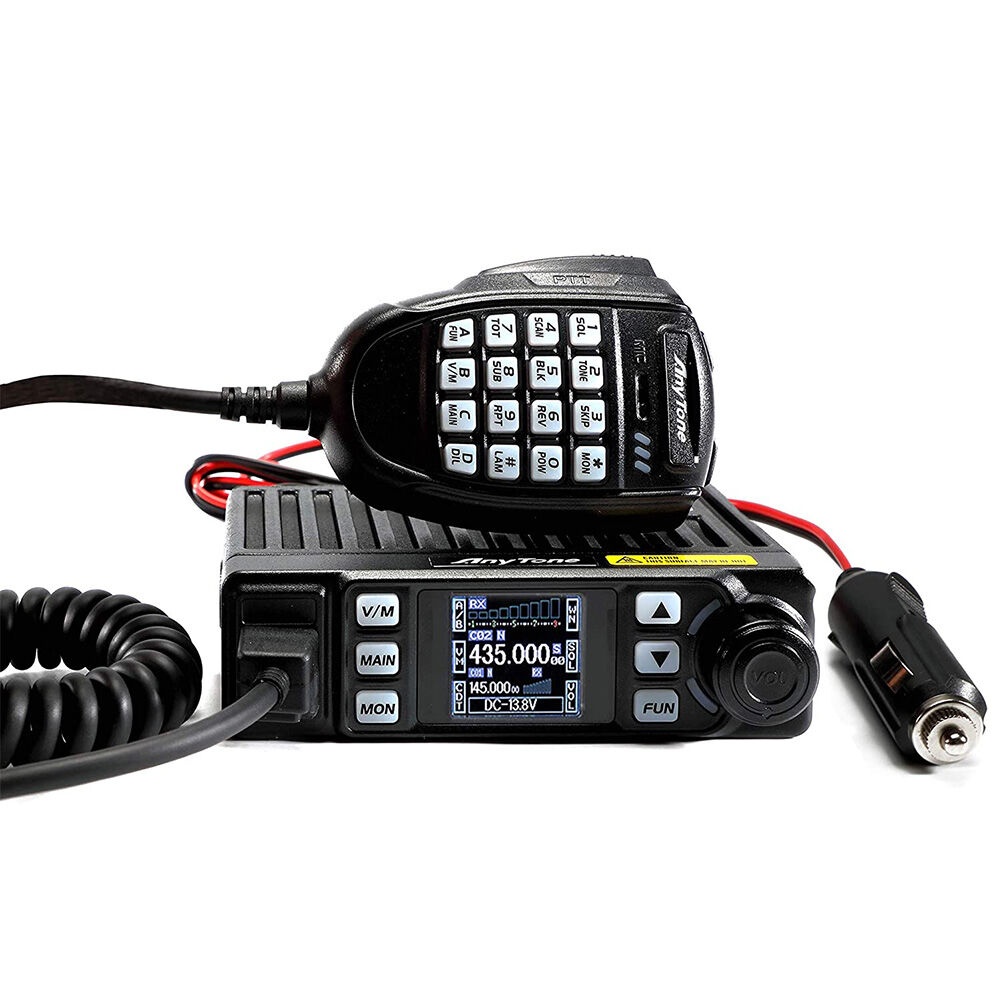

Supplied complete with: 1 AT-779 UV, 1 multi-function handheld microphone, 1 mounting bracket and stand, 1 DC power cable with car cigarette lighter socket (12V), instructions for use (in English) and in French to download below.
Download
Manual and quick user guide for the Anytone AT-779 UV by Roland from F6FWI. 251.46k
Data sheet
Dual-band: VHF and UHF
TX: 144-146 MHz and 430-440 MHz
RX: FM radio 87.5-108MHz, 144-146 MHz, 430-440 MHz
DTMF coding and decoding
CTCSS, DCS, 2Tone, 5Tone
Tone 1750Hz
500 memory channels
Editable channel name
Adjustable power: 25W / 10W / 5W
TOT (Time-out timer)
Frequency steps: 2.5K 5K 6.25K 10K 12.5K 25K
Wide/narrow band selection (25KHz, 12.5KHz)
Frequency scanning
Voice Companding and Scrambler
Offset repeater (Simplex / RPT+ / RPT-)

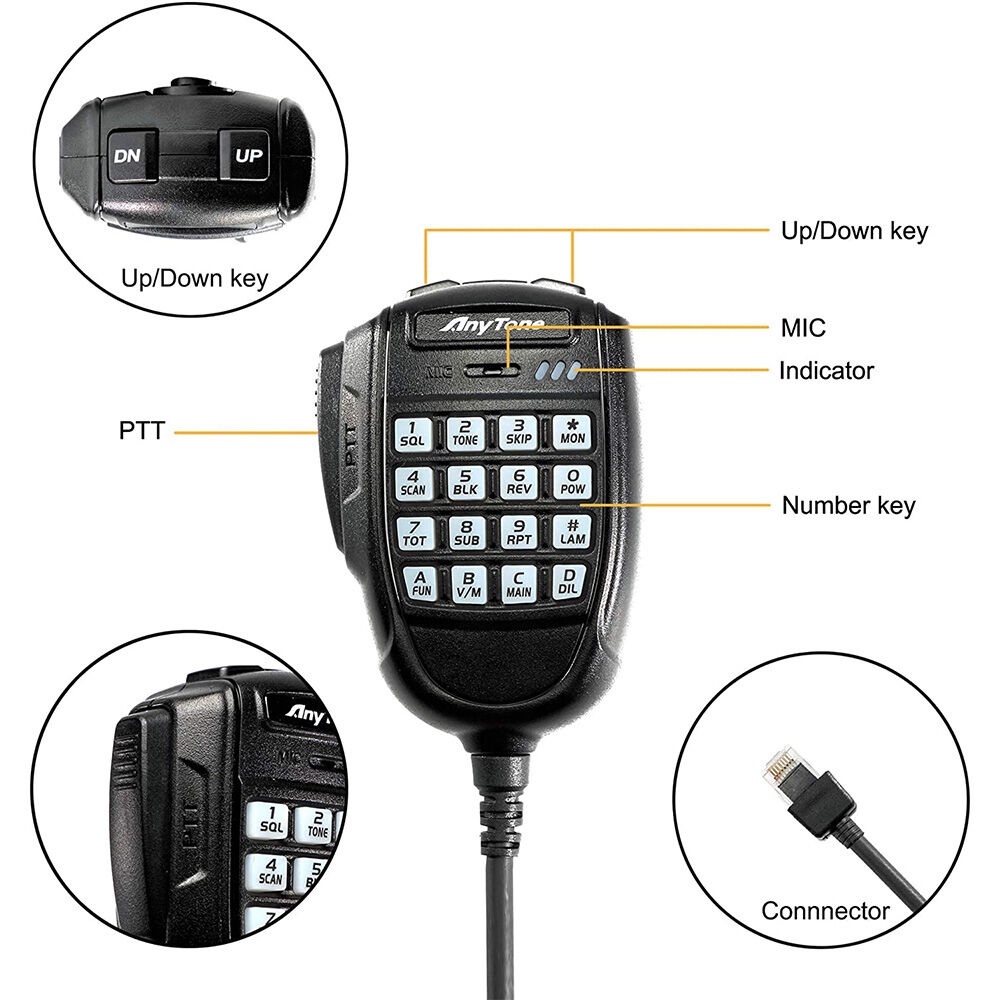

Frequency input via microphone keypad
Programmable via PC software (USB programming cable included)

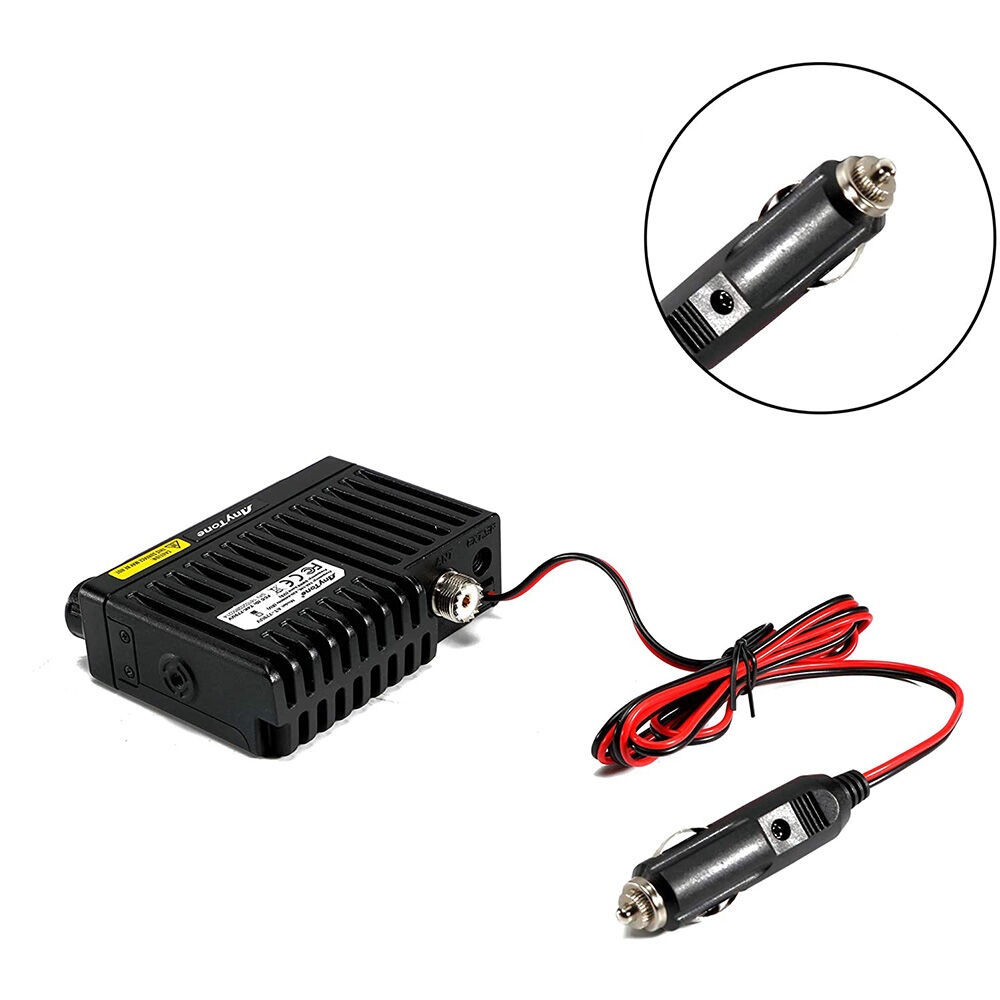

Power supply : 12V via cigarette lighter socket (included)
Size: 124x101x36mmm
Weight: 450 grams
The Anytone AT-779UV is guaranteed for 2 years
CE RED standards
RJ45 microphone wiring
The diagram below shows the pin positions required. Pin 8 is always the earth connection.
Note: On some microphones the TxD and RxD cables may be reversed. If this does not work when first wired, simply reverse pins 1 and 3.
Presentation of the AT-779UV and opinion on the equipment
How do I program the Anytone AT-779?
