TTGO T-display S3 ESP32-S3 WIFI BT 5.0 development board with 1.9" TFT IPS LCD screen

rating No review at the moment

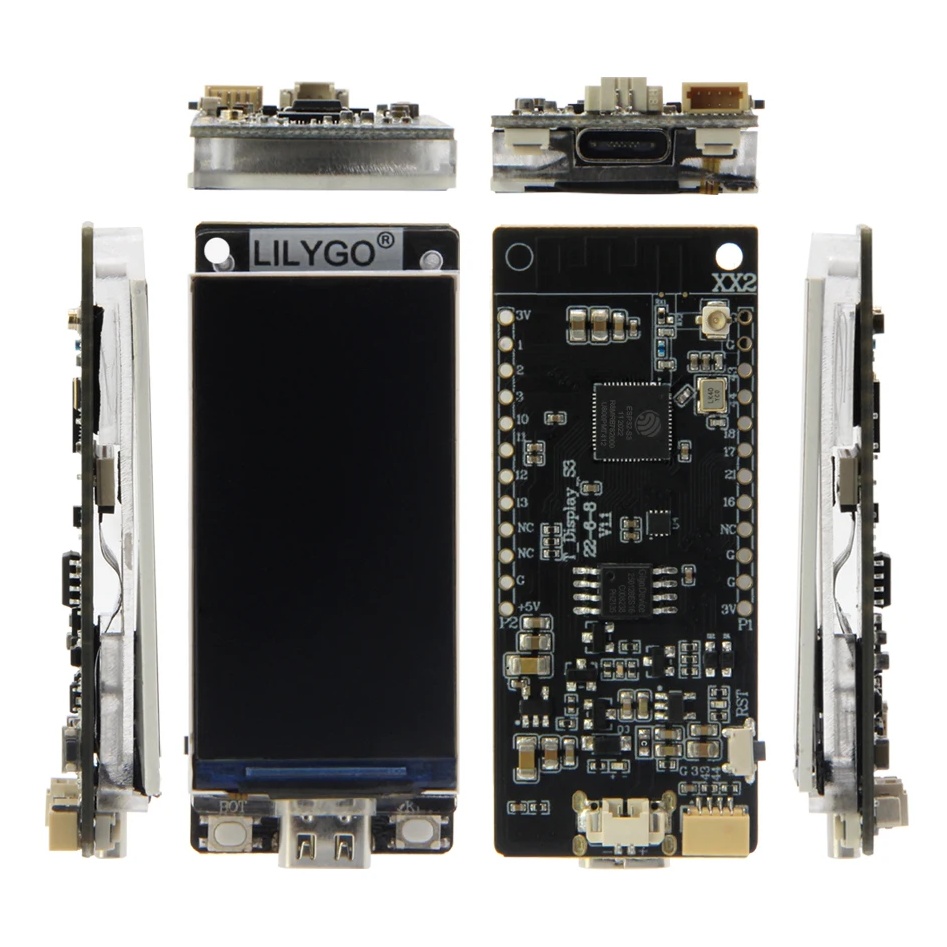

The TTGO T-display S3 is a wireless development board with an ESP32-S3 WIFI BT 5.0 microprocessor, a 1.9-inch ST7789 TFT IPS LCD screen and a case.

  • MCU: ESP-S3
  • 16 MB Flash memory
  • 8 MB PSRAM
  • Wireless connectivity: Wi-Fi 802.11 and Bluetooth 5.0 + BT mesh
  • Programming platform: Arduino-ide and Micropython
  • On-board functions : Boot+Reset+IO14 button
  • Screen type: TFT IPS LCD
  • Size: 1.9 inches
  • Resolution: 170(H)*320(V)
  • Power supply: 3.3V - 5V via USB-C or external battery/power supply (not included).
  • Dimensions: 62 x 26 x 10 mm

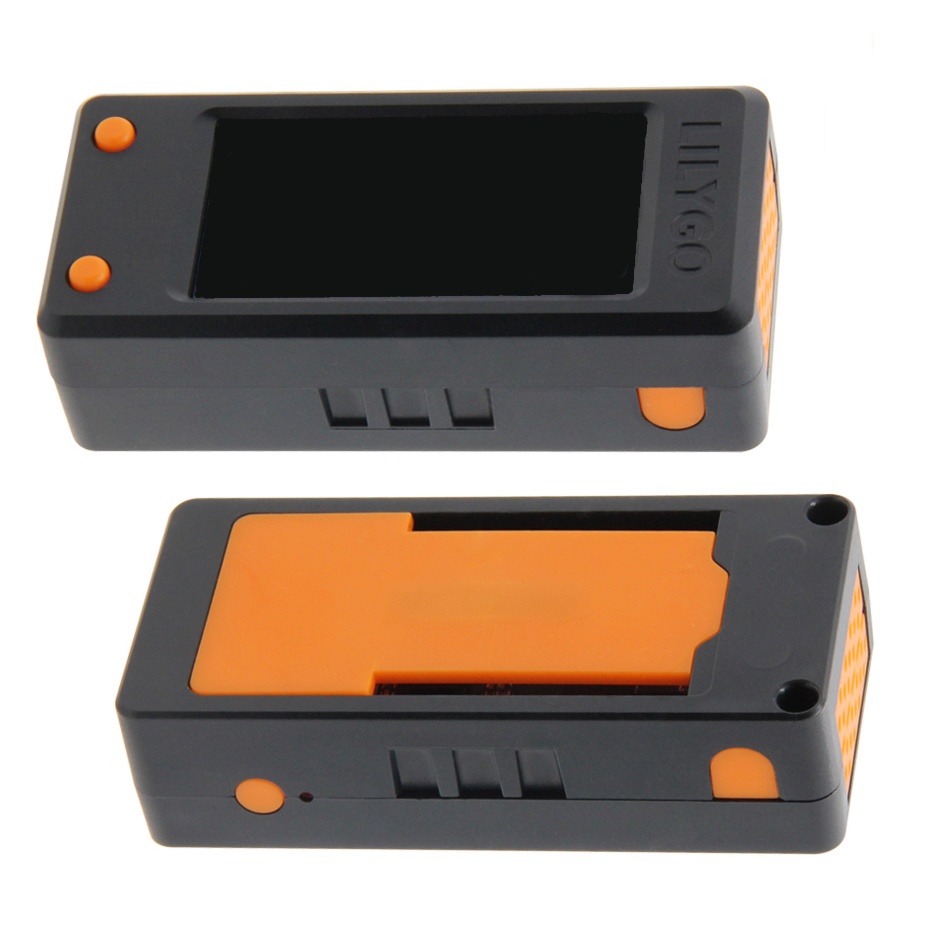

Supplied with: 1 LILYGO TTGO T-display S3 with case. Available in 2 versions with PIN already soldered or not (choose the version below).

Find configuration information on Github.

More details

22,55 € tax excl.

23,25 €

In stock

   3 Items

  • With soldered PIN
  • Without soldered PIN

Data sheet
