SWR RigExpert ZERO II analyser from 0.1 to 1000 MHz with Antscope support

rating No review at the moment

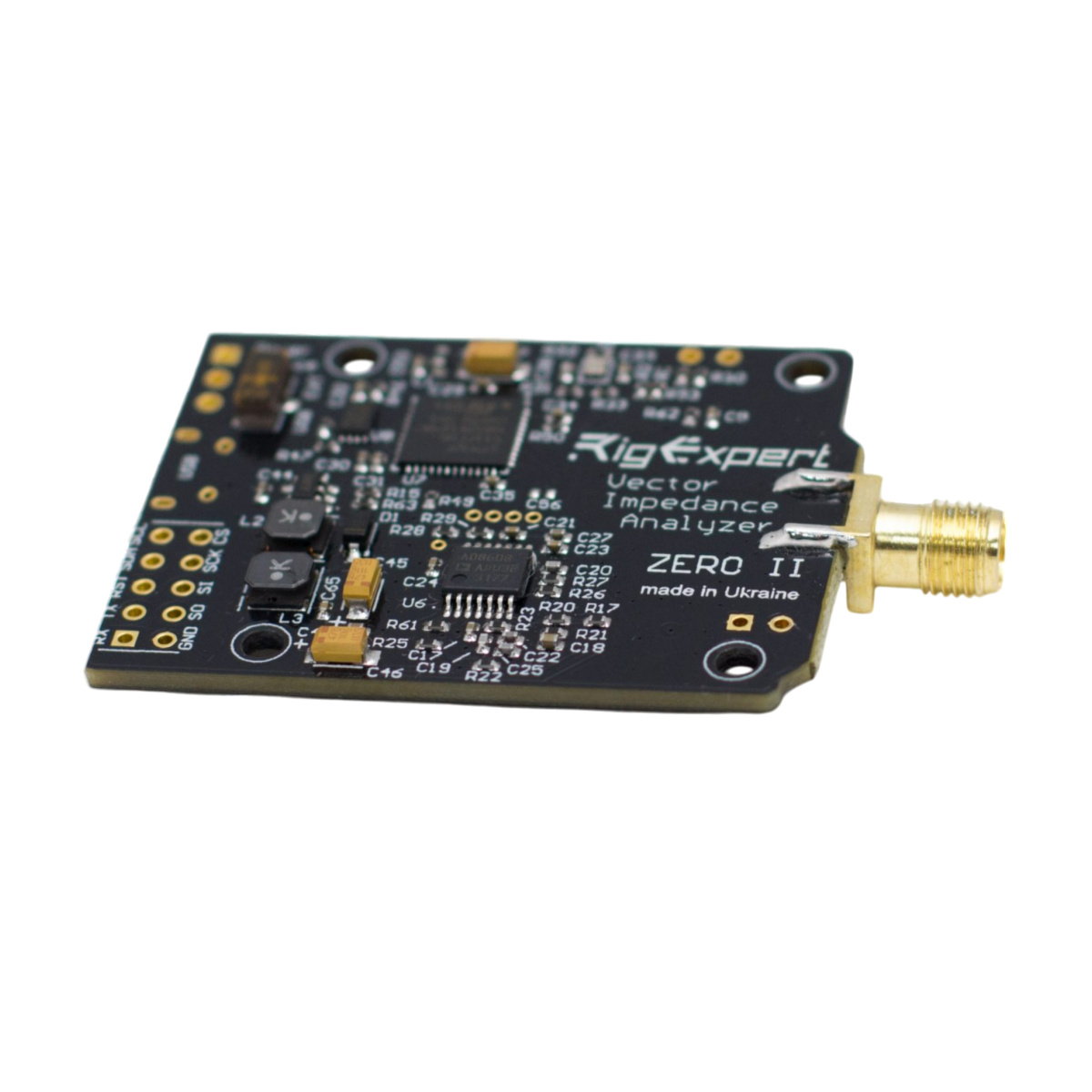

The RigExpert ZERO II Antenna SWR Analyser board is a device for on-board installation and can be used, for example, in antenna tuners, transceivers or power amplifiers as the central element of the load matching circuit.

  • Frequency range: 0.1 to 1000 MHz
  • Frequency setting time: 20 ms
  • Feedback values : Resistance, Reactance (signed), SWR, Return loss
  • Output connector: SMA female
  • Output power: -10 dBm
  • Power supply: USB or 3V to 48V via power port
  • Operating temperature: 0 to 40°C
  • Interfaces: USB, I2C, SPI, UART
  • Dimensions: 30 x 40 x 4 mm

Use the free Antscope software for PC or Android for additional settings.

More details

69,00 € tax excl.

Out of stock, available in 2 to 3 weeks

Download

Data sheet

Applications :

  • For manufacturers of power equipment in the amateur radio field.
  • For developers and manufacturers of equipment requiring long-distance packet data transmission using different protocols.

To start measuring, all you need is a PC (tablet or smartphone) with the Antscope software installed and a USB cable to connect the VNA ZERO II.

Antscope2 LINUX

Antscope2 MacOS - Flashtool

Antscope2 WINDOWS - Flashtool

Hardware made in Ukraine.
