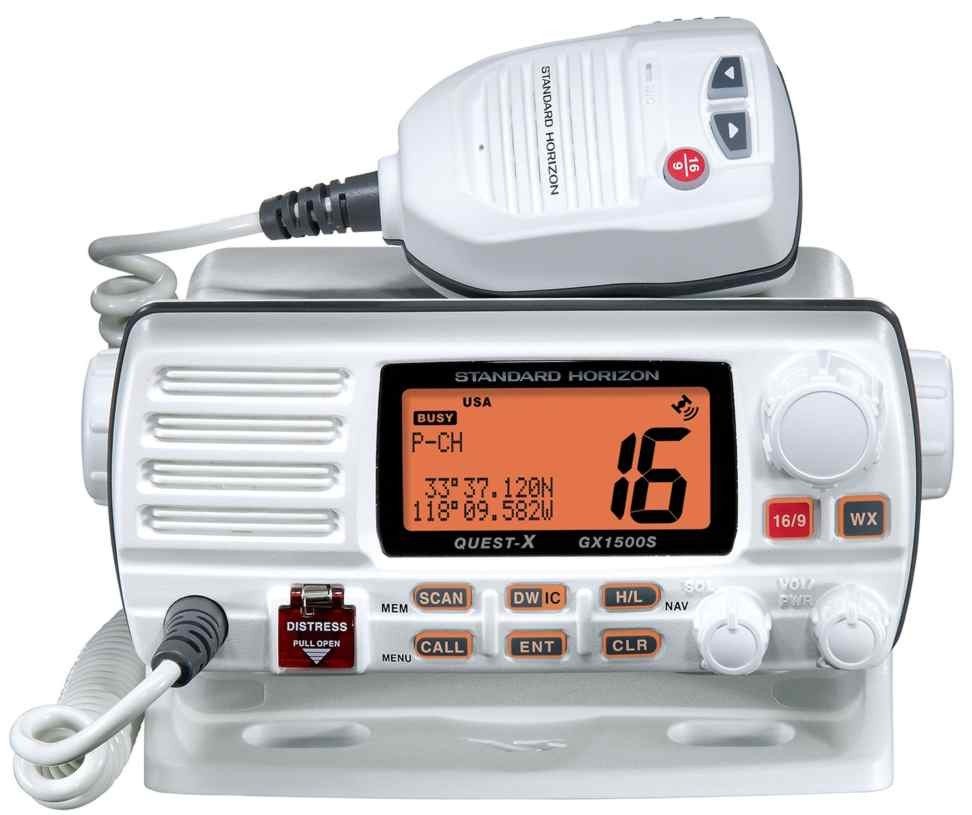

Vertex VHF Marine IP67 with ASN/DSC
No review at the momentThe Vertex Standard Horizon GX1500E is a radio VHF marine designed for use in the VHF frequency range of 156.025 to 163.275 MHz.
The Standard Horizon GX1500E VHF marine radio can be powered from 11 to 16 VDC and provides a switchable output power of 1 watt or 25 watts maximum. The facade of the radio is waterproof IP7.
It has a large backlit LCD display, 70 channels ASN/DSC Class D (EN301-025), a microphone with key channels 16 and 9, dual channel watch, the possibility of a flush mounting and a socket for the addition of a GPS receiver (not included).
Package includes: Radio VHF GX1500E, hand mic, bracket and mounting bracket, power cable, manual (in English).
Download
Data sheet
VHF Marine Standard Horizon features
Receiver 70 channel ASN/DSC
Large LCD display backlit with contrast adjustment
Microphone with key marine channels 16 and 9
Names of the channels as well as GPS information (with a GPS receiver connected)
Large rotary knob for channel selection
Compatible with the DSC and ASN Class-D (EN301-025)
DSC distress call / DSC with automatic sending of the Latitude / Longitude and the identifier ASN / DSC (with a GPS receiver connected)
Latitude/Longitude display and SOG / COG
Access to channels 16 and 9 button
Front meets IPX7 (waterproof)
Programmable scanning, priority channel and dual standby
NMEA input / output to connect a GPS receiver
Marine Dimensions (WxHxD): 180 x 80 x 145 mm
Weight: 1.2 kg (radio marine vhf only)
CE and 1 year warranty
Vertex Standard specifications GX1500E
Marine Channels: All international channels, USA and Canada
Input voltage: 13.8V DC ± 20%
Current Consumption: 0.4A in standby, 1.5A reception s and 5.5A in transmit at 25 watts and 1.5A at low power (1W)
TX frequency range: 156.025MHz to 157.425 MHz
Coverage frequency reception: from 156,050 to 163,275 MHz
Output Power: 25W (High); 1W (low)
Modulation: FM (16K0G3E; 16K0G2B DSC)
Frequency Stability ± 0.0005%
Audio output (speaker): 4.5W
25KHz channel spacing
GPS NMEA input
