> LoRa & IoT>OLED screen LILYGO 0.96" 128x64 OLED display module for T-BEAM and T-SIM
OLED screen LILYGO 0.96" 128x64 OLED display module for T-BEAM and T-SIM View larger
Previous Next

TTGO by LilyGO

TTGO-ECRAN-L206-2417

New product

China

OLED screen LILYGO 0.96" 128x64 OLED display module for T-BEAM and T-SIM

rating No review at the moment

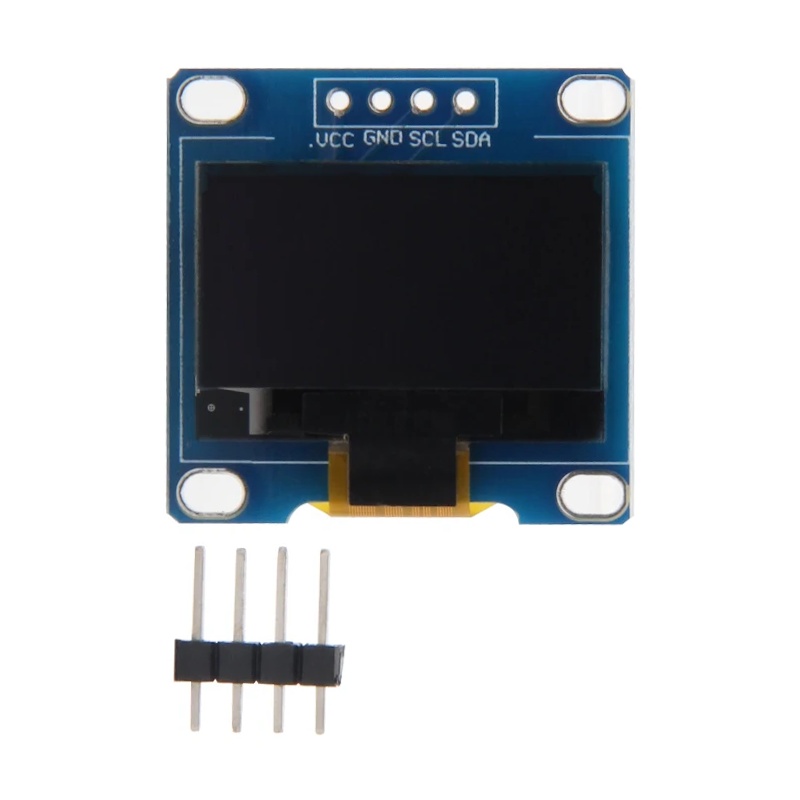

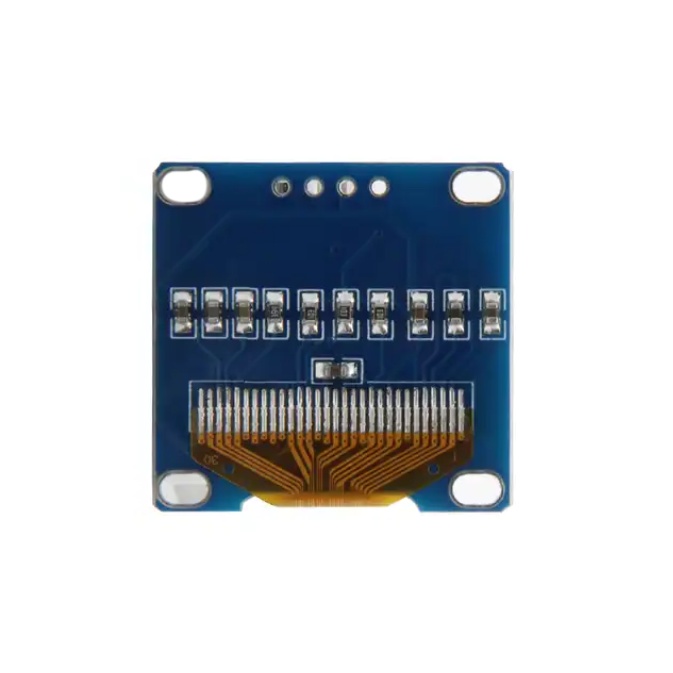

OLED LILYGO screen compatible with TTGO T-BEAM and T-SIM development boards.

  • Screen type: OLED
  • Size: 0.96 inches
  • Resolution: 128*64
  • Colour: White
  • Viewing angle: > 160
  • Driver IC: SSD1306
  • Power supply: 3.3 V ~ 5 V DC
  • Power consumption: 0.04 W
  • Operating temperature : -30°C to 80°C
  • Dimensions: 27 x 27 x 4.1 mm

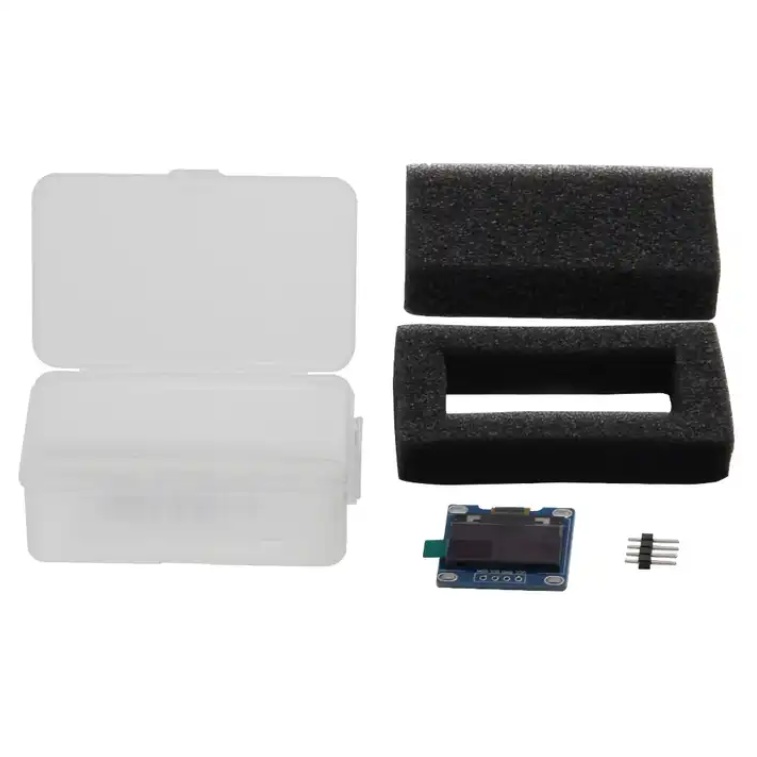

Supplied with: 1 LILYGO display with 4-pin pin.

More details

5,71 € tax excl.

In stock

   1 Item

Data sheet

ChipsetESPRESSIF-ESP32 240MHz
FLASHQSPI flash 4MB
SRAM520 kB SRAM
USB to TTLCP2104
InterfaceUART, SP, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC
DisplayIPS ST7789V 1.14 Inch
Working voltage2.7V-4.2V
Working currentAbout 67MA
Sleep currentAbout 350uA
Working temperature range-40℃ ~ +85℃
Size&Weight51.52*25.04*8.54mm(7.81g)
Power SupplyUSB 5V/1A
Charging current500mA
Battery3.7V lithium battery (not included)
JST Connector2Pin 1.25mm
USBType-C
Standard WI-FIFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC（esp32 chip）
Protocol WI-FI802.11 b/g/n
Frequency range2.4GHz~2.5GHz (2400~2483.5Mhz)
Transmit Power20-22dBm - 100-158mW
Communication distance300m in open space
Protocol BluetoothMeet bluetooth v4.2BR/EDR and BLE standard
SensitivityWith -97dBm
Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
SecurityWPA/WPA2/WPA2-Enterprise/WPS
WIFI EncryptionAES/RSA/ECC/SHA
Firmware upgradeUART download/OTA
Software DevelopmentSupport cloud server development / SDK
Network protocolIPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
OSFreeRTOS

Schema diagram TTGO ESP32 Arduino

module dev esp32 ttgo
