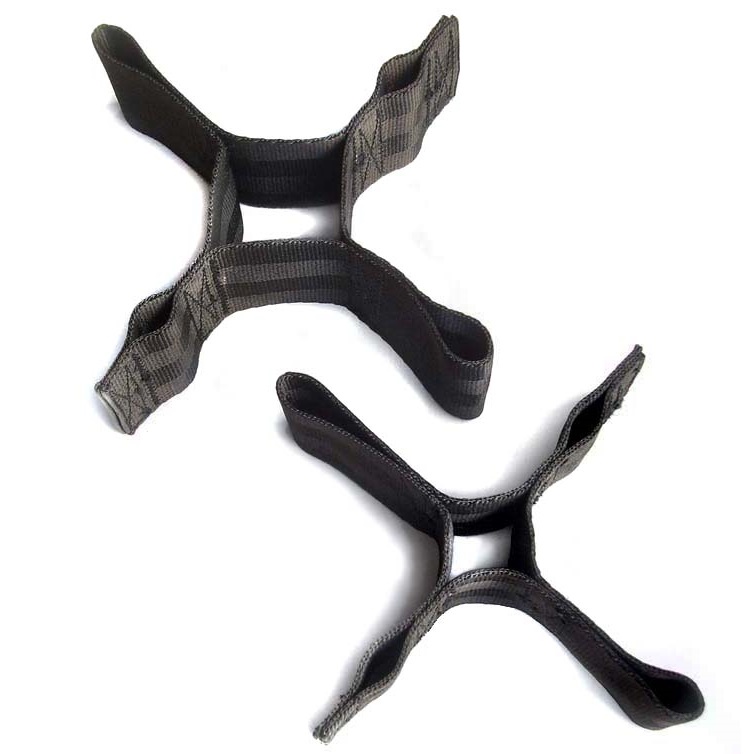

Guy straps for Spiderbeam 18m telescopic mast (set of 2)

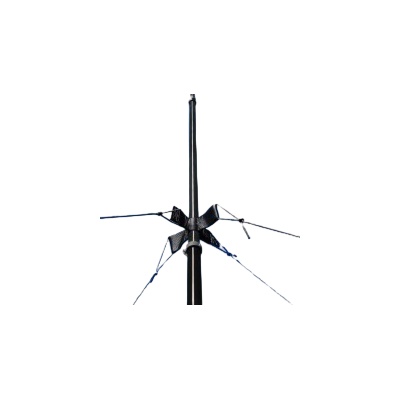

Read the reviewUltra-strong guy straps for Spiderbeam 18m telescopic masts, with attachment points for 3 or 4 guy wires, allowing 90° or 120° orientation and attachment of the guy wires to ground stakes approximately 8 metres from the mast.
It's quick and easy to fit, and distributes forces evenly, protecting the mast from potential damage.
The 52 mm strap rests at the bottom of the 5th segment (= approximately 7 m high).
The 32 mm belt is located at the bottom of the 9th segment (= approx. 13 m high).
Supplied with: 2 Spiderbeam guy straps for 18m mast.
Data sheet
- Fully extracted length (height): 12m*.
- Transport length: 1.18m
- Weight: 3.3kg
- Bottom Diameter: 55m
- Minimum top diameter: 8mm*
- Wall thickness: 1.4mm - 2mm*
- Number of segments: 12
- Material: Black, UV protected fibreglass
- Specially reinforced multi-layer winding
* Due to production variations, the dimensions shown may vary slightly. This does not affect quality or performance.
Unlike the poles offered by most competitors, the top segment of the Spiderbeam is not a very thin and fragile whip. Instead, the mast can be used over its full 7m length, offering great flexibility and optimal height utilisation.
It uses a special reinforcement winding technique, where several layers of fibreglass are wound in an alternating direction (cross-wound), which considerably increases their lateral and linear strength.
The joints between the individual tube segments are also strengthened by a larger than usual overlap.
Unlike other poles where the top segment is very thin like a whip, the top segment of the Spiderbeam Heavy Duty poles has a diameter of 8mm (and a wall thickness of 1.4mm), which allows them to be used over their entire 12m length.
