Othernet Bullseye LNB TCXO ultra stable for Oscar 100 & KU band satellite LNB PLL & DRO QO100-LNB-BULLSEYE-978 View larger

QO100-LNB-BULLSEYE-978

New product

Online only

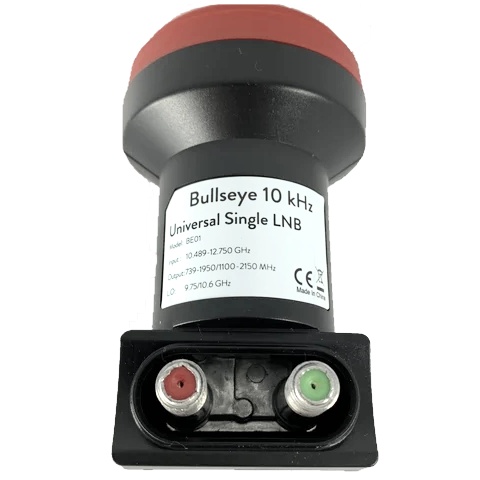

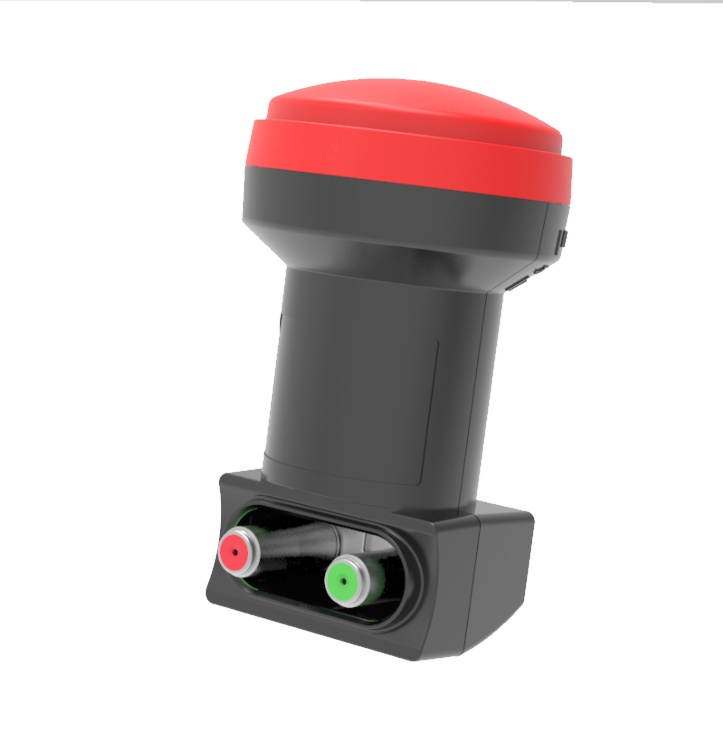

Othernet Bullseye LNB TCXO ultra stable for Oscar 100 & KU band satellite

rating Read the 29 reviews
Average rating: 5/5 Number of reviews: 29

The Othernet Bullseye LNB is a down-converter for reception of the Oscar 100 amateur radio and those in the Ku band. The Bullseye is one of the most stable and precise LNB to date. It does not need to be modified to receive the narrow or wide QO-100 transponder.

Each Bullseye is calibrated at the factory at 1kHz with a spectrum analyzer locked by GPS.

In normal outdoor use (25°C), the frequency offset is less than 10 kHz thanks to its integrated 2ppm TCXO* (see more below) and a 25 Mhz reference.

A second output F (red) is available to benefit from the 25 Mhz reference signal output in order to control another device or to check the stability.

Supplied with: 1 Othernet Bullseye LNB TCXO.

More details

29,90 € tax excl.

In stock

   More than 10 Items

Data sheet

Specification Bullseye LNB PLL TCXO

Reference: Bullseye 10 kHz BE01
LNB type: PLL
PLL: 2 PPM* TCXO 25Mhz
Output 1 (green): 739Mhz for QO-100 use on the primary female F connector (green)
Output 2 (red): 25 MHz on the secondary female F connector (red)
Input frequency: 10489 - 12750 MHz
LO frequency 9750/10600 MHz
LO frequency stability at 23°C: +/- 10 kHz / or +/- 30 kHz
LNB gain: 50 - 66 dB
Output frequency: 739 - 1950 MHz (low band) and 1100 - 2150 (high band)
Return loss: 8dB (739 - 1950 MHz) and 10dB (1100 - 2150 MHz)
Noise factor: 0.5dB
Vertical polarization voltage: 11.5 to 14V
Horizontal polarization voltage: 16 to 19V
LNB support diameter: 40mm
Red cover diameter: 64mm
CE standards, Rohs, FCC
2 years warranty

* The TCXO has an initial offset of 2 ppm, but other variables affect the total offset you can get. There is the stability related to the temperature variation which can add an additional 2 ppm and the TCXO which adds an additional 1 ppm offset per year. For applications that require ultra stability and precision over time, we recommend using a GPSDO instead.
