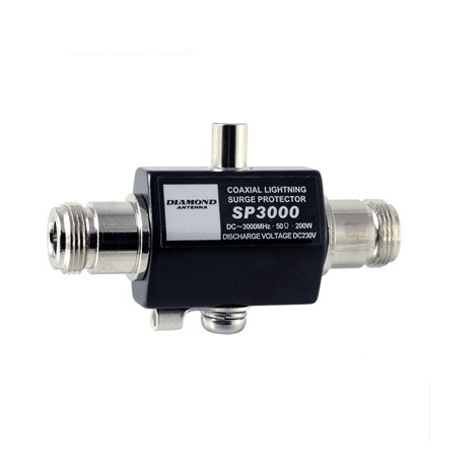

Diamond SP3000 N plug 200W 0-3000MHz surge protector View larger
Diamond Antenna

DIAMOND-SP3000-FOUDRE-1731

New product

Japan

Diamond SP3000 N plug 200W 0-3000MHz surge protector

rating No review at the moment

The Diamond SP3000 lightning arrester operates at frequencies from 0 to 3000 MHz and has a maximum transmit power of 200W, is equipped with an N-plug connector and offers a low insertion loss of -0.2 dB.

This equipment offers protection of the radio equipment in case of lightning strike in the vicinity, but not in case of direct lightning strike on the antenna, in which case a lightning conductor must be installed above the antenna level.

The SP3000 must be earthed, by the shortest route, for safe operation. A stainless steel screw (M4) is available to connect a cable to earth.

It is recommended that a lightning arrestor be placed at both the antenna and the coaxial cable entry to the building.

The SP3000 is not waterproof and must be protected for outdoor use.

Supplied with: 1 SP-3000 Diamond surge protector, original warranty.

More details

26,46 € tax excl.

Out of stock, available within 2 to 3 months

Data sheet

  • Frequency: DC - 3000 MHz
  • SWR: less than 1.1
  • Insertion loss: less than 0.2 dB
  • Maximum power rating: 200w PEP
  • Connector: Type N female - Type N female
  • Pulse wave discharge voltage: 1000v
  • Pulse wave discharge capacity: 6000A
  • Pulse wave retention discharge capacity: DC230v ± 20
  • DC100v insulation resistance: More than 10,000M ohms
