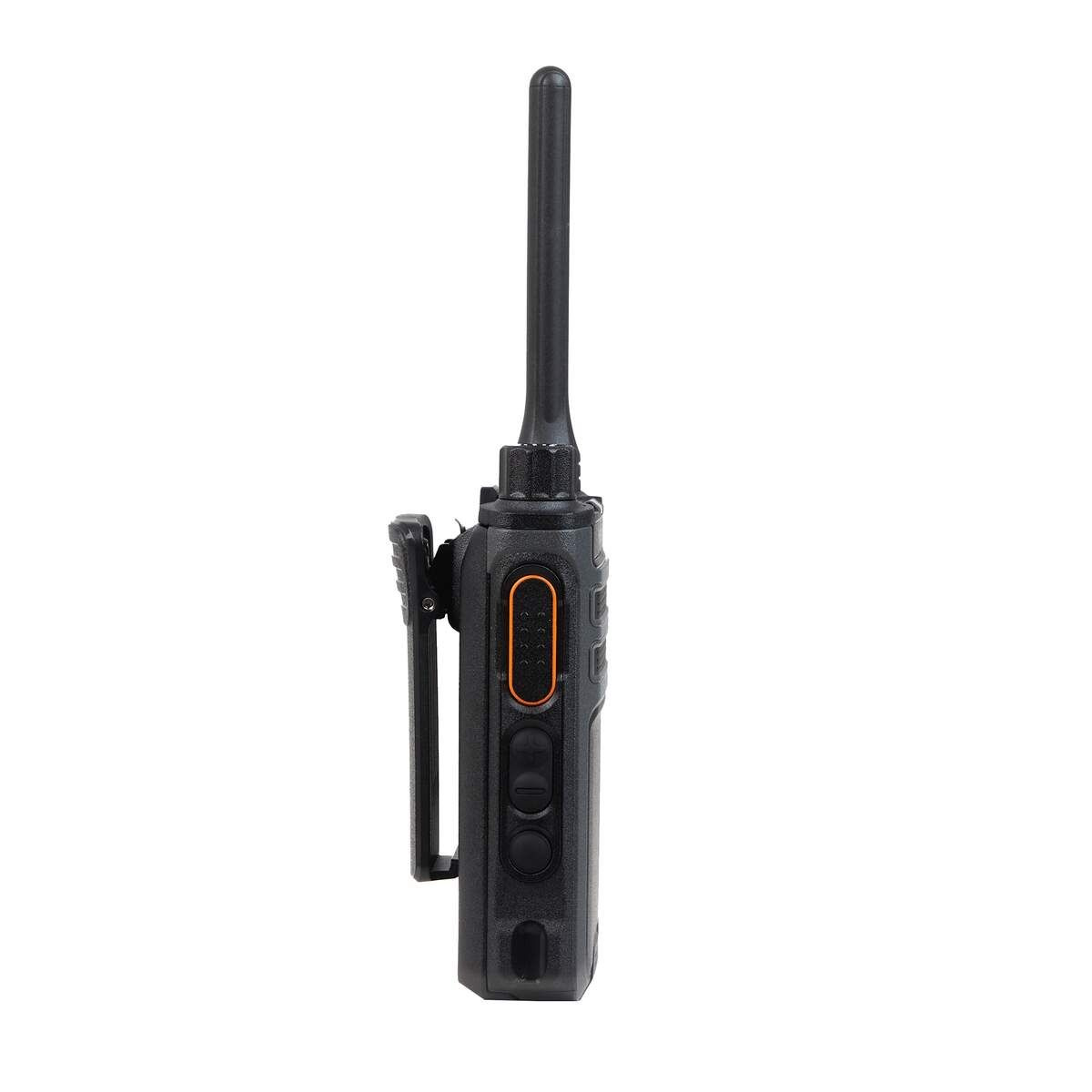

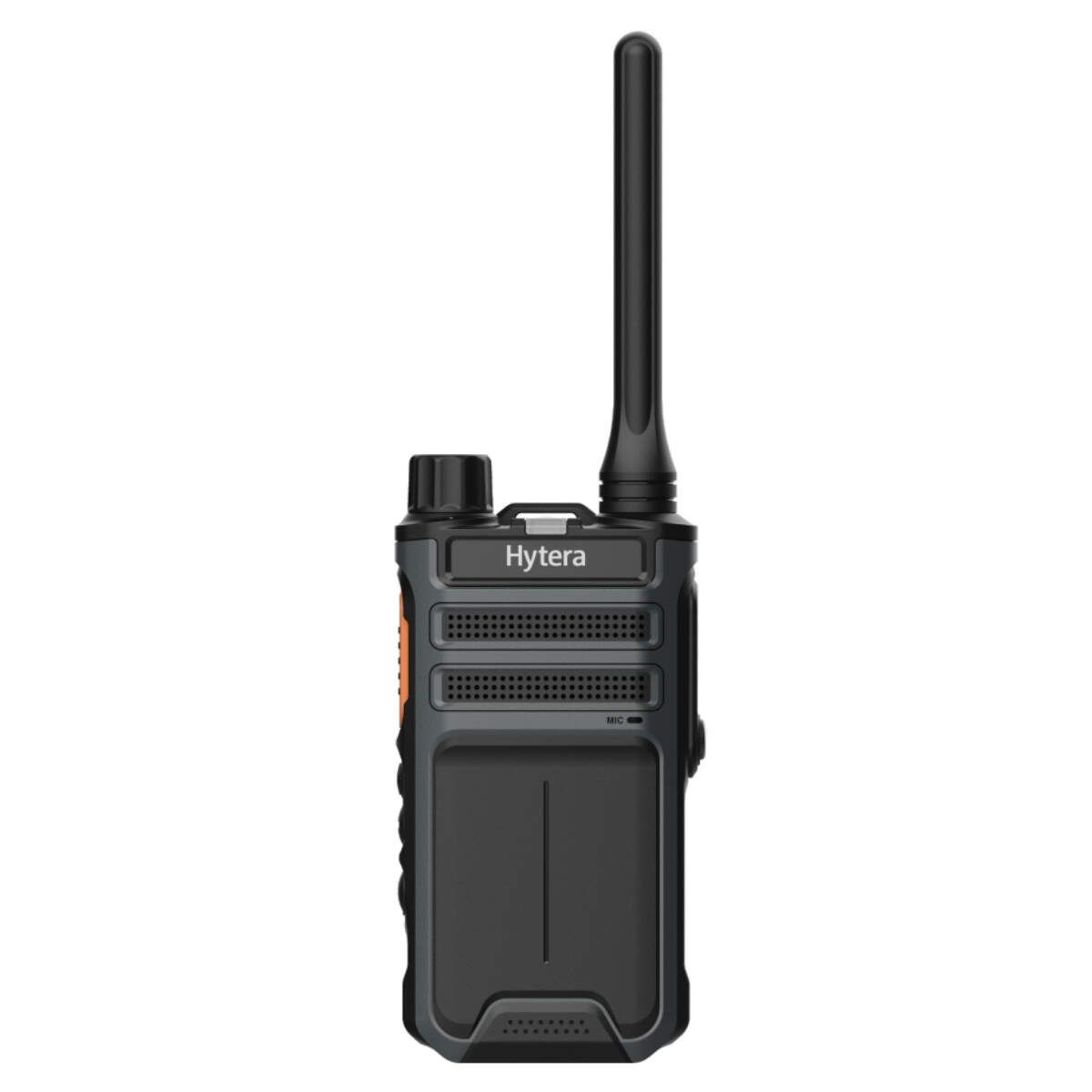

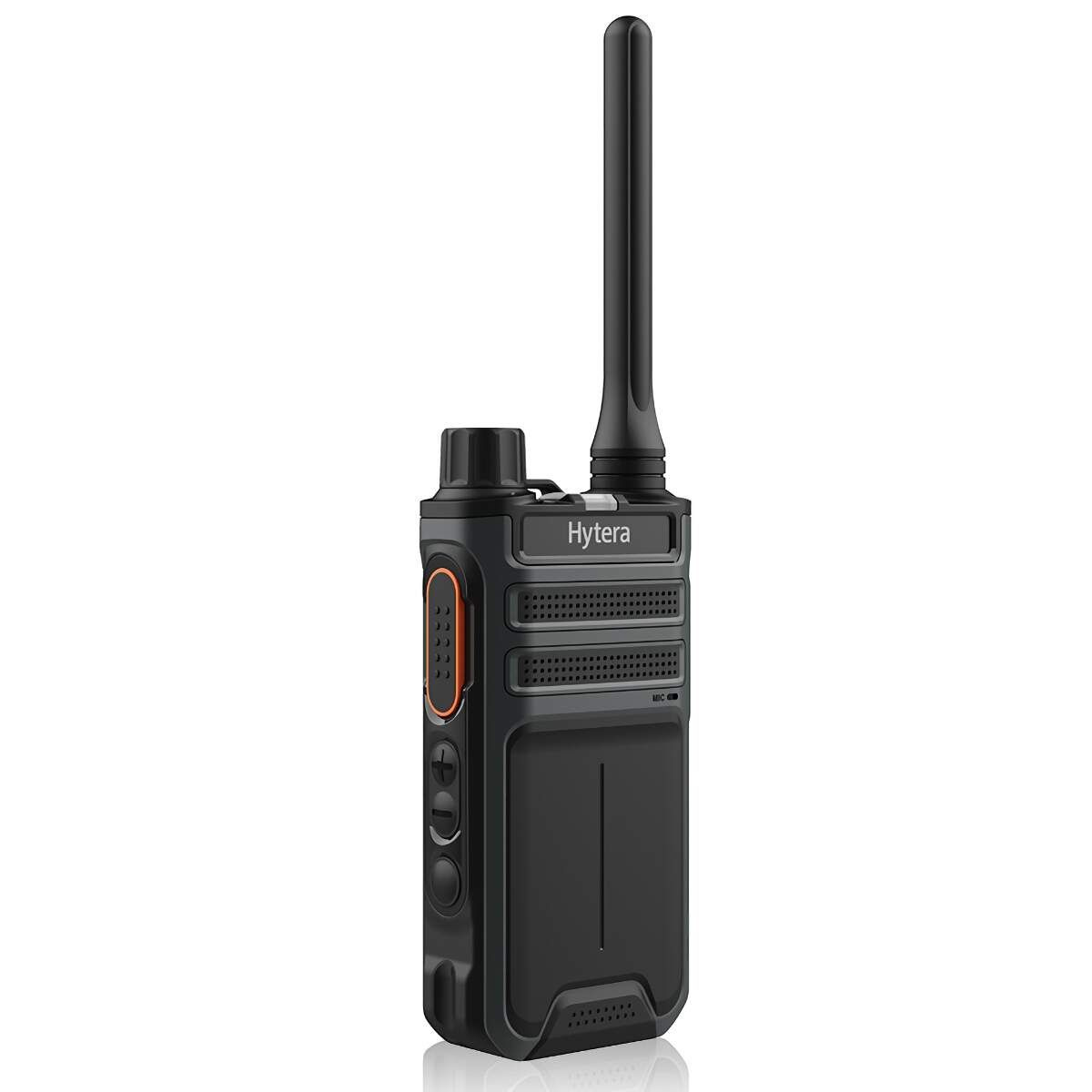

Hytera AP515LF PMR446 32-channel analogue walkie-talkie IP54
No review at the momentThe Hytera AP515LF is a licence-free walkie-talkie, operating on the PMR446 band for free and clear communications.
With 32 channels available, it includes a Vox function for automatic voice activation, and a channel scan to identify active frequencies.
Its 4 cm loudspeaker delivers crystal-clear sound with effective background noise reduction.
The 4000mAh Lithium Ion battery guarantees long use with a fast charge option. Built to last, it has an aluminium chassis and a reinforced polycarbonate shell, meeting MIL-STD810G and IP54 standards.
Supplied complete with: 1x Hytera AP515LF walkie talkie, 1x 4000mAh Li-ion battery, 1x 220v mains adapter, 1x carrying strap and 1x user manual.
Data sheet
Frequency range
446.0 - 446.2 MHz
Operating modes supported
Analogue PMR446
Channels and zones
Channel capacity: 32
Zone capacity: 2
Channels per zone: 16
Channel spacing
12.5 kHz
Operating voltage
3.7 V (nominal)
Battery
4000 mAh / 3.7 V
Battery life (5/5/90 duty cycle, high TX power)
25h
Frequency stability
±0.5ppm
Antenna impedance
50Ω
Dimensions (H x W x D)
105 x 55 x 29.5 mm
Weight (with antenna and battery)
200g
Receiver
Sensitivity
0.18μV (12dB SINAD)
Adjacent channel selectivity
TIA-603 : 60dB@12.5kHz
ETSI: 60dB@12.5kHz
Intermodulation
TIA-603: 70dB@12.5kHz
ETSI: 65dB@12.5kHz
Spurious Response Rejection
TIA-603 : 70dB@12.5kHz
ETSI : 70dB@12.5kHz
Blocking
TIA-603: 80dB; ETSI: 84dB
Hum and noise
40dB@12.5kHz
Nominal audio output power
0.5W
Nominal audio distortion
≤3%
Audio response
+1~-3dB
Conducted emissions
<-57dBm
Transmitter
RF output power
UHF: 0.5W
FM modulation
-36dBm＜1GHz; -30dBm＞1GHz
Modulation limitation
±2.5kHz@12.5kHz
FM Hum & Noise
40dB@12.5kHz
Adjacent channel power
60dB@12.5kHz
Audio response
+1 to -3dB
Audio distortion
≤3%
Environment
Operating temperature range
-30℃ à +60℃
(-30℃* Radio only - Battery -20℃)
Storage temperature
-40℃ à +85℃
ESD
IEC 61000-4-2 (level 4)
±8kV (contact); ±15kV (air)
Dust and water intrusion
IEC 60529 IP54
Humidity
MIL-STD-810 H
Shock and vibration
MIL-STD-810 H
