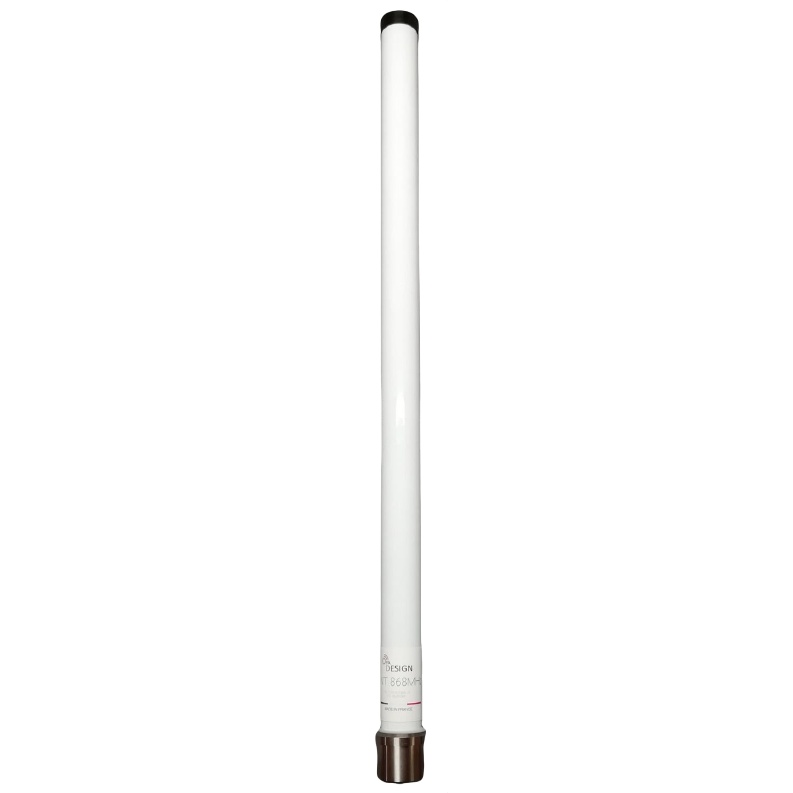

868 MHz 4.4dBi tuned antenna for ISM 868 LoRa Helium Meshtastic network
Read the reviewThis antenna is specially designed to improve the performance of ISB band 868 MHz devices.
It is tuned for 868 MHz frequencies, with a SWR of less than 1.2, which allows it to use almost the entire transmitted power, with a real gain of 4.4dBi (2.25dB), while non-tuned wideband antennas will lose a more or less important part of the transmitted power, due to a too high SWR.
The polarization of the antenna is vertical and the radiation omnidirectional, the connector is N female (take a cable or an adapter with N male connector to be compatible).

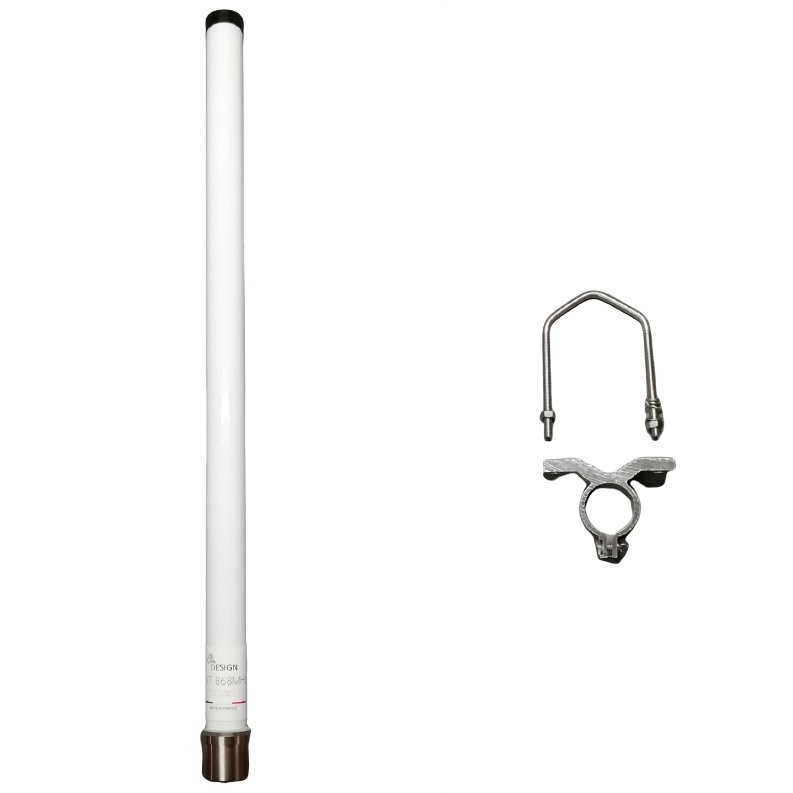

The mounting with the mast support integrated in the antenna and the supplied brackets, also facilitates the mounting and stability of the antenna on a mast to be used with a diameter of 35-70mm.
Supplied with: 1x 868 MHz OPA Design antenna, with mounting bracket supplied.
Optional: Add SAW 868 MHz bandpass filter, to suppress out of band emissions and increase the number quality reception, especially if you are in a "noisy" environment.
Download
Data sheet
- Frequency: 868 to 870 MHz
- Band: Helium, LoRa (Lorawan), Sigfox, helium, Meshtastic, Zigbee networks

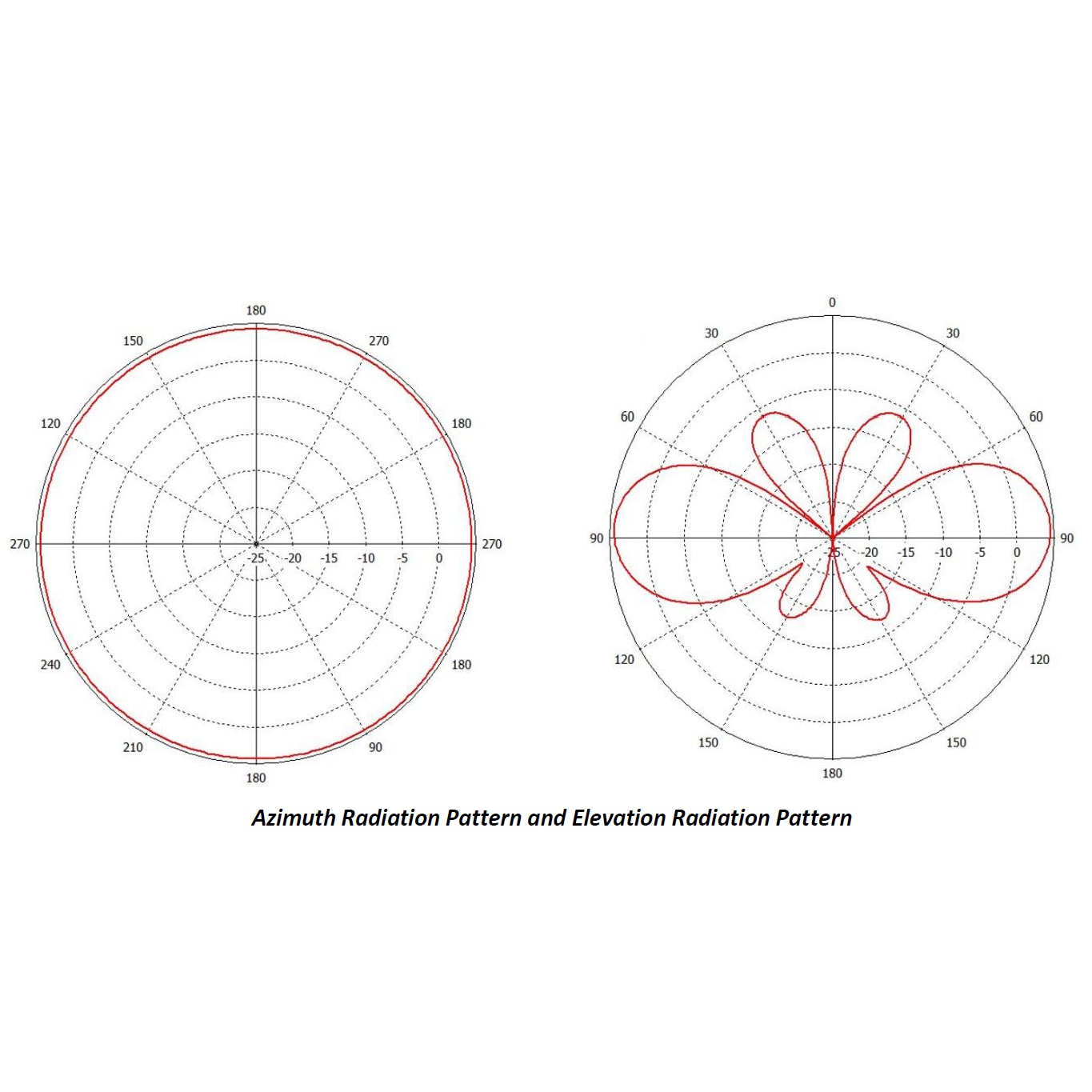

- Polarization Type: Vertical
- Antenna type : Colinear 2 coupled elements
- UV resistant fiberglass radome
- Diameter: 26mm
- Color: White

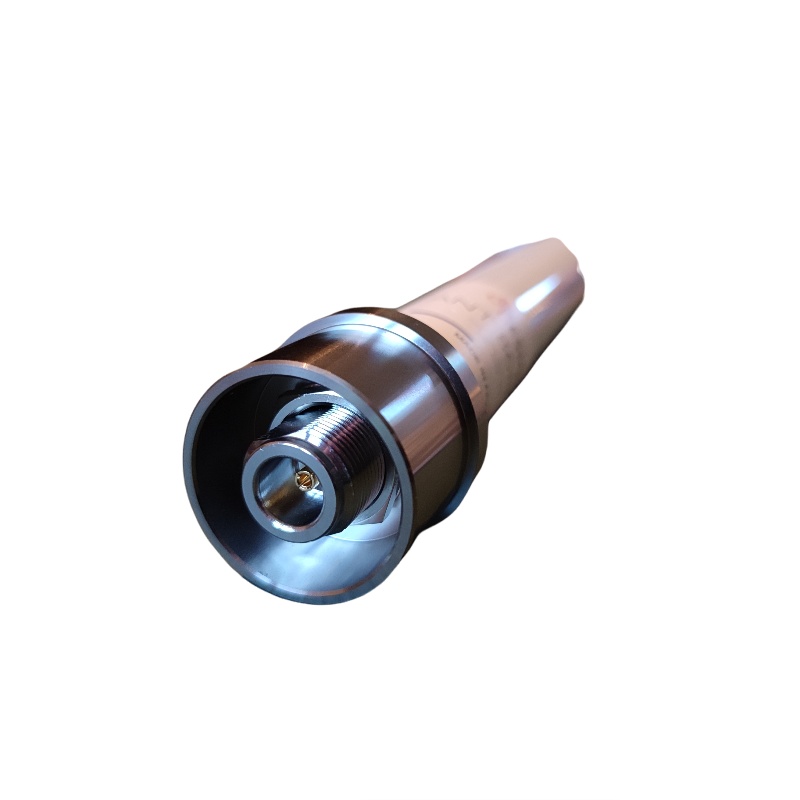

- Connector: N female
- Gain: 4.4 dBi (2.25dB)

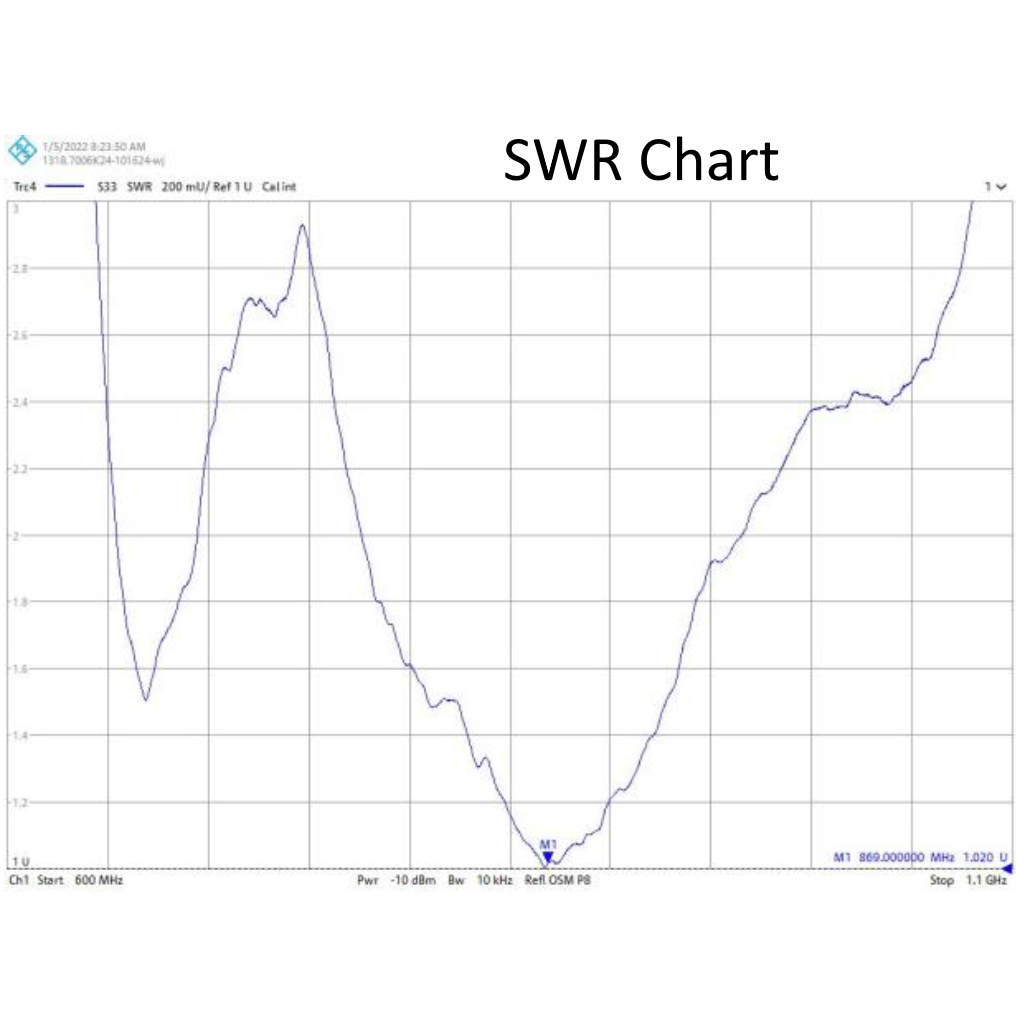

- SWR: ≤1.2
- Impedance: 50 Ohms
- Maximum power: 10W (40dBm)
- Dimensions: 52.5cm long
- Diameter of the tube at the base: 32mm
- Installation type: 35-70mm diameter mast (with supplied bracket)

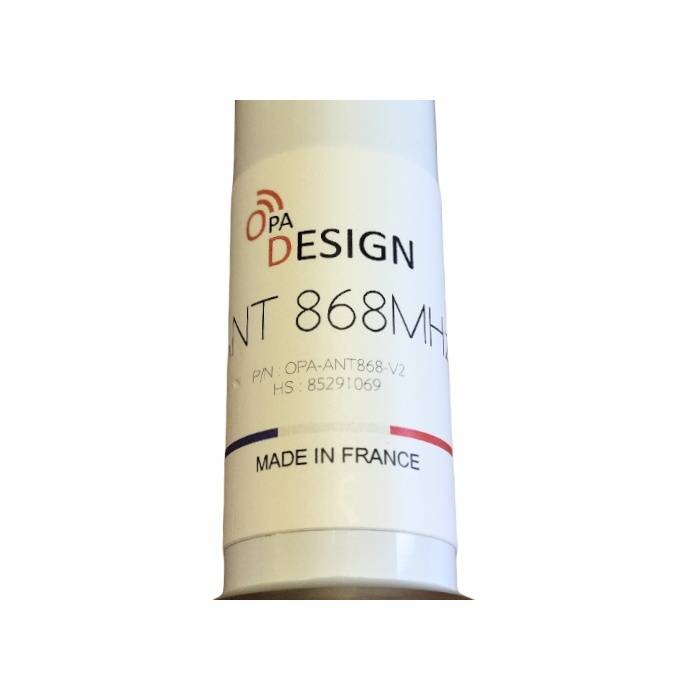

- Made in France
- 2 years warranty
