Digirig cable for Xiegu G90 G106 & X5105 View larger

digirig

DIGIRIG-G90MOBILE-2933

New product

Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

Digirig cable for Xiegu G90 G106 & X5105

rating No review at the moment

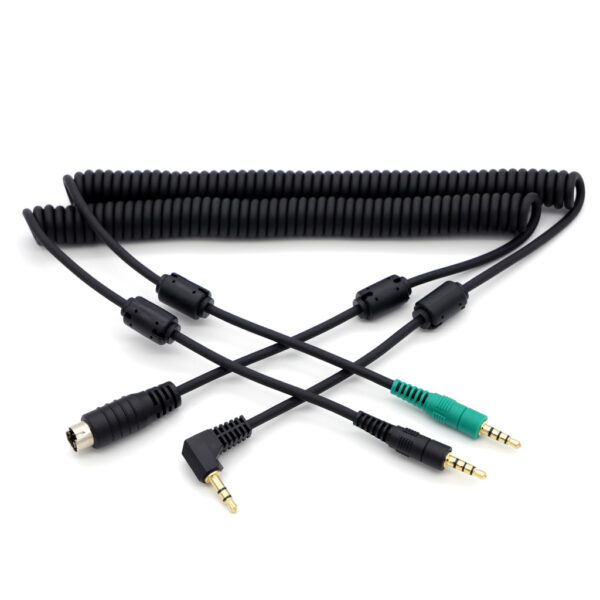

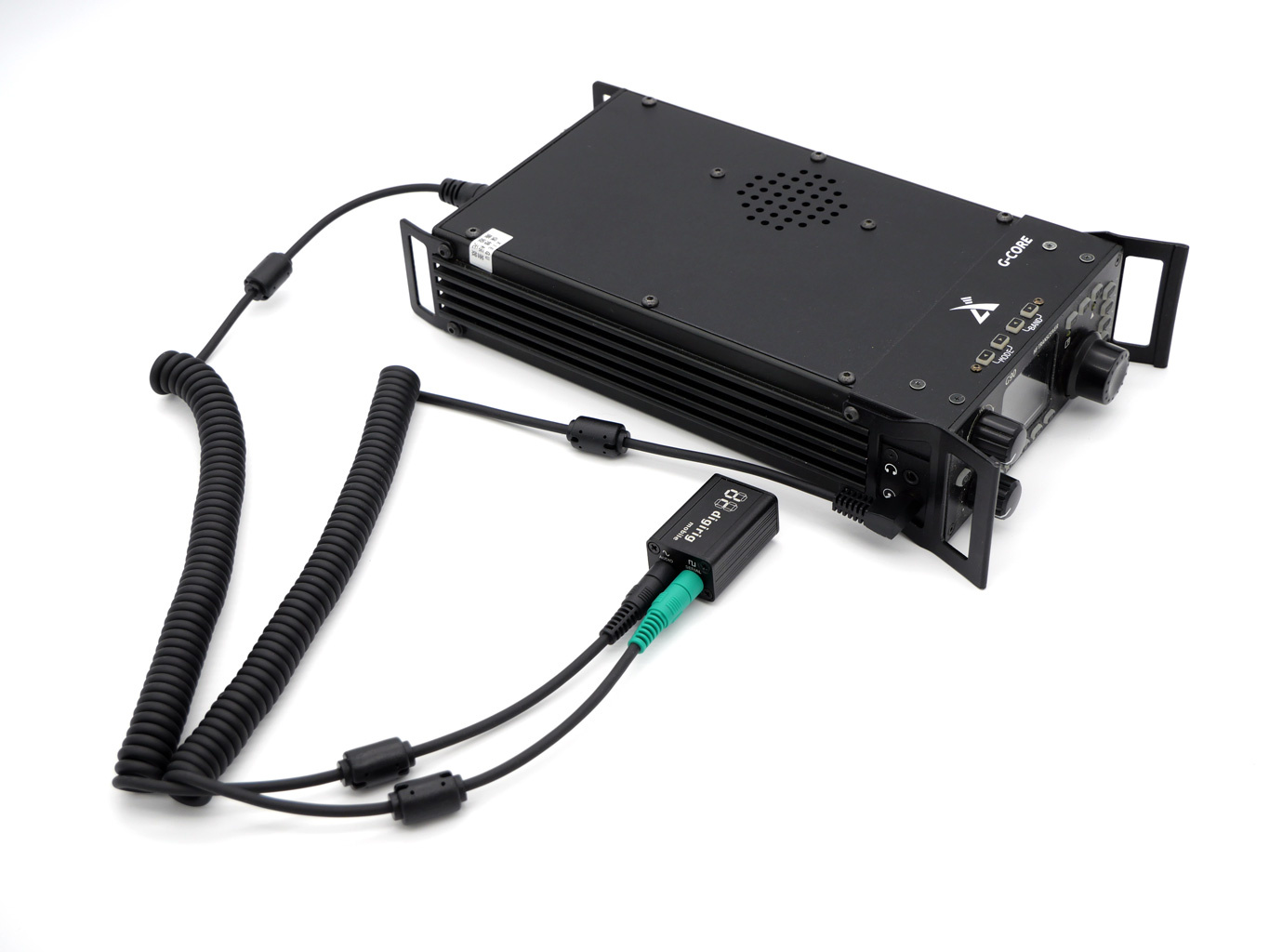

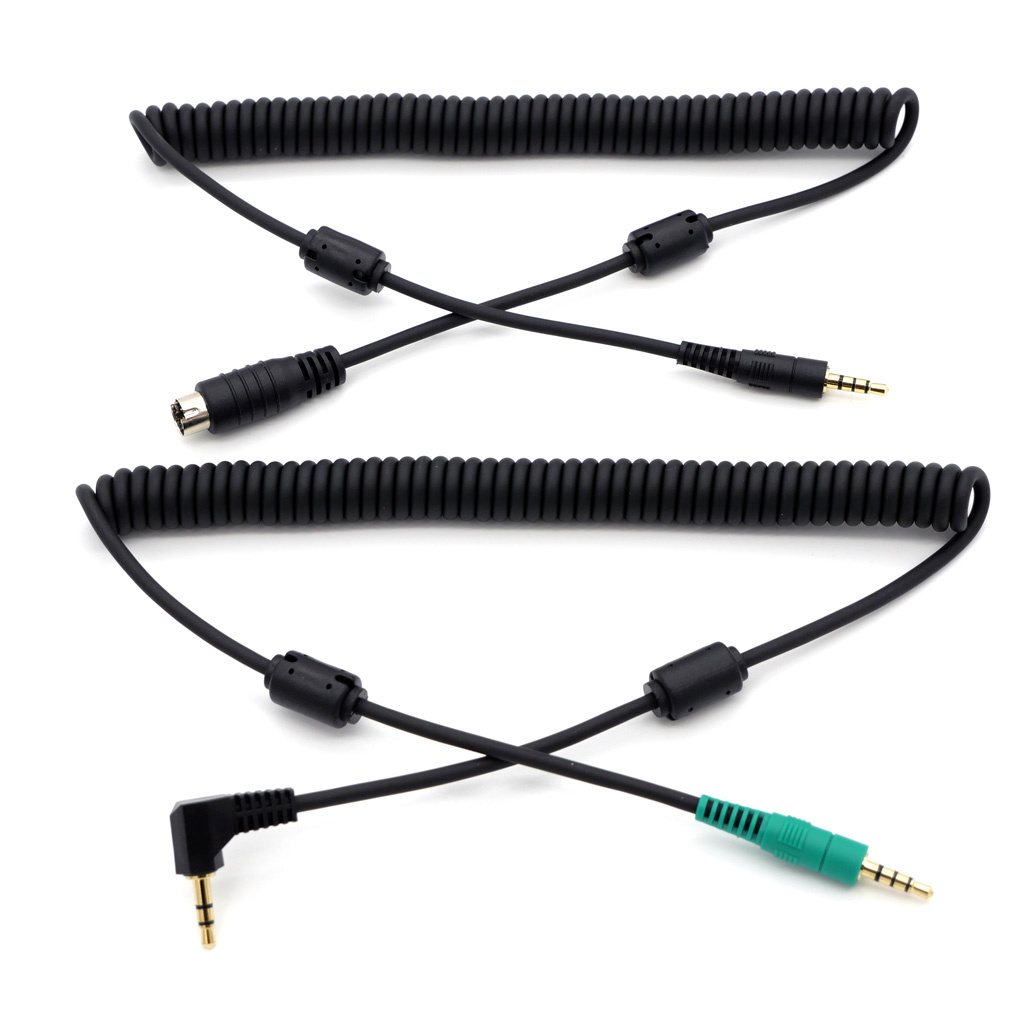

Complete set of Digirig Mobile transceiver cables for Xiegu radios.

  • Cables work for Xiegu G90, Xiegu X5105 and Xiegu G106

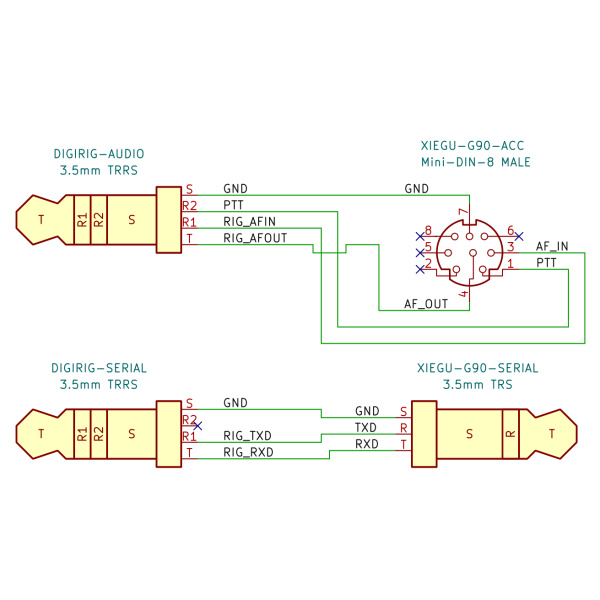

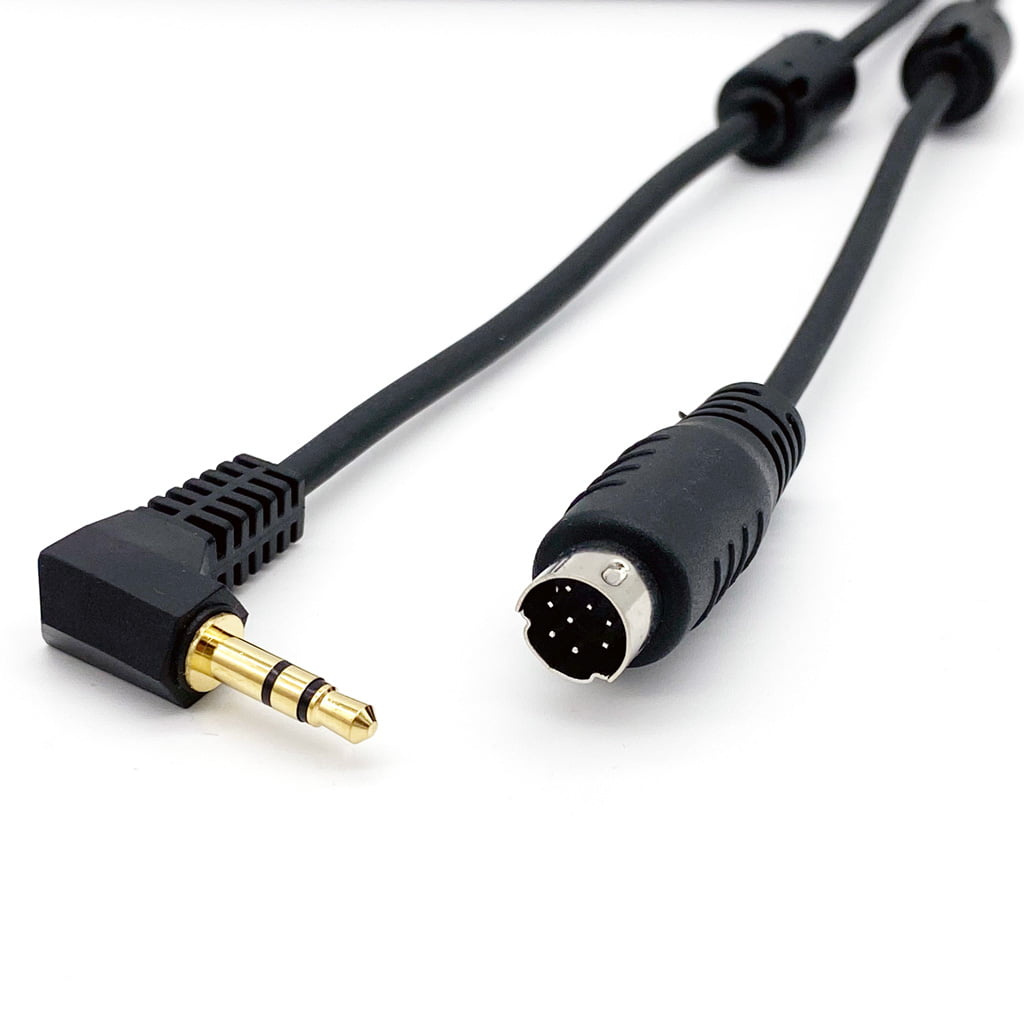

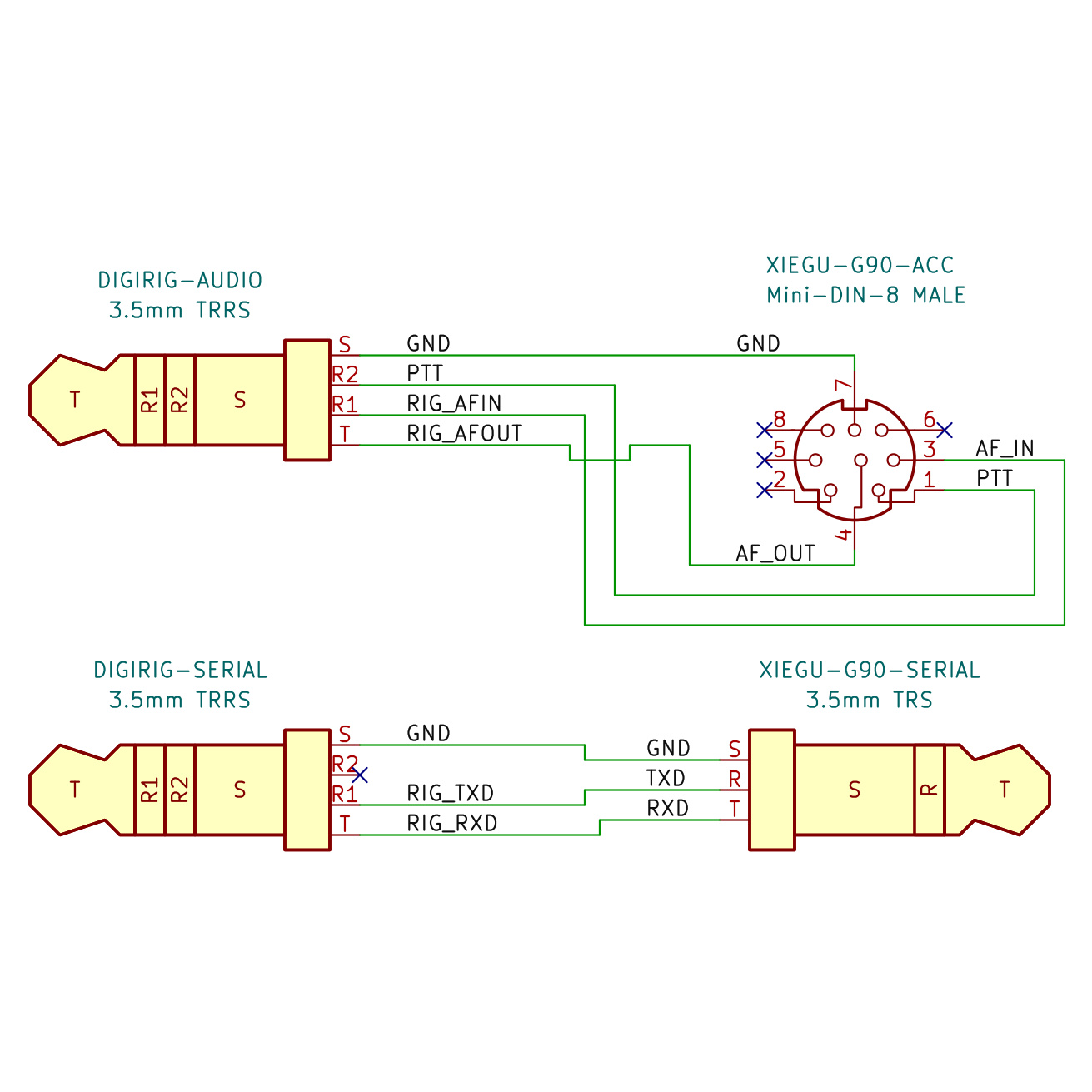

  • one CAT serial cable (3.5mm TRS) and one Audio+PTT cable (Mini Din-8)
  • coiled cable keeps things neat and tidy, avoiding knots and kinks
  • approx. 60cm loose, 183cm fully extended
  • shielded and RF insulated with ferrite rings at both ends to avoid radio frequency interference (RFI)
  • top quality materials and craftsmanship

The cables in this list use TRRS connections for Digirig revision 1.6 or later. Xiegu transceivers use logic levels for serial CAT control and programming functions.

Note: The Xiegu X6100 has an internal sound card and USB serial bridge. No external interface is required for this transceiver.

37,90 € tax excl.

Out of stock

Availability date: 2024-11-19
