Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

Digirig GX16 cable for Kenwood Alinco with 3.5 mm TRS jack & 8-pin microphone

rating No review at the moment

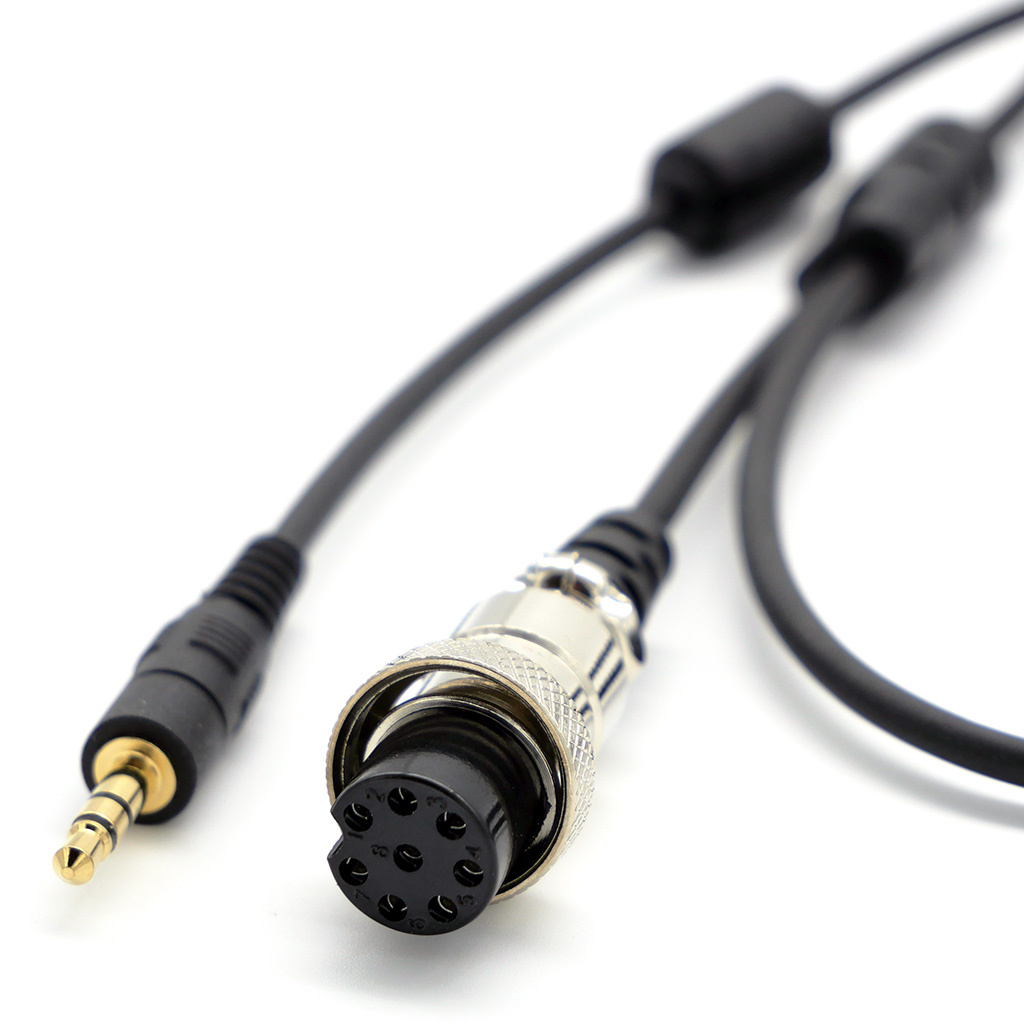

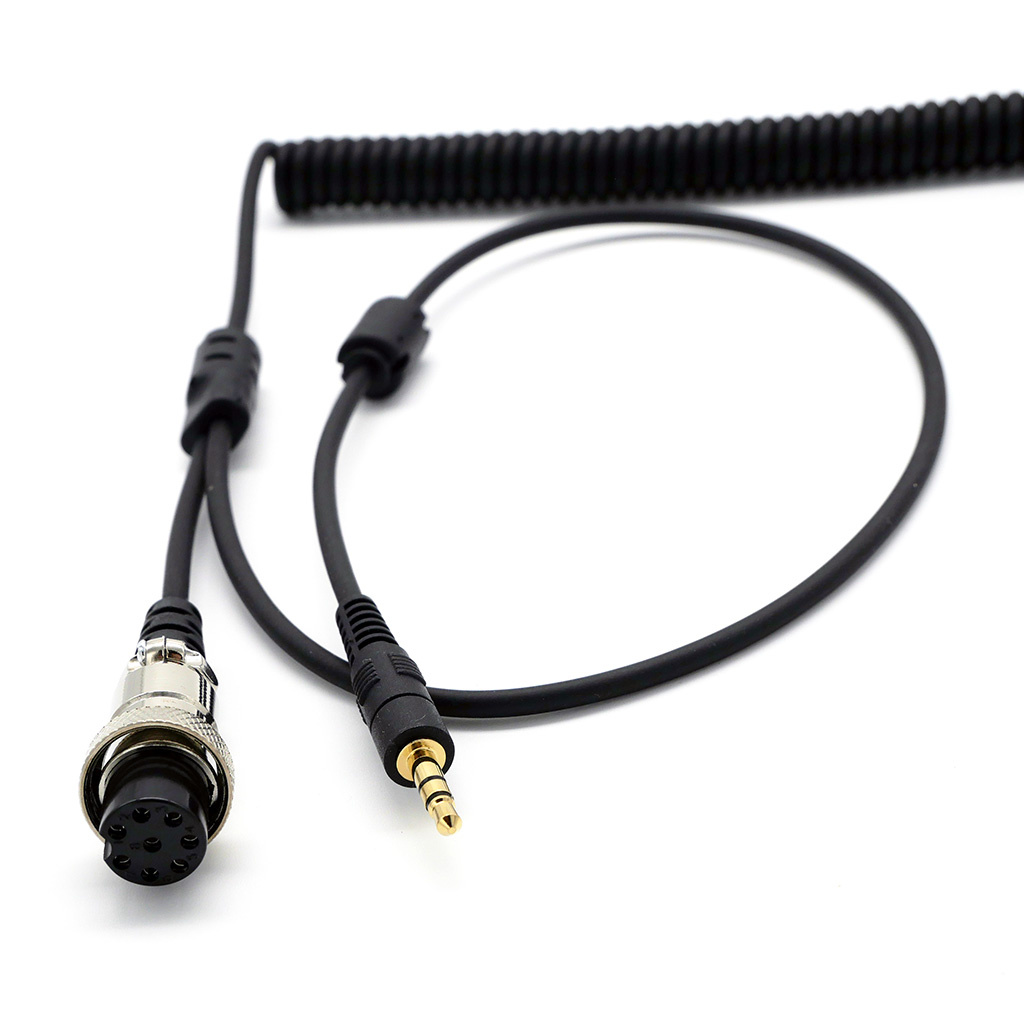

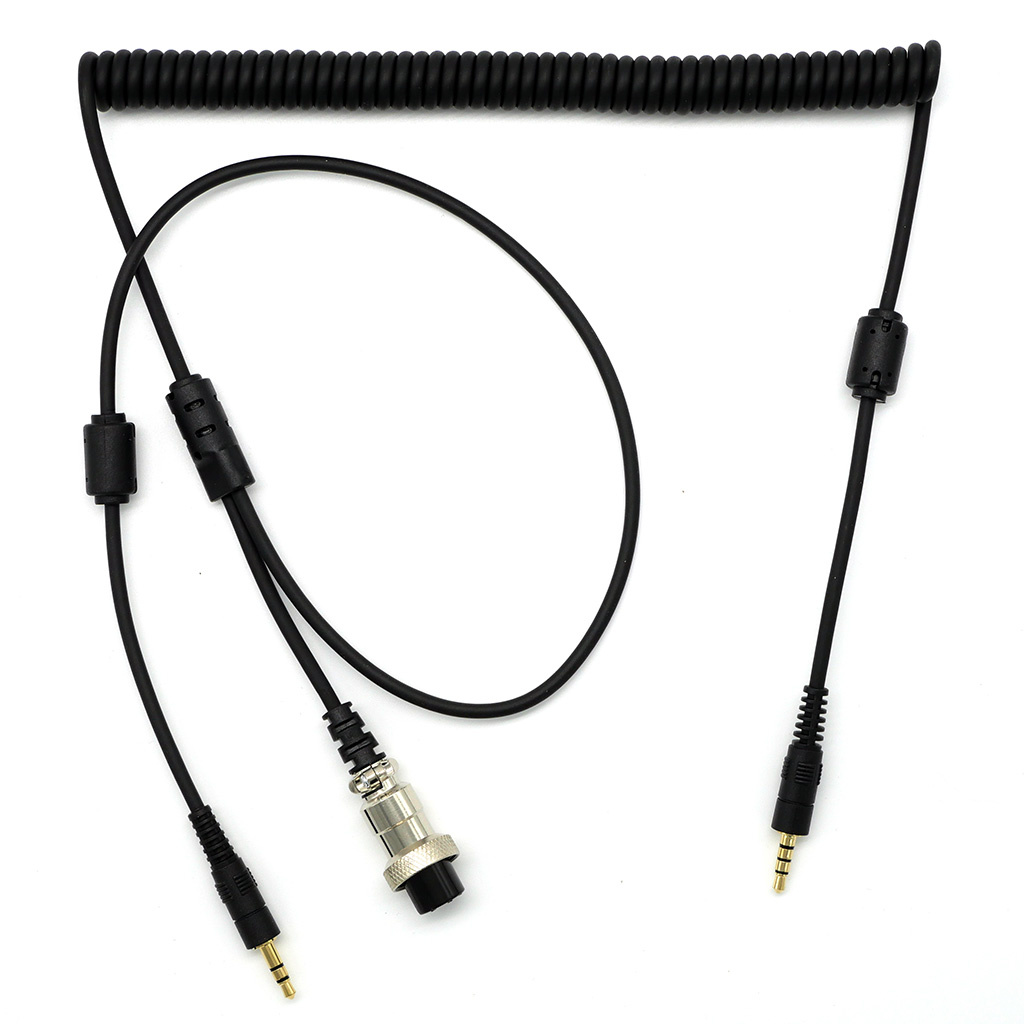

Digirig Mobile 1.6+ cables for Kenwood, Alinco and other transceivers using the standard 8-pin GX16 microphone connector with earthed centre pin or 3.5mm TRS jack.

  • Provides audio input, audio output and PTT control
  • Approx. 60cm extended, 183cm fully extended
  • Shielded and RF-isolated with ferrites at both ends to prevent radio frequency interference (RFI)
  • High quality materials

This cable requires Digirig Mobile Revision 1.6 in all configurations.

More details

37,90 € tax excl.

Out of stock

Availability date: 2024-11-19

Data sheet

The GX-16 microphone connector is common in amateur radio, with different brands using different pinouts. The cable in this list uses the following pinout:

- pin 1 - MIC
- pin 2 - PTT
- pin 6 - SPK (optional)
- pin 7 - GND
- pin 8 - GND

You can confirm compatibility by checking continuity between the centre pin (#8) and the radio chassis.

The pinout and construction of this cable is discussed in the community forum.

Compatible with :

ADI AR-146, ADI AR-147, ADI AR-247, ADI AR-446, ADI AR-447

Alinco 70T, ALD-24T, ALR-22H, ALR-22HT, ALR-22T, ALR-72T, ARL-72T, DMR-610 ADI AR-146, DR-03T, DR-06T, DR-110, DR-110T, DR-112, DR-112T, DR-119, DR-1200, DR-130T, DR-135, DR-135E, DR-135LH, DR-135T, DR-150, DR-150E, DR-150TE, DR-235, DR-235T, DR-330, DR-410, DR-430, DR-430T, DR-435, DR-435E, DR-435T, DR-510, DR-510T, DR-570, DR-570T, DR-590, DR-590T, DR-592T, DR-599T, DR-600T, DR-610, DR-610E, DR-610T, DR-620, DR-620E, DR-620T, DR-635, DR-638HE, DR-M03R, DR-M06R, DRM-03, DRM-06, DX-70, DX-701, DX-707, DX-70EH, DX-70T, DX-70TH, DX-77, DX-SR8E, DX-SR8T, DX-SR9

FLEX-5000, Elecraft K2, Elecraft K3, Elecraft K3/0-Mini, Elecraft K3/S

JRC JST-135, JRC JST-145, JRC JST-245

Kenwood TM-201, TM-201A, TM-201B, TM-211, TM-221, TM-231, TM-241, TM-241A, TM-2530, TM-2550, TM-2570, TM-321, TM-3231, TM-331, TM-3530, TM-401, TM-401A, TM-401B, TM-421, TM-431, TM-441, TM-521, TM-531, TM-541, TM-621, TM-631, TM-701, TM-721, TM-731, TR-3200, TR-50, TR-751, TR-7900, TR-851, TS-140, TS-140S, TS-2000, TS-2000x, TS-430, TS-440, TS-440SAT, TS-450, TS-50, TS-570, TS-570d, TS-570DG, TS-570S, TS-570SG, TS-590S, TS-590SG, TS-60, TS-660, TS-670, TS-680, TS-680S, TS-690, TS-701, TS-711, TS-780, TS-790, TS-811, TS-850, TS-870, TS-930, TS-940, TS-950, TS-990, TW-4000, TW-4100

Retevis SGC-2020, SGC SG-2020
