New USB CAT & PTT Control Interface Digirig DR-891 for YAESU FT-891 View larger
Previous Next

digirig

DIGIRIG-DR891-2952

New product

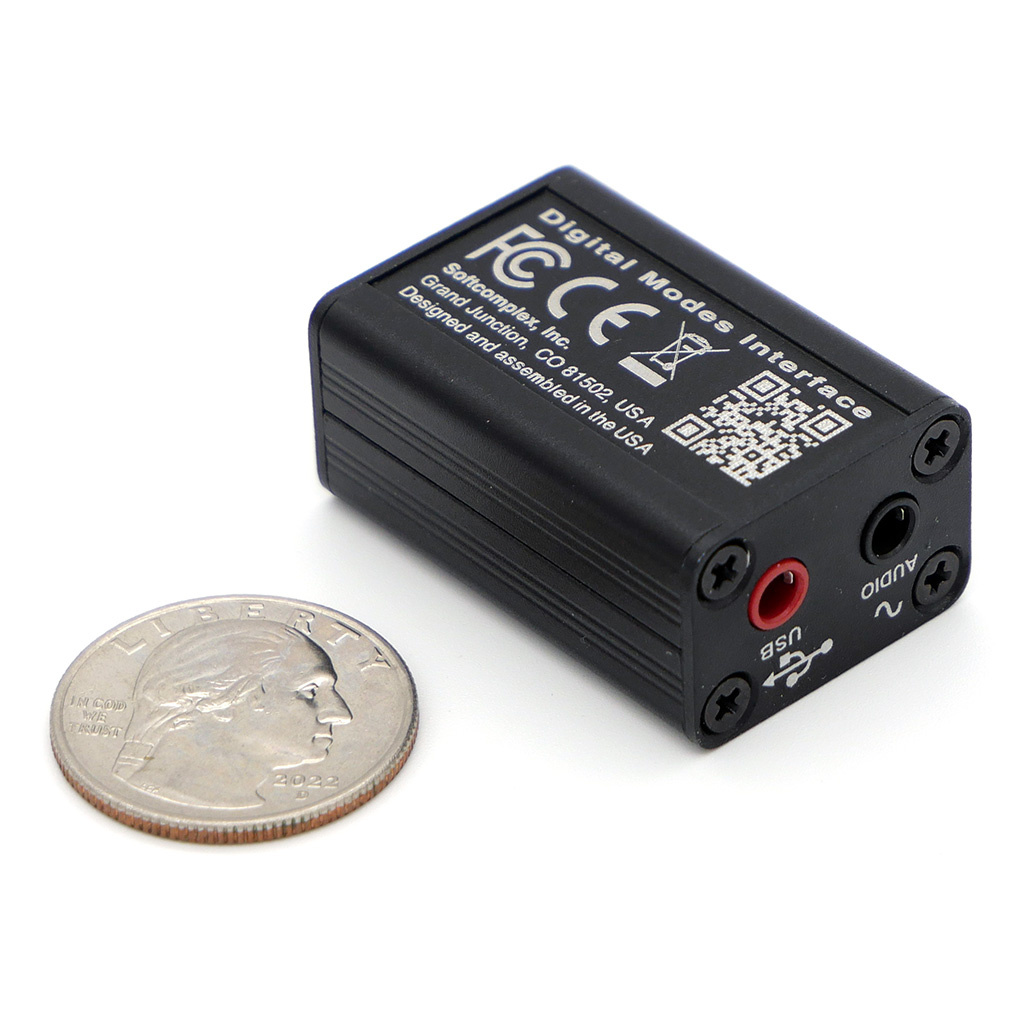

Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

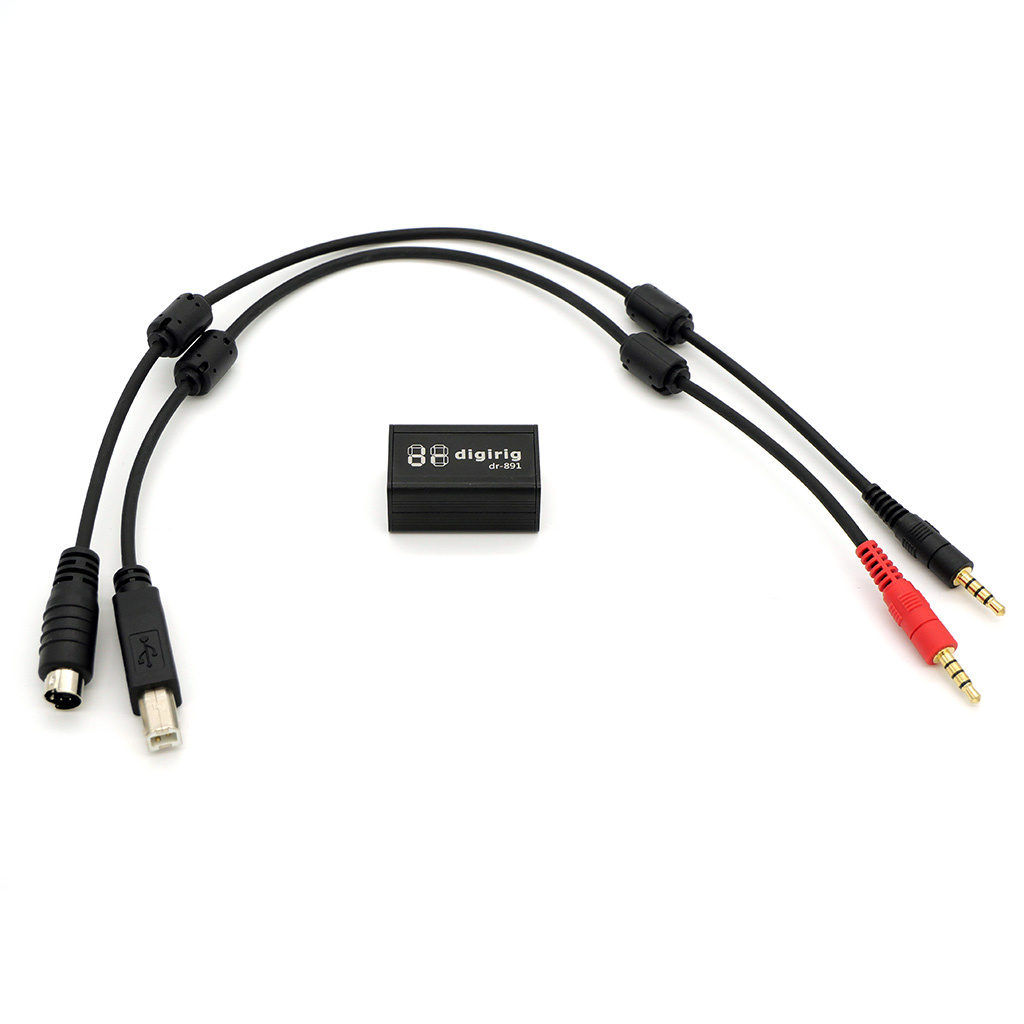

USB CAT & PTT Control Interface Digirig DR-891 for YAESU FT-891

rating No review at the moment

This version of the Digirig CAT, audio and PTT control interface is dedicated specifically to the Yaesu FT-891, but can be used with other models of transceivers if only the audio/PTT cable is connected. Do not plug anything else into the coloured Digirig socket other than the red moulded cable included in this kit.

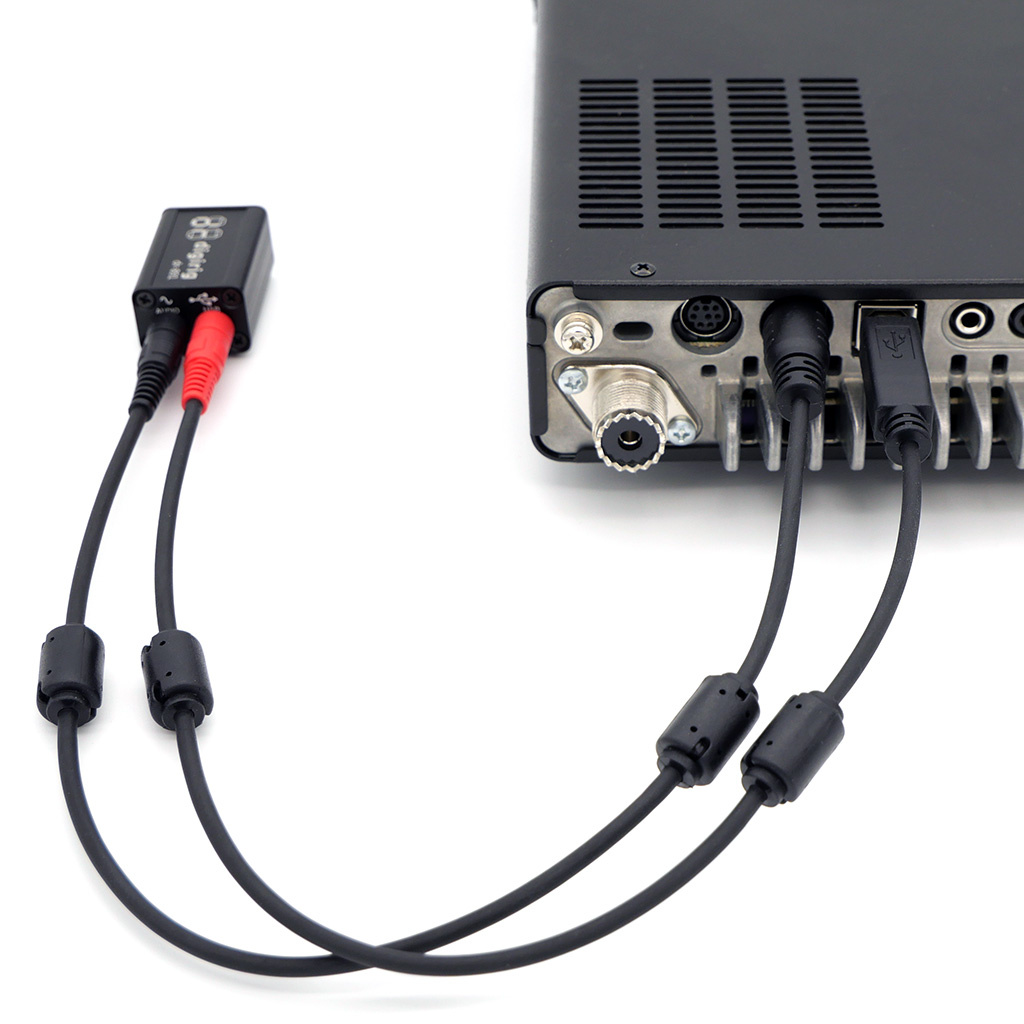

  • Allows full connectivity of your Yaesu FT-891 (audio, PTT, CAT) over a single USB connection.
  • Combines the USB hub with the FT-891's USB port, audio codec and PTT circuitry.
  • Supports PTT via CAT serial control.
  • Supports PTT via the GPIO3 of the CM108 audio codec.
  • Supports VOX PTT via tone or payload on the unused right channel.
  • Individual PTT methods can be disabled using the configuration pads on the PCB.
  • Works with all major operating systems: Windows, MacOS and Linux, Android, iOS.
  • The TRRS audio/PTT socket (black) is compatible with existing Digirig audio cables.

Usable from computers, smartphones and Android or iOS tablets, with USB-C socket

More details

99,00 € tax excl.

Out of stock

Availability date: 2024-11-18

Data sheet

This version of Digirig can be used with other transceiver models if only audio/PTT cable is connected. Do not plug anything into Digirig’s colored socket other than the cable with the red molding included in this kit.

  • Supports complete connectivity of your Yaesu FT-891 (audio, PTT, CAT) over a single USB connection.
  • Combines USB hub with passthrough to FT-891’s USB port, audio codec and PTT circuitry.
  • Supports PTT via serial CAT control.
  • Supports PTT by GPIO3 of CM108 audio codec.
  • Supports VOX PTT by the tone or payload on the unused right channel.
  • Individual PTT methods can be disabled with the configuration pads on the PCB.
  • Works with all major OS flavors: Windows, MacOS and Linux, Android, iOS.
  • Audio/PTT (black) TRRS socket is compatible with existing Digirig audio cables.
  • Isolation can be easily added using inexpensive USB isolator dongle.

Digirig DR-891 Setup Manual
