Cable Digirig DATA & programming for walkie-talkie Baofeng Kenwood Anytone TYT Wouxun with 2 pins K1

rating No review at the moment

Digirig Mobile 1.6+ cables for walkie-talkies with a standard Kenwood (K1) connector, such as the brands: Baofeng, Anytone, Wouxun, TYT, Kenwood.

  • Compatible with popular walkie-talkies fitted with a K1 connector (TRS 3.5 mm and 2.5 mm connectors).
  • Data cable supports digital and digimode modes such as FT8, FT4, SSTV, APRS, Echolink, Allstar, etc.
  • Ideal for working with satellites (e.g. APRS and SSTV)

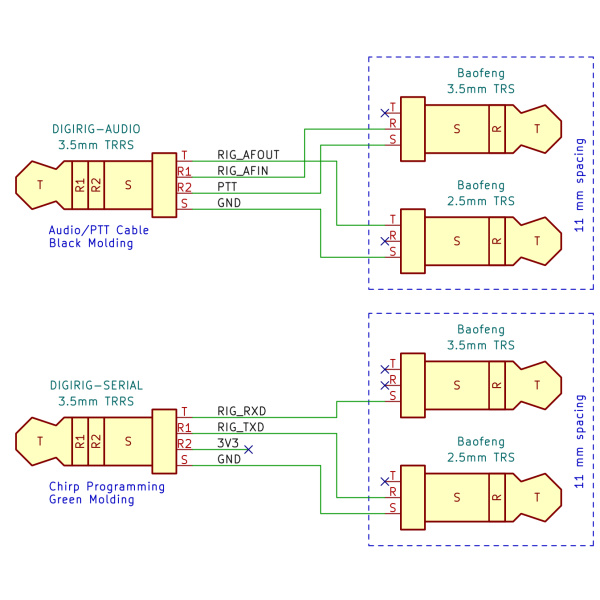

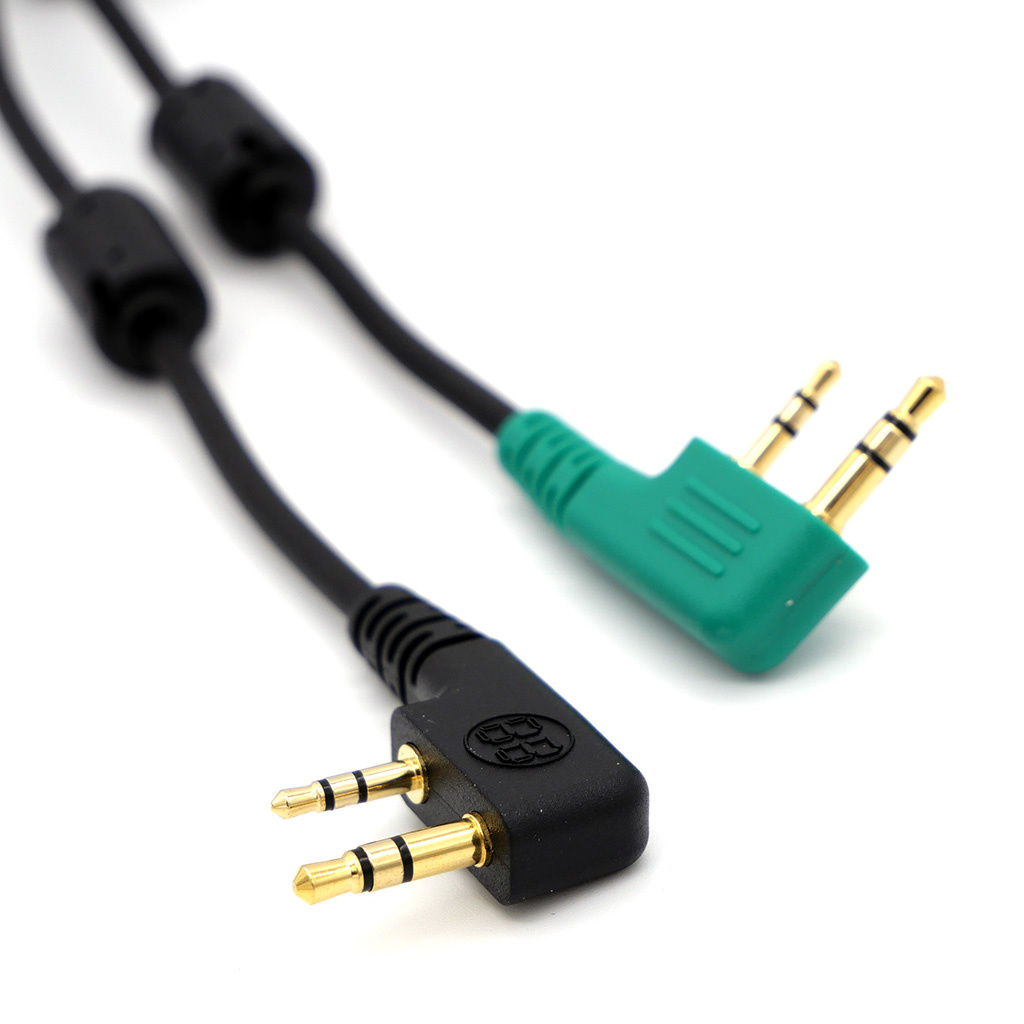

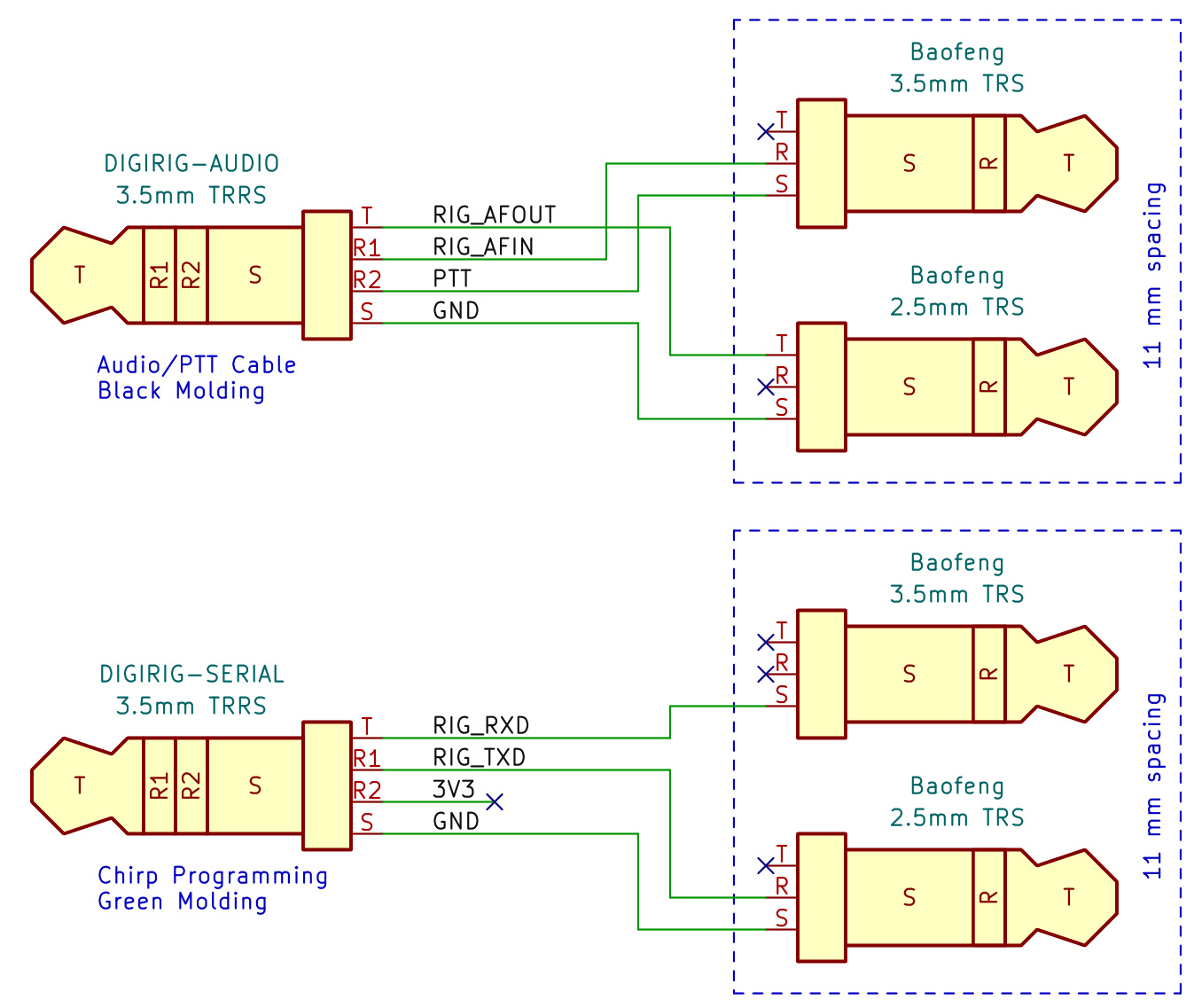

  • Data cable (black K1 connector) combines audio and PTT control, plugs into Digirig audio socket
  • Chirp programming cable (green K1 connector) plugs into Digirig's serial socket

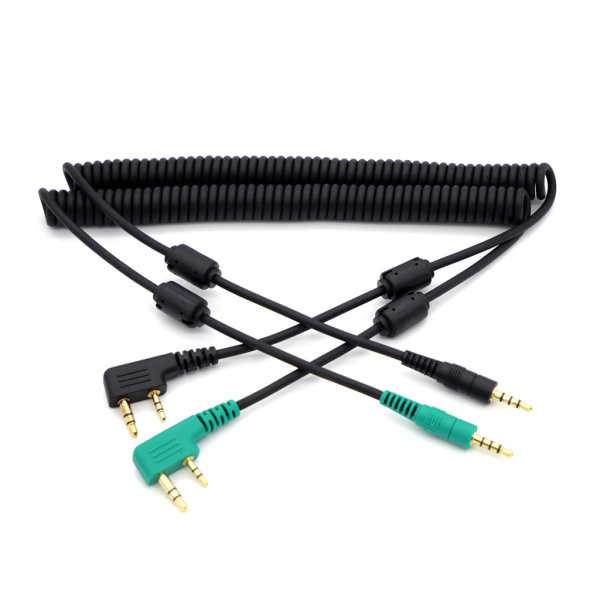

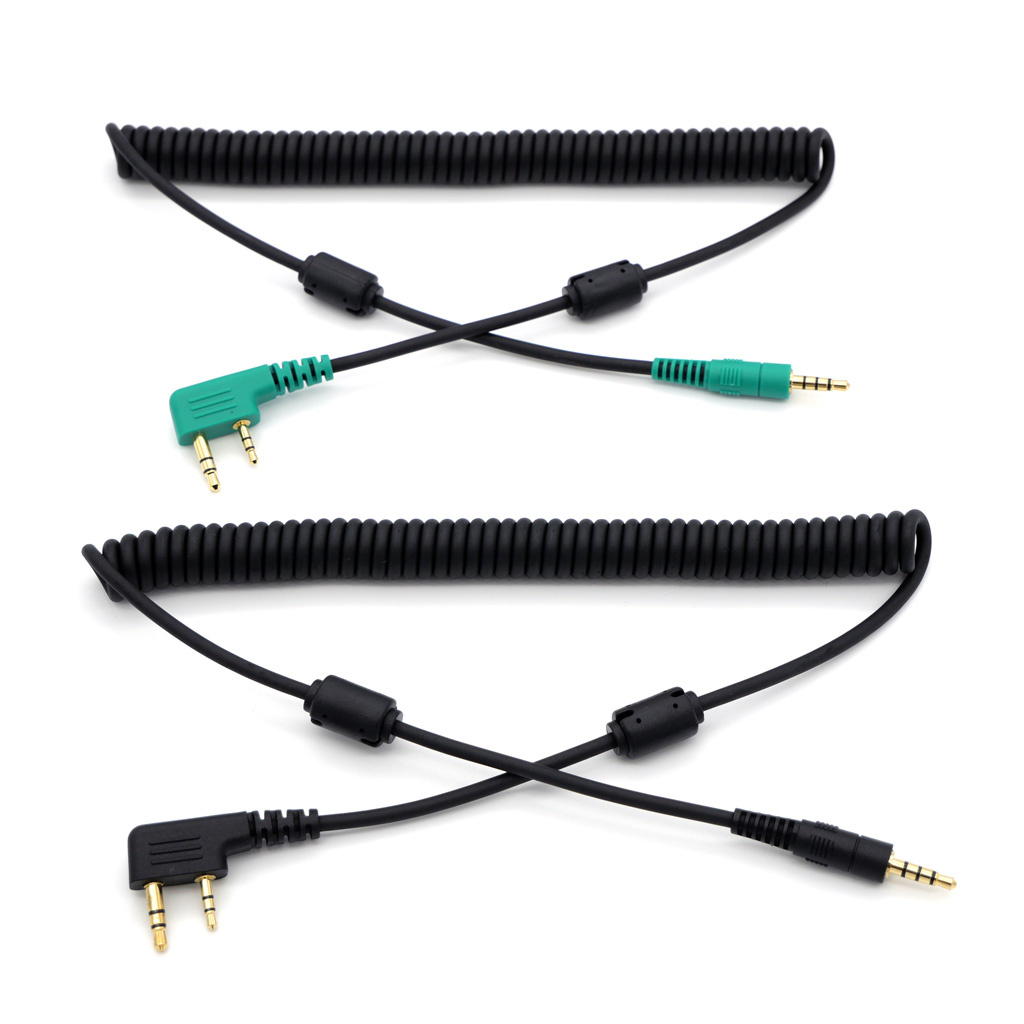

  • Coiled cable avoids knots and kinks, 60cm relaxed, 183cm fully extended
  • Shielded and insulated with ferrites at both ends to prevent radio frequency interference (RFI)
  • Top-quality materials and US manufacture

More details

37,90 € tax excl.

In stock

   More than 10 Items

Data sheet

Compatible with walkie-talkies:

Anytone: AT-D868UV, AT-D878UV, AT-D878UVII Plus

Baofeng: UV-5R

Kenwood : D74, NX-230, NX-240, NX-3220, NX-3320, PMR-446, TH-D72A, TH-D7AG, TH-F6A, TH-F7E, TH-G71A, TH-K20, TH-K20A, TH-K21A, TK-208, TK-2100, TK-2102, TK-2107, TK-2118, TK-2130, TK-2160, TK-2170, TK-2180, TK-220, TK-2200, TK-2202, TK-2207, TK-2212, TK-2300, TK-2300VP, TK-2302, TK-2312, TK-2360, TK-240, TK-2400Uk, TK-2400VK, TK-2402Uk, TK-2402VK, TK-240D, TK-248, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-308, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3130, TK-3131, TK-3160, TK-3170, TK-3173, TK-320, TK-3200, TK-3201, TK-3202, TK-3207, TK-3212, TK-3230, TK-3230XLS, TK-3300, TK-3300VP, TK-3301E, TK-3302, TK-3312, TK-3360, TK-340, TK-3400, TK-3401DE, TK-3401DT, TK-3402, TK-340D, TK-348, TK-349, TK-350, TK-3501E, TK-3501T, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-372G, TK-373, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-5320, TK-5400, TK-5410, TK-715

PUXING : PX-3288, PX-666, PX-777

Radioddity: GS-5B

TYT :MD-UV390, TH-UV8000D, TH-UV88

Wouxun : KG-679, KG-805G, KG-805M, KG-824B, KG-826B, KG-889, KG-905G, KG-935G, KG-935G Plus, KG-D901, KG-Q10G, KG-Q10H, KG-S84B, KG-S86B, KG-UV6D, KG-UV6D PRO, KG-UV7P, KG-UV899, KG-UV8D, KG-UV8D Plus, KG-UV8E, KG-UV9D, KG-UV9D Plus, KG-UV9P, KG-UVD1P, KG-UVN1

Other walkie-talkies that can be interfaced with the data cable (DATA)

For the programming cable, some models may not work for programming.

AnyTone: AT-D868UV, AT-D878UV, AT-878UVII Plus
WOUXUN: KG-UVD1P, KG-679
Kenwood : TK-3207, TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160, TH-K20, D74
BridgeCom : BCH-220, BCH-270, D-500, D-30
PUXING: PX-888, PX-888K, PX-777, PX-333, PX-666, PX-328
QUANSHENG: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT
Linton: LT-6288, LT-5288, LT-2288, LT-3288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268 , LT6188, LT3288
WEIERWEI : VEV-3288S,VEV-V1000,VEV-6288, VEV-3288
KST V6
KS-8R
