Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

Digirig cable for Anytone AT-D578UV 1 & 2 PTT + CAT mobile phone

rating No review at the moment

Digirig Mobile 1.6+ cable for Anytone AT-D578UV DMR & FM mobile (version 1 and 2) using RJ-45 connector.

  • Coiled cables keep things tidy by avoiding knots and kinks.
  • provides audio input, audio output and PTT control
  • short cable variant with optional CAT control
  • approx. 60cm extended, 183cm fully extended. Folded is approximately 45cm.
  • shielded and RF insulated with ferrite at both ends to avoid radio interference
  • top quality materials

This cable requires Digirig Mobile Revision 1.6 in any configuration and plugs into the socket labelled "audio".

Compatible with : Alinco DR-MD500, DR-MD520, DR-MD520T, AnyTone AT-D578, AT-D578UV-Plus, AT-D578UV-PRO and AT-D578UVIII-Plus.

More details

37,90 € tax excl.

Out of stock

Availability date: 2024-11-19

Data sheet

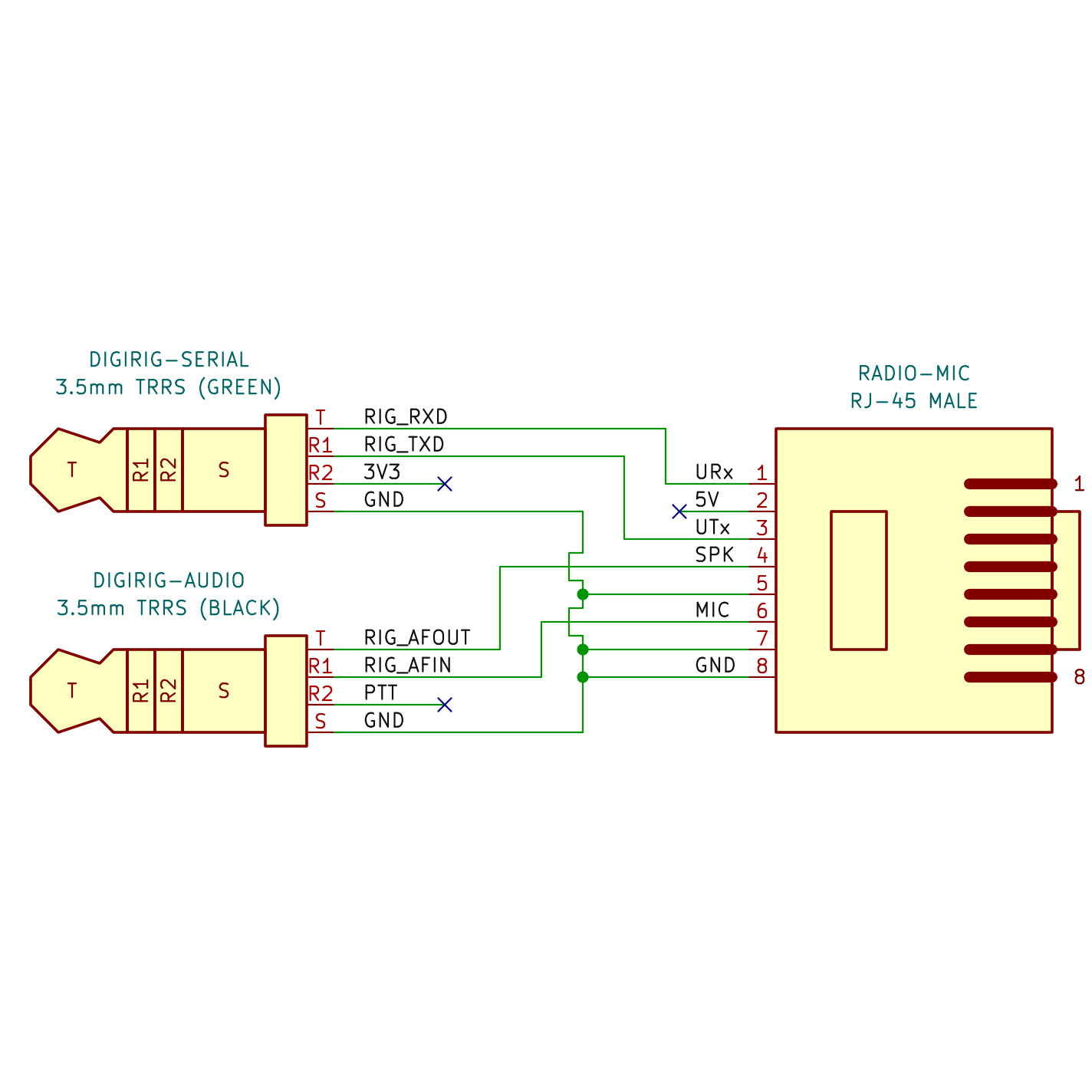

The AT-D578 has an unfortunate layout with the same #1 pin on the MIC connector shared between the URX serial line and the hardware PTT. This means that the radio can use either a hardware PTT line or serial communications, but not both at the same time.

The mode is selected in the "Hand Type" menu and is set to UART (serial) by default. The original microphone uses serial communications and activates the radio via the CAT command.

This cable uses PTT over serial CAT in the same way as the handheld mic. The "Hand Type" setting in the radio will remain at "Uart-Det". The software must support serial CAT control and have a compatible transceiver profile.

In the software setup, select PTT over CAT and configure the CAT settings, including baud rate and other parameters. This arrangement will not work if the digital modes software does not support CAT functionality or the particular AT-D578UV profile.

PTT via RTS is not available and testing the sleeve to ring 2 cable will not work. This cable requires Digirig configuration in logic levels.
