View larger
DIGIRIG-ICOMRJ45MOBILE-2942
New product
Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.
Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.
The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.
This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.
Online only

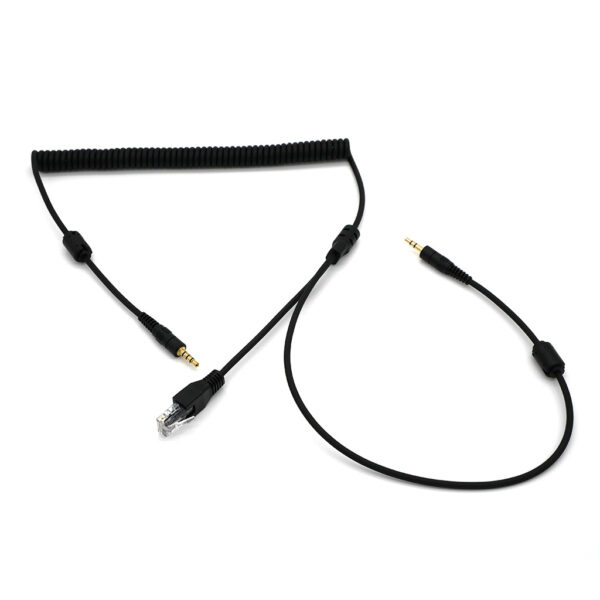

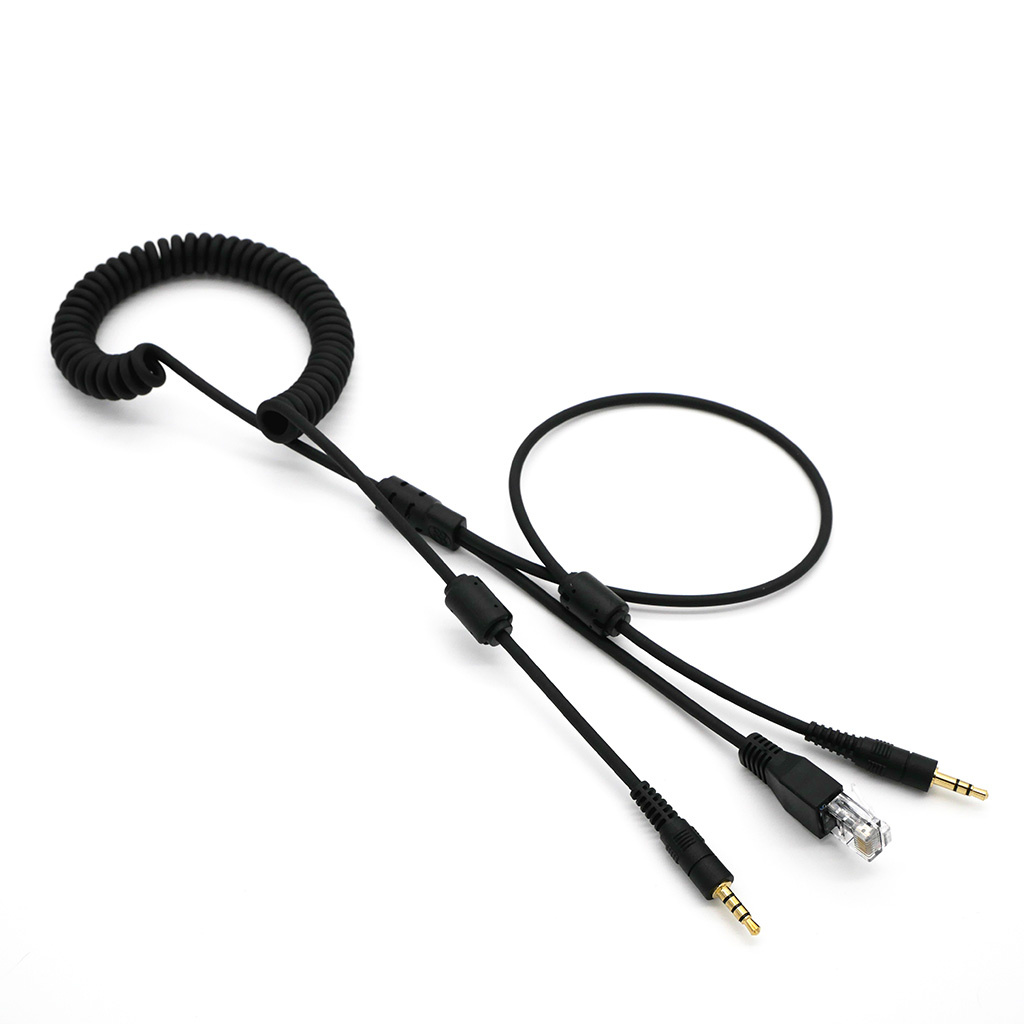

ICOM RJ-45 cable for Digirig Mobile

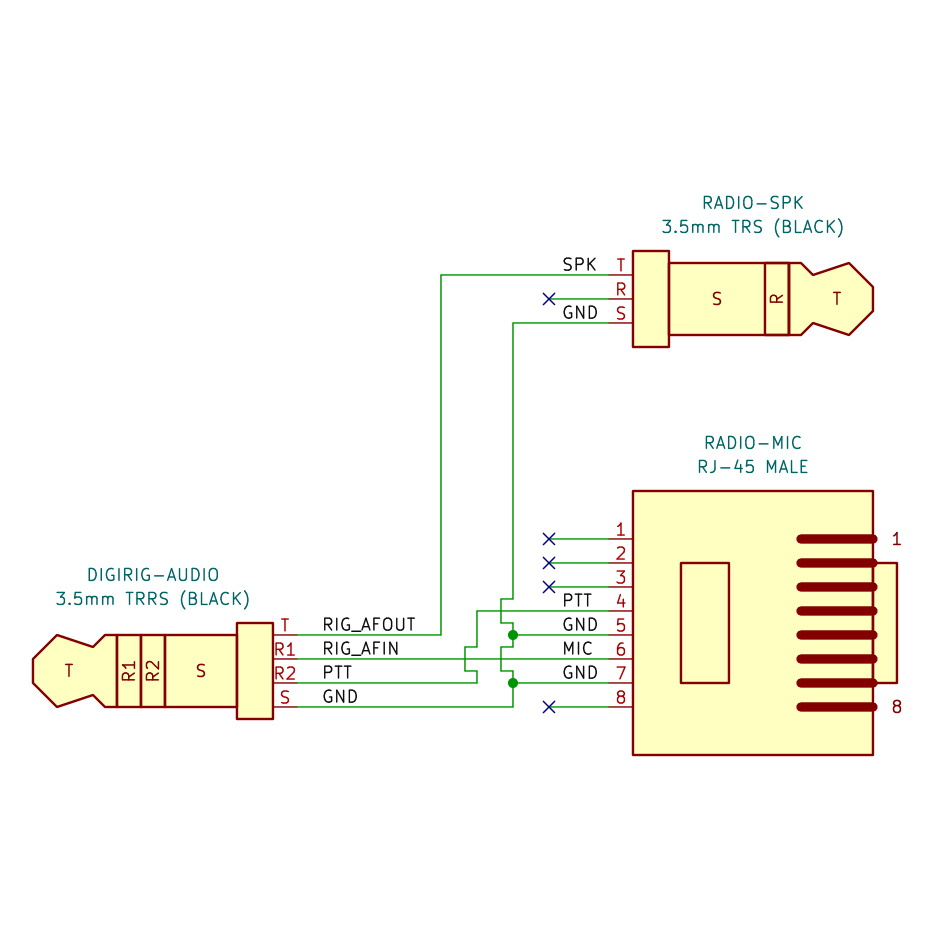

No review at the momentDigirig Mobile Rev 1.6+ data modes cable for Mobile ICOM transceivers using RJ-45 mic jack and 3.5mm TRS speaker connector.
- This cable works with ICOM and other mobile transceivers using RJ-45 mic jack and 3.5mm TRS speaker connector.
- The data cable supports digital modes and packet radio protocols such as FT8, FT4, SSTV, APRS, Echolink, Allstar, etc.
- ideal for working with satellites (e.g. APRS and SSTV)
- the data cable combines audio and PTT control and plugs into the Digirig's audio socket
- the coiled cable keeps things tidy, avoiding knots and kinks
- coiled part is ~24″ relaxed, 72″ fully stretched, mic cable is ~6″, speaker cable is ~18″.
- RF shielded and muffled with ferrite balls at both ends to avoid radio interference.
- premium materials and craftsmanship
Audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).
Data sheet
Compatible with :
Alinco DR-605, Alinco DR-605E, Alinco DR-735T
ICOM HM-133V, IC-207H, IC-208H, IC-2100H, IC-2200H, IC-2300H, IC-2702H, IC-2710H, IC-2720H, IC-2725E, IC-2730, IC-2730A, IC-2800H, IC-2820H, IC-E208, IC-E2820, IC-E880, IC-F110, IC-F111, IC-F121, IC-F1721, IC-F5021, IC-F6021, IC-V3500, IC-V8000, ID-4100A, ID-4100E, ID-5100, ID-5100a, ID-5100e, ID-800H, ID-880H.
