> Ham & radio equipment>PC radio interface>Radio interface cable>HT ICOM cable for Digirig Mobile
HT ICOM cable for Digirig Mobile View larger
Previous Next

digirig

DIGIRIG-ICOMHTMOBILE-2940

New product

Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

HT ICOM cable for Digirig Mobile

rating No review at the moment

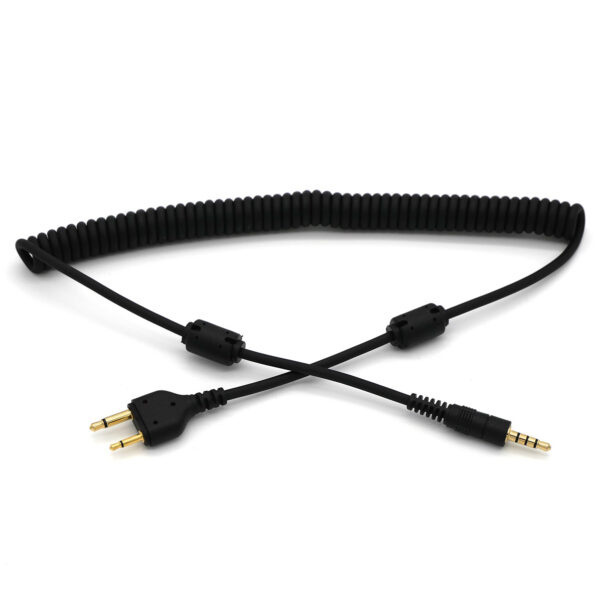

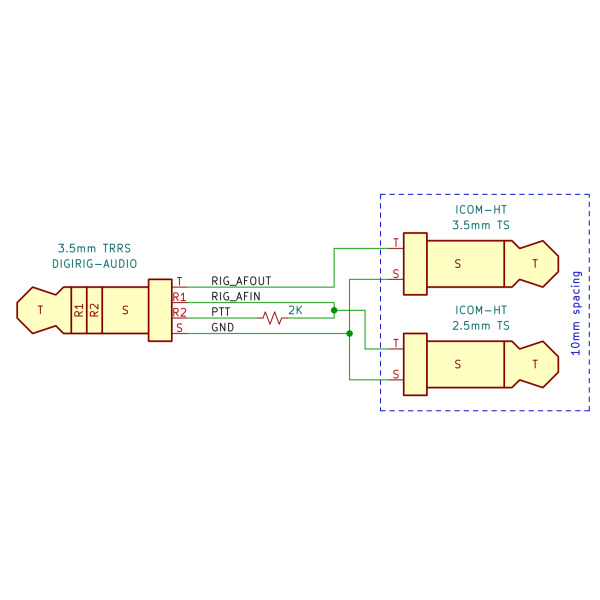

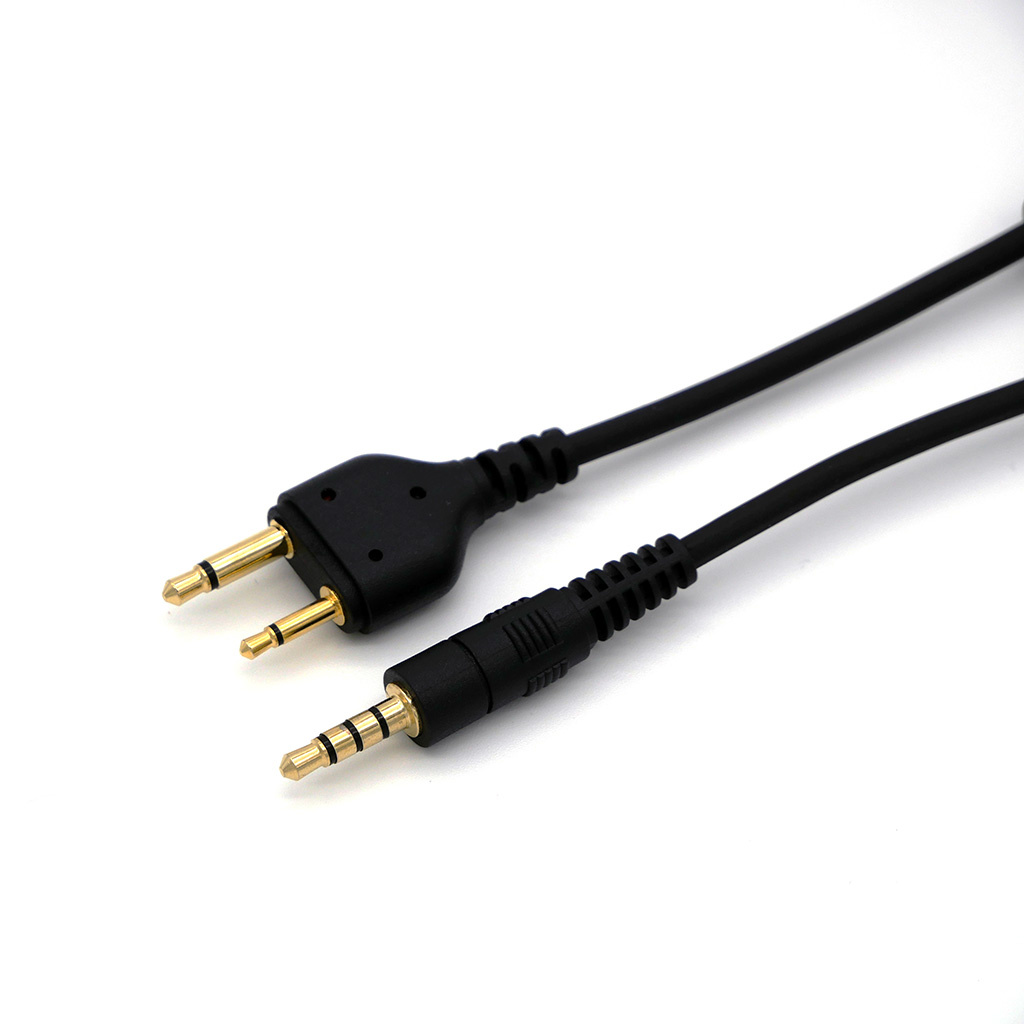

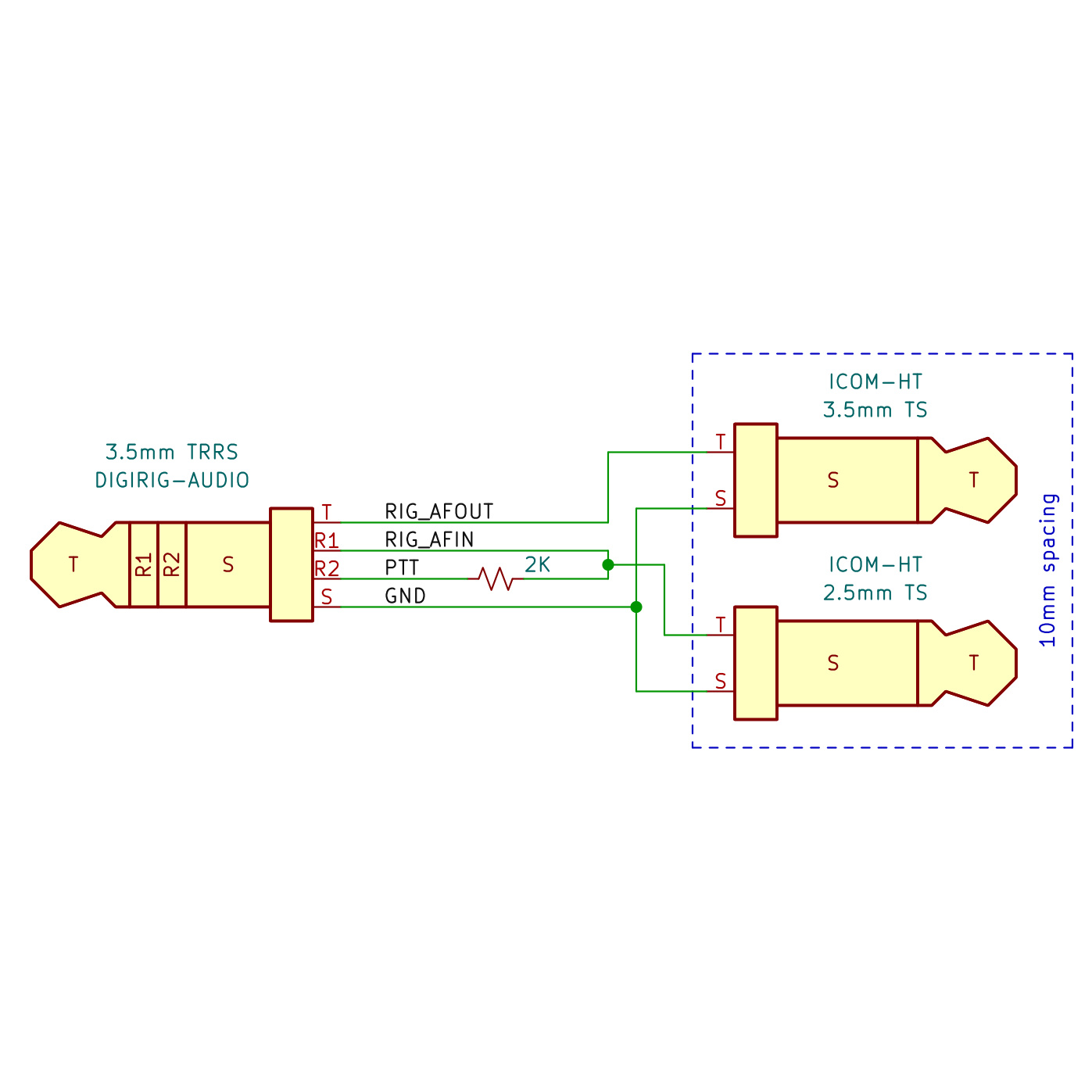

Digirig Mobile Rev 1.6+ Audio/PTT cable for ICOM HTs using dual 3.5mm/2.5mm connectors with 10mm spacing.

  • The data cable supports digital modes and packet radio protocols such as FT8, FT4, SSTV, APRS, Winlink, VaraFM, Echolink, Allstar etc.
  • ideal for working with satellites (e.g. APRS and SSTV)
  • the data cable combines audio and PTT control and plugs into the Digirig's audio socket
  • coiled cable keeps things tidy, avoiding knots and kinks
  • approx. 24″ extended, 72″ fully extended
  • shielded and muffled with ferrite beads at both ends to prevent radio frequency interference (RFI)
  • premium materials and craftsmanship

Audio cable requires Digirig Mobile Revision 1.6 or later (any configuration).

More details

25,90 € tax excl.

Out of stock

Availability date: 2024-11-19

Data sheet

Compatible with :

Alinco DJ-MD5, Alinco DJ-MD5XLT, Alinco DJ-V5

Cobra FRS100, Cobra FRS105, Cobra FRS110, Cobra FRS115, Cobra FRS120, Cobra FRS130, Cobra FRS220, Cobra FRS225, Cobra FRS235, Cobra FRS250, Cobra FRS300, Cobra FRS305MA, Cobra FRS307, Cobra FRS310WX, Cobra FRS90, Cobra HH37ST, Cobra HH38WXST, Cobra HH45WX, Cobra MT-500, Cobra MT-700, Cobra MT-900, Cobra PR1000, Cobra PR1050WX, Cobra PR1100WX, Cobra PR2000, Cobra PR330, Cobra PR500, Cobra PR880, Cobra PR900, Cobra PR945, Cobra PR950DX, Cobra PR955DX

ICOM IC-02AT, IC-03AT, IC-04AT, IC-2GAT, IC-2GXAT, IC-2SAT, IC-4008A, IC-4088A, IC-4088E, IC-4088SR, IC-A110, IC-A4, IC-A5, IC-A6, IC-DPR3, IC-F10, IC-F11, IC-F11S, IC-F12, IC-F12N, IC-F12SN, IC-F14, IC-F15, IC-F16, IC-F20, IC-F21, IC-F21BR, IC-F21GM, IC-F21S, IC-F22, IC-F22N/W, IC-F24, IC-F24S, IC-F25, IC-F26, IC-F3, IC-F3000, IC-F3001, IC-F3002, IC-F3003, IC-F3011, IC-F3021, IC-F3021S, IC-F3021T, IC-F3022, IC-F3023, IC-F3023S, IC-F3023T, IC-F3026, IC-F3026S, IC-F3026T, IC-F3031, IC-F31, IC-F3101, IC-F31GS, IC-F31GT, IC-F33, IC-F34, IC-F3G, IC-F3GS, IC-F3GSN, IC-F3GTN, IC-F3S, IC-F4, IC-F4000, IC-F4001, IC-F4002, IC-F4003, IC-F4011, IC-F4021, IC-F4021S, IC-F4021T, IC-F4022, IC-F4023, IC-F4023S, IC-F4023T, IC-F4026, IC-F4026S, IC-F4026T, IC-F4031, IC-F4101, IC-F41GS, IC-F41GT, IC-F43, IC-F43GS, IC-F43GT, IC-F43TR, IC-F44, IC-F4G, IC-F4GS, IC-F4GSN, IC-F4GSW, IC-F4GT, IC-F4GTN, IC-F4GTW, IC-F4S, IC-F4TR, IC-G3GT, IC-H16, IC-H2, IC-H6, IC-J12, IC-P7A, IC-Q7A, IC-T22A, IC-T22E, IC-T2A/T2H, IC-T42A, IC-T42E, IC-T7A/T7H, IC-T81A, IC-T81E, IC-T8A, IC-T8E, IC-T90A, IC-U12, IC-U16, IC-U82, IC-V8, IC-V80, IC-V80E, IC-V82, IC-V85, IC-V86, IC-W21AT, IC-W32Aetc, IC-W32E, ID-31E, ID-51E, IP100H, IP500H, SK-2000

Midland 75-501, Midland 75-510, Midland 75-785, Midland 75-786, Midland 75-810, Midland 75-820, Midland 75-822

VERTEX VX-200, VERTEX VX-500, VERTEX VX-510, VERTEX VX-520UD and Yaesu FT-11R
