View larger
DIGIRIG-GX16YAESU-2957
New product
Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.
Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.
The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.
This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.
Online only

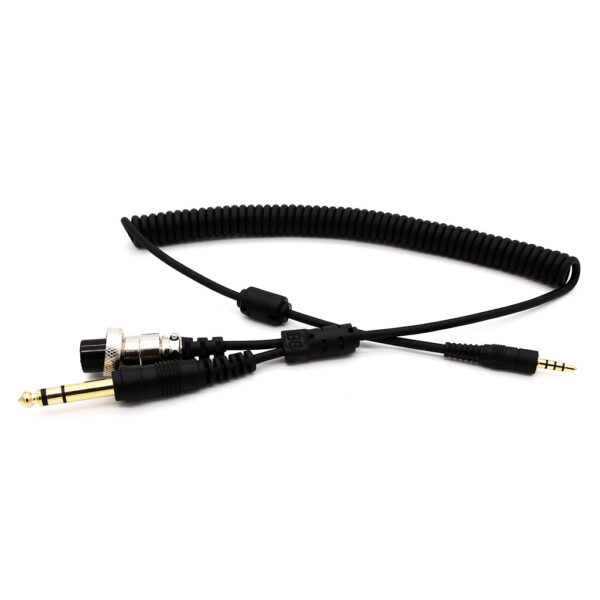

Digirig GX16 cable for Yaesu 8-pin microphone socket
No review at the momentDigirig Mobile 1.6+ cables for Yaesu transceivers using the standard GX16 8-pin micro connector. Compatible with :
Ten-Tec Argonaut VI, Ten-Tec Eagle, Eagle-599, Ten-Tec Omni VII, Ten-Tec Orion II
Yaesu FT-1, FT-1000, FT-1000D, FT-1000MP, FT-1000MPMKV, FT-1000MPMKVF, FT-102, FT-107, FT-107M, FT-2000, FT-2001, FT-211, FT-211RH, FT-212R, FT-212RH, FT-215, FT-2200, FT-2311, FT-2700, FT-270R, FT-290, FT-290RII, FT-3700, FT-3800, FT-3900, FT-4600, FT-4700RH, FT-4800, FT-480R, FT-4900, FT-5100, FT-5800, FT-650, FT-655, FT-690RII, FT-707, FT-711, FT-711RH, FT-712, FT-715, FT-726, FT-726R, FT-736, FT-736R, FT-747, FT-747GX, FT-757, FT-757GX, FT-767, FT-767GX, FT-77, FT-770, FT-770RH, FT-780R, FT-790RII, FT-80C, FT-840, FT-847, FT-848, FT-890, FT-920, FT-921, FT-950, FT-951, FT-980, FT-990, FT-990D, FT-DXX101D, FT-DX1201, FT-DX3001, FT-DX5000D, FT-DX5000MP, FT-DX5001
Data sheet
- coiled cables avoid knots and kinks
- provides audio input, audio output and PTT control
- approximately 60cm slack, 180cm fully stretched
- shielded and insulated with ferrites at both ends to prevent radio frequency interference (RFI)
- top-quality materials and craftsmanship
This cable requires Digirig Mobile revision 1.6.
The GX-16 microphone connector is common in amateur radio, with different brands using different pins. The cable in this listing uses the following pinout:
- pin 6 - PTT
- pin 7 - GND
- pin 8 - MIC
You can confirm compatibility by checking continuity between pin 7 and the radio chassis.
Some of the mobile transceivers listed do not offer a front panel headphone connection.
The cable in this list will need to be supplemented with an extension cable of appropriate length to reach the jack on the rear panel.
