Digirig GX16 cable for Kenwood Alinco with 8-pin microphone socket View larger

digirig

DIGIRIG-GX16KENW-2956

New product

Digirig is an integrated open-source digital interface for amateur radio, developed by Denis from K0TX.

Designed to simplify connections between radios on the one hand, and computers, tablets or smartphones on the other.

The interface combines a USB hub, an audio codec and a CAT (Computer Aided Transceiver) interface in a compact package.

This all-in-one solution is designed to reduce cable clutter and improve the experience of radio operators, both in fixed stations and in mobile or portable environments.

Online only

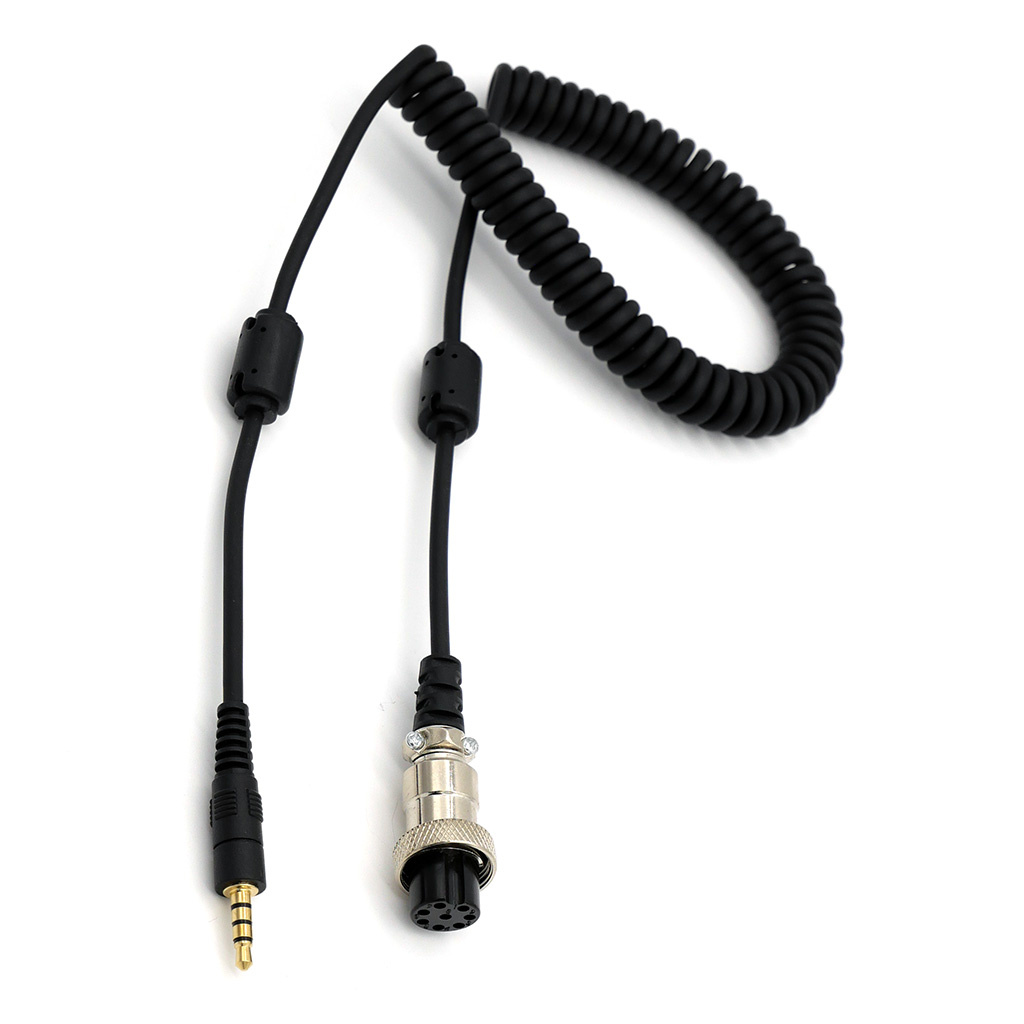

Digirig GX16 cable for Kenwood Alinco with 8-pin microphone socket

rating No review at the moment

Digirig Mobile 1.6+ cables for Kenwood, Alinco and other transceivers using the standard 8-pin GX16 microphone connector with earthed centre pin.

  • Coiled cables keep things tidy by avoiding knots and kinks.
  • provides audio input, audio output and PTT control
  • approximately 60cm slack, 183cm fully stretched
  • shielded and RF isolated with ferrites at both ends to avoid radio frequency interference (RFI)
  • top-quality materials and craftsmanship

This cable requires Digirig Mobile Revision 1.6 in all configurations.

More details

24,90 € tax excl.

Out of stock

Availability date: 2024-11-19

Data sheet

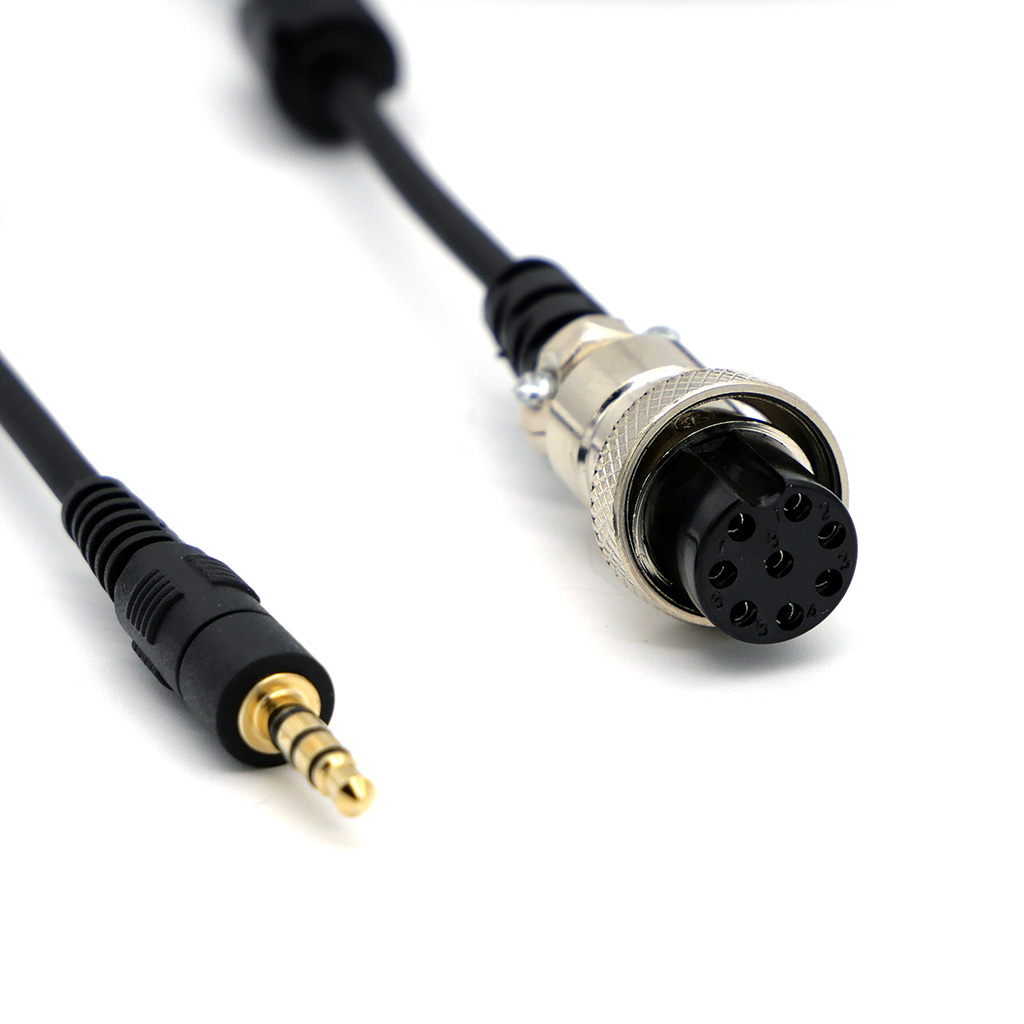

The GX-16 microphone connector is common in amateur radio, with different brands using different pinouts. The cable in this list uses the following pinout:

- pin 1 - MIC
- pin 2 - PTT
- pin 6 - SPK (optional)
- pin 7 - GND
- pin 8 - GND

You can confirm compatibility by checking continuity between the centre pin (#8) and the radio chassis.

The pinout and construction of this cable is discussed in the community forum.

Compatible with :

ADI AR-146, ADI AR-147, ADI AR-247, ADI AR-446, ADI AR-447

Alinco 70T, ALD-24T, ALR-22H, ALR-22HT, ALR-22T, ALR-72T, ARL-72T, DMR-610 ADI AR-146, DR-03T, DR-06T, DR-110, DR-110T, DR-112, DR-112T, DR-119, DR-1200, DR-130T, DR-135, DR-135E, DR-135LH, DR-135T, DR-150, DR-150E, DR-150TE, DR-235, DR-235T, DR-330, DR-410, DR-430, DR-430T, DR-435, DR-435E, DR-435T, DR-510, DR-510T, DR-570, DR-570T, DR-590, DR-590T, DR-592T, DR-599T, DR-600T, DR-610, DR-610E, DR-610T, DR-620, DR-620E, DR-620T, DR-635, DR-638HE, DR-M03R, DR-M06R, DRM-03, DRM-06, DX-70, DX-701, DX-707, DX-70EH, DX-70T, DX-70TH, DX-77, DX-SR8E, DX-SR8T, DX-SR9

FLEX-5000, Elecraft K2, Elecraft K3, Elecraft K3/0-Mini, Elecraft K3/S

JRC JST-135, JRC JST-145, JRC JST-245

Kenwood TM-201, TM-201A, TM-201B, TM-211, TM-221, TM-231, TM-241, TM-241A, TM-2530, TM-2550, TM-2570, TM-321, TM-3231, TM-331, TM-3530, TM-401, TM-401A, TM-401B, TM-421, TM-431, TM-441, TM-521, TM-531, TM-541, TM-621, TM-631, TM-701, TM-721, TM-731, TR-3200, TR-50, TR-751, TR-7900, TR-851, TS-140, TS-140S, TS-2000, TS-2000x, TS-430, TS-440, TS-440SAT, TS-450, TS-50, TS-570, TS-570d, TS-570DG, TS-570S, TS-570SG, TS-590S, TS-590SG, TS-60, TS-660, TS-670, TS-680, TS-680S, TS-690, TS-701, TS-711, TS-780, TS-790, TS-811, TS-850, TS-870, TS-930, TS-940, TS-950, TS-990, TW-4000, TW-4100

Retevis SGC-2020, SGC SG-2020
