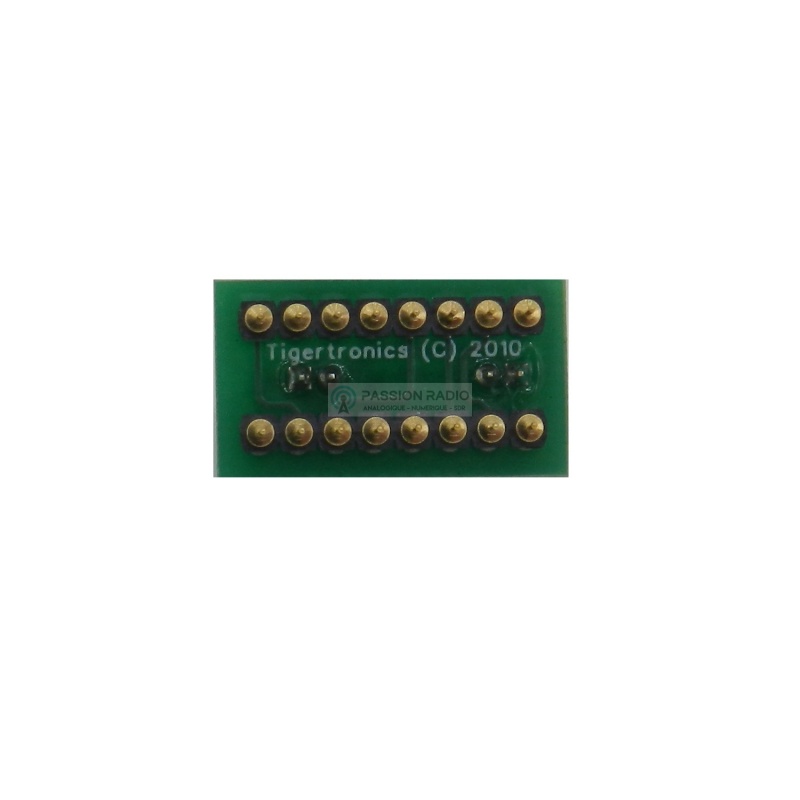

Jumper Signalink SLMOD-8RI for 8 pin micro socket for ICOM
Read the reviewThis jumper module is compatible with virtually all ICOM radios that use an 8 pin round type mic jack. This includes but is not limited to the radios listed below.
The radio cable compatible with this jumper module has the reference: SLCAB8R .
Supplied with: 1 Signalink SLMOD-8RI Jumper module
Download
Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k
Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k
Data sheet
ICOM
IC-1201/1271/1275
IC-22U / 25/27/28
IC-228/229 / 251AE
IC-255/260/271/290
IC-2400/2500
IC-37A / 38A / 375
IC-3200/3210/3220
IC-45/47/48
IC-471/475/490
IC-505/551/560/575
IC-707/718/720/725/726
IC-728/729/730/735
IC-736/737/738/740/745
IC-746 / 746PRO
IC-756 / 756PRO
IC-756PROII / PROIII
IC-7300/7400/7700/7800
IC-751/761/765/775/781
IC-820H / 901/910

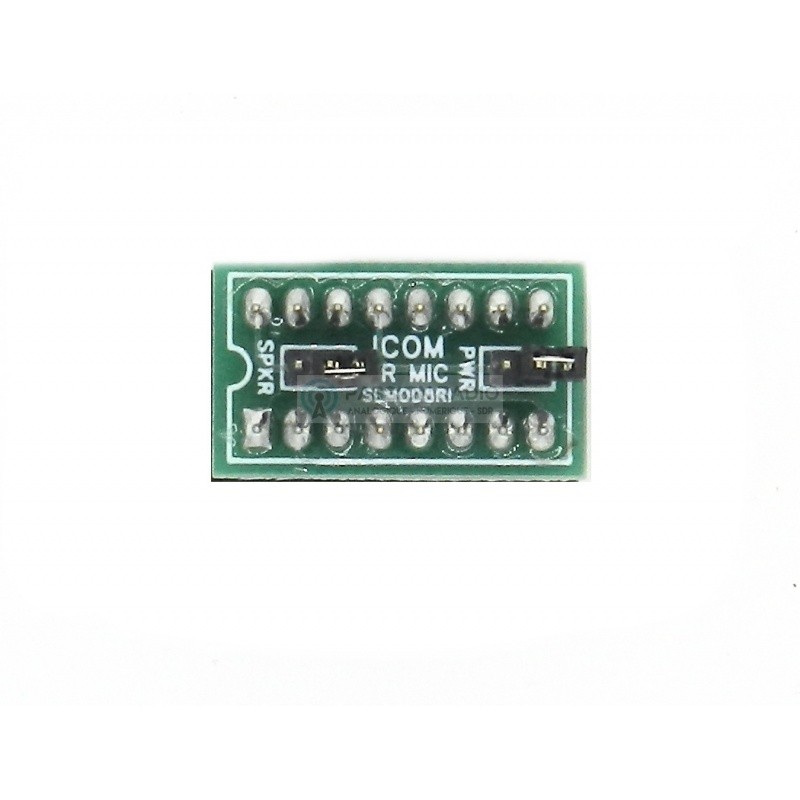

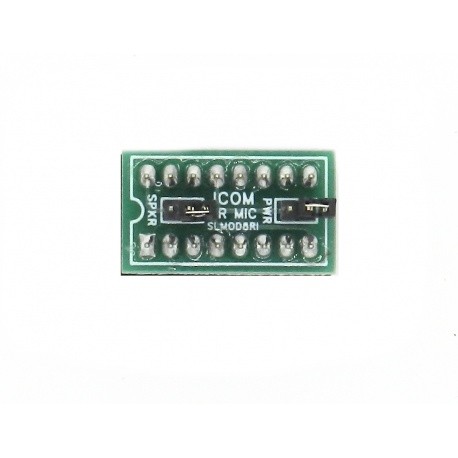

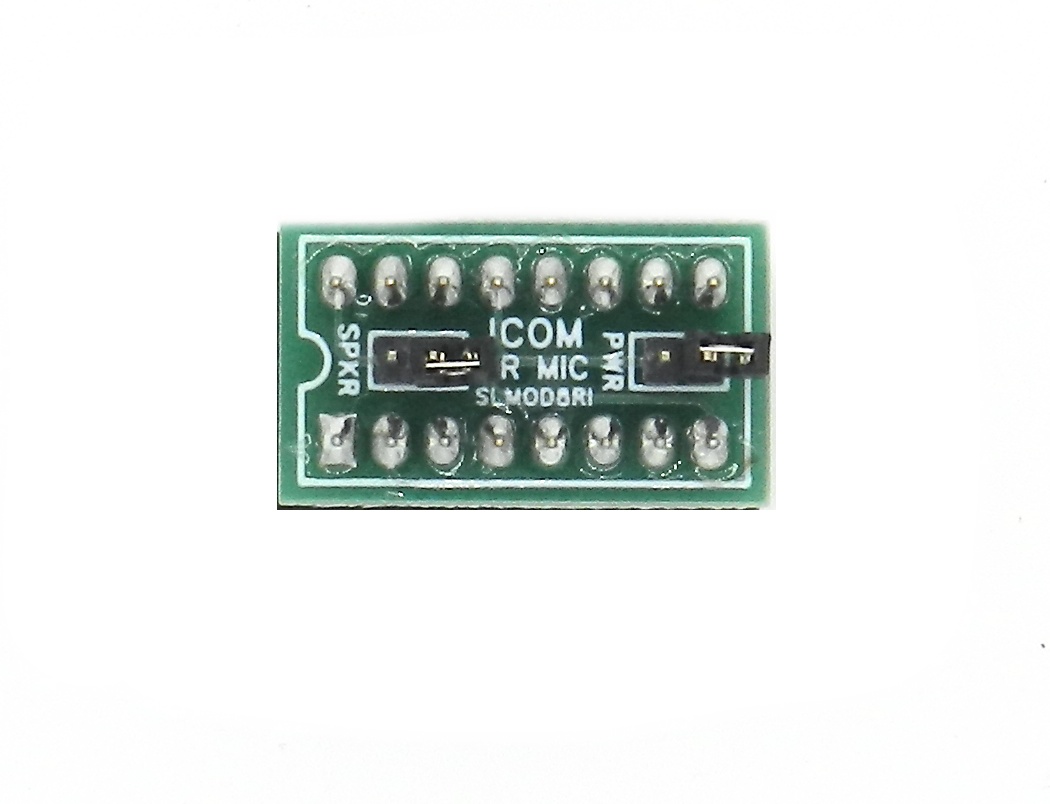

PWR / SPKR Jumper Settings - To maintain compatibility with as many radios as possible, this jumper module has two small jumpers that can be set to activate power and the audio speaker.
PWR - This jumper is * NOT * used with the SignaLink USB, but can be installed to power the older SignaLink SL-1 or SL-1 + model from your radio if there is sufficient power available on it. Mic connector pin # 2 (check your radio manual).
SPKR - This jumper should only be installed if your radio has an audio speaker on pin # 8 of the Mic jack (check your radio manual). If the audio speaker is not available, you will need to connect an audio cable between the radio and the SignaLink as described in the SignaLink installation manual.
