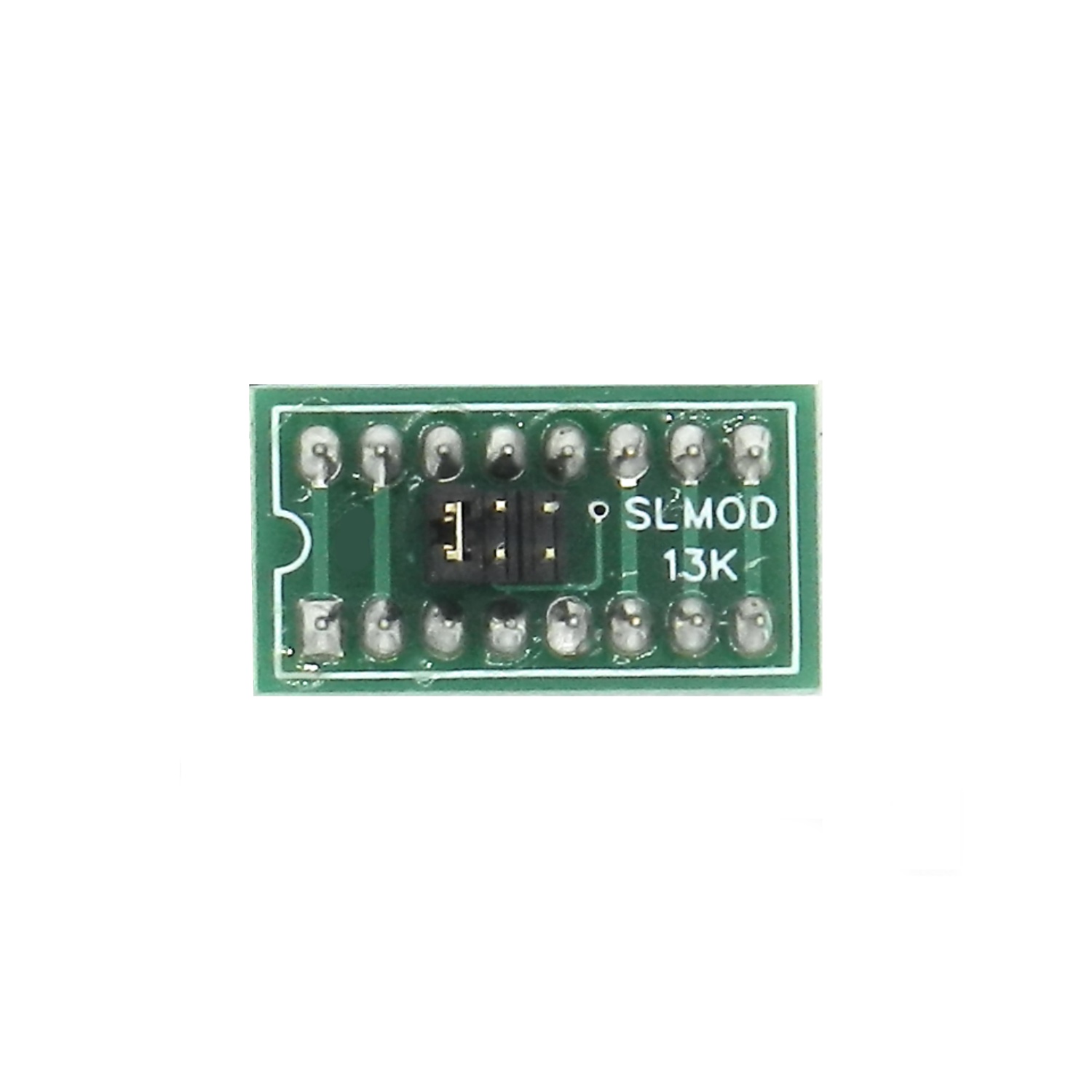

Jumper Signalink SLMOD-13K for Kenwood Mini DIN Data 13-pin
No review at the momentThe Signalink SLMOD13K Jumper module is compatible for use with the Signalink USB sound card and with virtually all Kenwood radios that have a 13-pin mini-DIN data port (DATA socket). This includes, but is not limited to, the radios listed below.
The radio cable compatible with this jumper module (jumper) bears the reference: SLUSB13K .
In case of doubt, you can check using the guide to download in PDF below, the correct reference of radio cable and jumper module (jumper) for your set.
Supplied with: 1 Signalink SLMOD-13K Jumper module.
Download
Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k
Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k
Data sheet
Compatible Kenwood transceiver :
TS-690
TS-850
TS-870
TS-940
TS-950
TS-990
TS-2000
TS-2000X
TS-140S
TS-440
TS-440SAT
TS-450
TS-570
TS-570D
TS-570DG
TS-570S
TS-570SG
TS-590S
TS-590SG

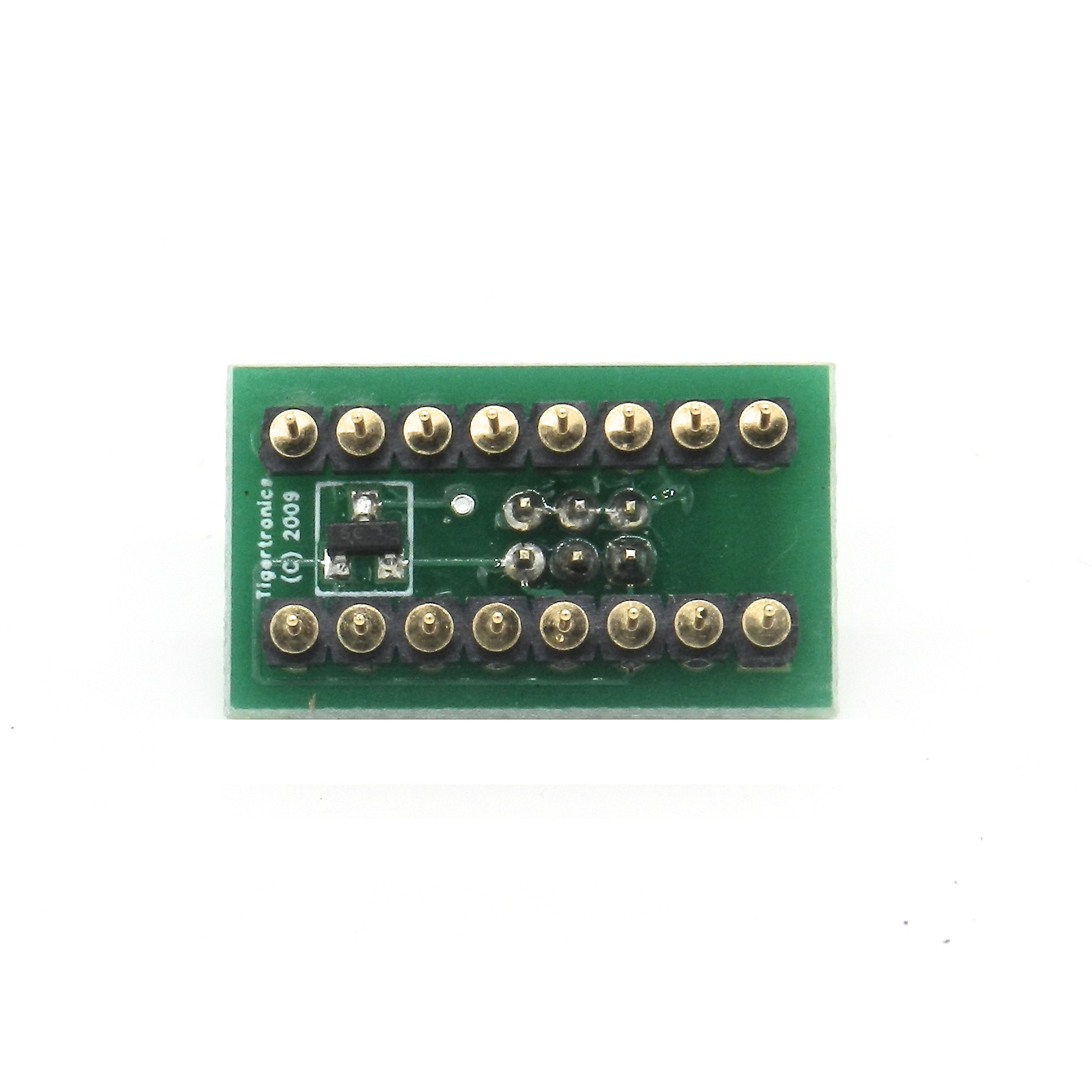

For the settings below, please refer to the picture below:
Setting # 1 - This setup is the most common and works with early Kenwood radios such as the TS-140, TS-450S, TS-850, TS-870 and TS-950. Some newer radios such as TS-570D, TS-590S, TS-990 and TS-2000 / X also use this setting.
Setting # 2 - This configuration is less common and is used by some recent radios (TS-690 for example), and some older radios like the TS-440.
Setting # 3 - This configuration works only with TS-940.
