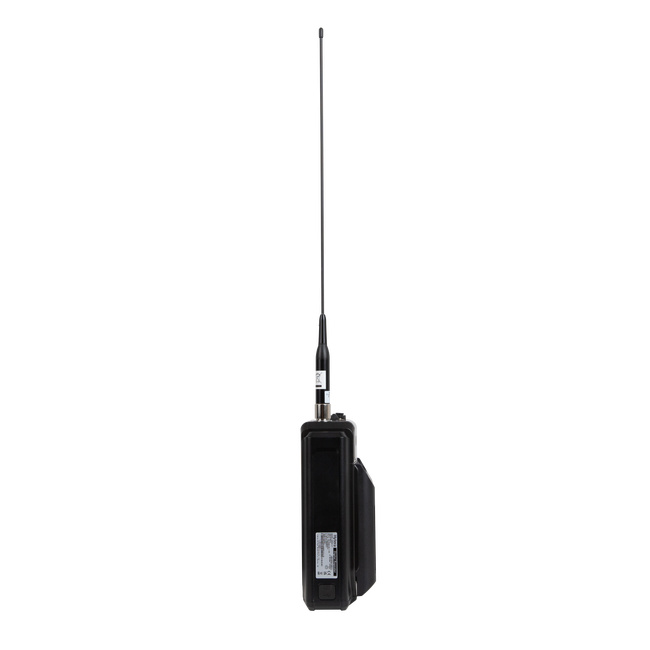

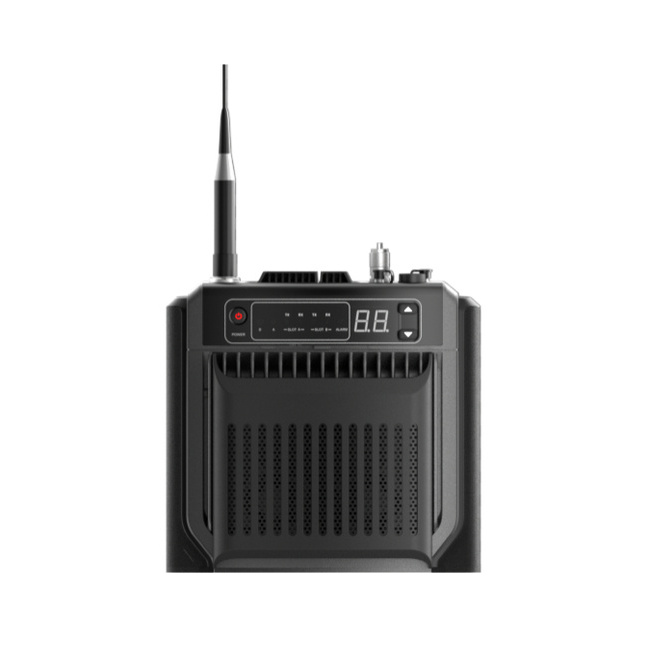

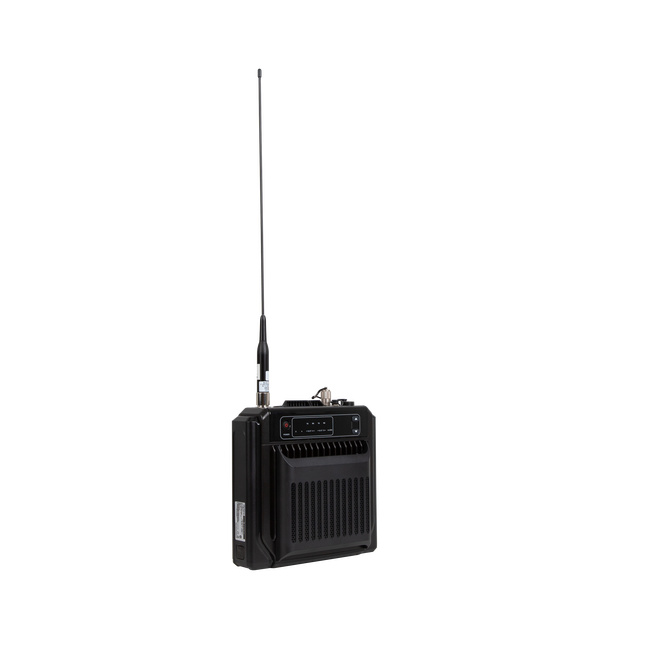

New Hytera HR655 DMR VHF or UHF Relay 10 or 25W View larger
Previous Next

Hytera

New product

China

Hytera HR655 handheld FM & DMR VHF or UHF relay 25W IP54 or 10W IP67

rating No review at the moment

Hytera's HR655 is a compact, lightweight (2kg) FM & DMR analogue relay designed to extend the range of FM and/or DMR walkie talkies and mobile radios.

Easy to install thanks to its compact design with integrated duplexer and can be wall-mounted or transported with the optional BRK36 accessory.

Operates from mains (power supply not included) or an optional battery (BL9915), depending on need and use.

Available in VHF (136-174 Mhz) or UHF (400-470 Mhz) versions with 10W and IP54 or 25W and IP67.

Supplied with : Hytera DMR HR655 relay, power cable and manual. Supplied without BL9915 battery or optional 220V PS8002 power supply.

More details

1 399,00 € tax excl.

Available to order within 2-4 weeks

  • VHF - 136-174Mhz
  • UHF 400-470Mhz
  • 10W IP67
  • 25W IP54

Data sheet

Frequency range

UHF version 400-470 MHz

VHF version 136-174 MHz

Channels and zones

Channel capacity: 1024

Zone capacity: 1

Channels per zone: 64

Channel spacing

Analogue: 12.5kHz/20kHz/25kHz

Digital: 12.5 kHz

Operating voltage

DC: 14.4V ±15

Current consumption (DC)

Standby: <0.35A

Transmission: <6A

Battery

12.5 Ah (optional)

Battery life (50-50 duty cycle)

25W high-power version: 4 hours

10W low-power version: 9 hours

Frequency stability

±0.5 ppm

Antenna impedance

50 Ω

Duty cycle

100%

Dimensions H x W x D

25W high-power version: 201 mm x 211 mm x 80.6 mm (with fan)

Low-power version 10W: 201 mm x 211 mm x 65.8 mm

Weight

25W high-power version: 2.0 kg

10W low-power version: 1.9 kg

Networking

Single-site repeater mode, multi-site IP mode

Digital protocol

ETSI-TS102 361-1,-2,-3

Receiver

Sensitivity

Analogue: 0.18µV (12dB SINAD)

Analogue: 0.16µV (12dB SINAD) (typical)

Digital: 0.18µV / BER 5%.

Adjacent channel selectivity

TIA-603: 65dB @12.5kHz / 75dB @20/25kHz

ETSI: 60dB @12.5kHz / 70dB @20/25kHz

Intermodulation

TIA-603 : 75 dB

ETSI : 70 dB

Noise response rejection

TIA-603 : 80 dB

ETSI: 80 dB

Blocking

90 dB

Hum and noise

40 dB at 12.5 kHz

43 dB at 20 kHz

45 dB at 25 kHz

Conducted emissions

@≤1GHz: ≤ -57 dBm

@>1GHz : ≤ -47 dBm

Nominal audio distortion

<3%

Audio response

+1 to -3 dB

Transmitter

RF output power

25W high-power version: 1-25W

Low-power version 10W: 1-10W

FM modulation

11K0F3E @12.5kHz

14K0F3E @20kHz

16K0F3E @25kHz

4FSK digital modulation

12.5kHz data only: 7K60FXD

12.5kHz data and voice: 7K60FXW

Conduction/radiation transmission

operation : -36dBm @<1GHz; -30dBm @>1GHz

standby: -57dBm @<1GHz, -47dBm @>1GHz

Modulation limitation

±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz

FM hum and noise

40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz

Adjacent channel power

60 dB at 12.5 kHz; 70 dB at 20/25 kHz

Audio distortion

<3%

Digital vocoder type

AMBE+2™

Environment

Operating temperature range

From -30°C to +60°C

Storage temperature

From -40°C to +85°C

ESD

IEC 61000-4-2 (level 4)

±8 kV (contact)

±15 kV (air)

Protection against aggression (IEC60529)

25W high-power version: IP54

Low-power version 10W: IP67

Air humidity

In accordance with MIL-STD-810G

Location service

GNSS

GPS, GPS+BDS

TTFF (time to first fix) cold start

< 1 minute

TTFF (time to first fix) hot start

< 10 seconds

Horizontal accuracy

< 5 metres

RX sensitivity

95% value at nominal value > -130 dBm (signal strength visible from 5 satellites)
