Mobile Hytera HM785 DMR & FM - Single band VHF or UHF - GPS & BT optional

No review at the moment

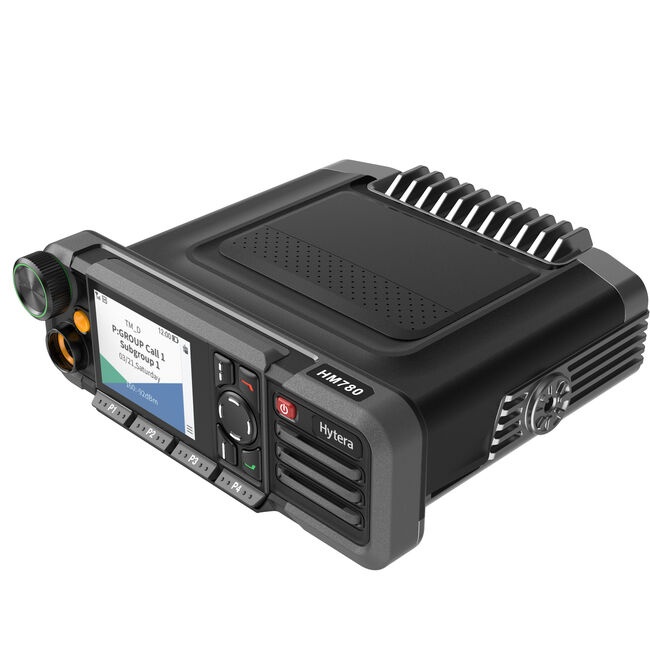

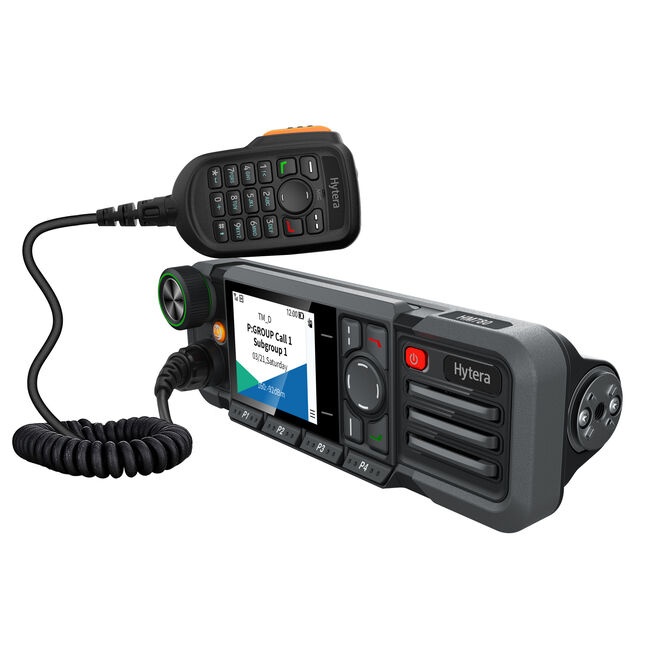

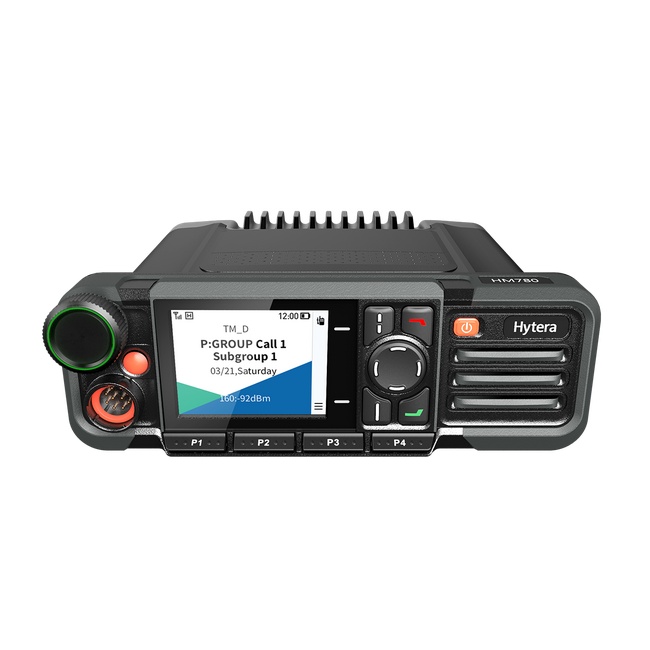

Hytera HM785 radio, DMR digital mobile and FM analogue, single-band VHF 136-174MHz or UHF 350 to 470MHz, with maximum power of 45W. Available with optional GPS and Bluetooth 5.0.

The HM785 complies with MIL-STD-810 C/D/E/F/G standards and has an IP54 water/dust protection rating.

Supplied complete with : Hytera HM785 mobile phone (version to choose from below), Hytera SM16A1 microphone, microphone stand clamp, PWC10 12V power cable with spare fuse, BRK08 mounting bracket with screws.

More details

Download

Drivers Hytera DMR

2.94M

CPS Firmware Hytera HM series

Data sheet

Analogue and digital mobile radio
Frequency: Single-band VHF 136-174MHz or UHF 350 to 470 Mhz
Frequency steps: 12.5/20/25 kHz (analogue) and 12.5 kHz (digital DMR)
Frequency stability: ±1.5ppm
Power: 50W/5W (VHF) and 45W/1W (UHF)
Antenna connection: BNC female for UHF antenna and SMA female connector for GPS antenna on MD785G model
DMR Tier II and III compatible
TDMA, Simulcast, XPT Digital Trunking mode
Vocoder type: AMBE+2™
TFT display 220*176 pixels, 262k colours
1024 channels
CTCSS, DCS for analogue channels
Analogue/digital scan function
Powerful loudspeaker: 5W
SMS messaging
Water and dust resistant (IP54 standard)
Shock and vibration protection (MIL-STD-810 C/D/E/F/G standard)
Standard 1 DIN for car mounting
Size: 177 x 61.5 x 179 mm
Weight: 1.520kg
CE RED standards
2-year warranty
