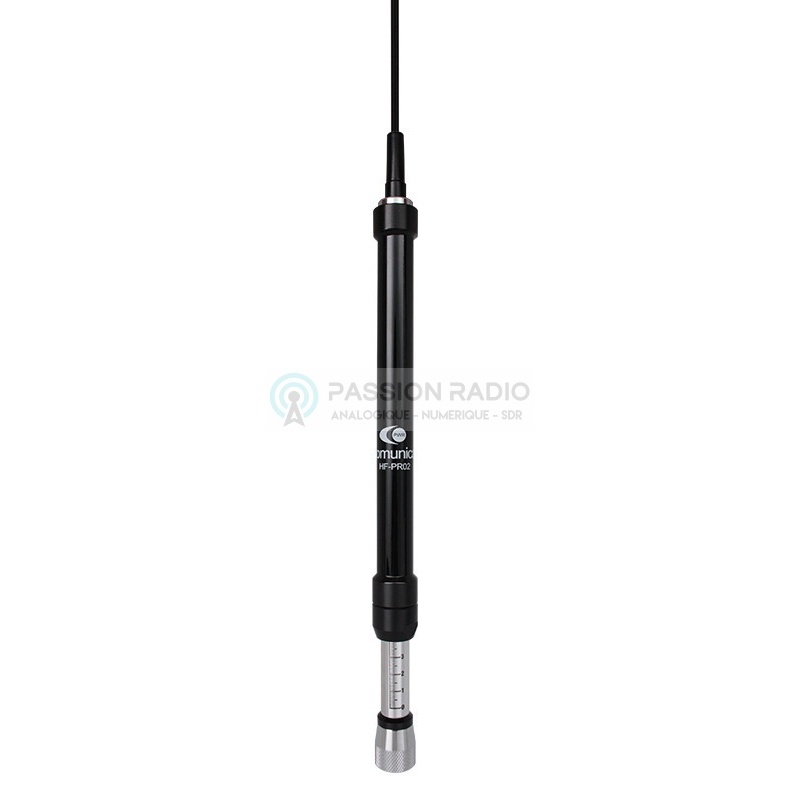

Multiband mobile antenna 7-30Mhz + 6m HF-PRO-2 Komunica
Read the 11 reviewsMultiband antenna from 7 to 30Mhz and with the 6m band (50Mhz) Komunica HF-PRO-2 for mobile and portable operation.
Adjustable by sliding tube at the base.
RX and TX frequencies: 7 - 30MHz and 50-52Mhz
Max Power: 130W (SSB)
Height: 2.6m max.
Weight: 465g
Connector: PL-259 (UHF Male)
Type: 1/4 wave reduced for HF bands, 1/4 wave on 50Mhz
ROS: Less than 1.5: 1
Impedance: 50Ω
Material: FRP reinforced fiberglass
Supplied with: Komunica HF-PRO 2 antenna, 2 strands (PWR-01002 for the 7-30MHz band and PWR-01003 for the 50MHz).
Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.
Download
Data sheet
Komunica HF-PRO 2 antenna is usable in portable, on a magnetic base (with ground plane), in mobile (BUT NOT ROLLING) and requires a good ground plane to work properly.
If a ground plane is not possible, we recommend in this case to use a coaxial cable with a minimum length of 10 meters to act as a counterpoise.
The HF-PRO-2 antenna can also be mounted on a metal balcony by ensuring good conductivity and grounding between the antenna and the balcony.
The use of an automatic antenna tuner is recommended with this antenna.
Customers also bought
31,93 € 32,92 € tax excl. -3%tax excl. Out of stock, available within 1 to 2 months-3%
Reference: MOON-15-023-TRIMAGSB-2268
Trimag-SB Moonraker tripod magnetic base with SO239 bracket
Trimag-SB Moonraker, compact triple magnetic mount (SO239) with 3 magnets, each 95 mm in diameter. Supplied with SO-239 base and 4m coaxial cable with PL259.
31,93 €32,92 €
Reduced price!
8,25 €Reference: ADAPT-SMA-ATTENUA3-826
RF attenuator SMA 0-6 Ghz from -3 to -30dB 2W
This adaptor is an SMA male attenuator available in -3, -6, -10, -15, -20 or -30dB versions for operating frequencies from 0 to 6 GHz. This attenuator is symmetrical and can be used in both
8,25 €
20,94 € 21,58 € tax excl. -3%tax excl. In stock-3%
Reference: KOM-EMBASE-BK-1500-539
Magnetic base 150mm with coaxial cable RG58 and PL-259 Komunica BK-1500
This 15cm diameter magnetic base ensures a solid fixation and allows to screw a PL-259 antenna (UHF-male) on a car roof or a metal surface of minimum 1m².The magnetic base allows to support antennas
20,94 €21,58 €
Reduced price!
24,17 € 24,92 € tax excl. -3%tax excl. In stock-3%
Reference: DIAMOND-RG6MR-RG58U-269
Coaxial cable RG58 6m with SO-239 socket (UHF female) Diamond RG-6MR
The cable antenna RG6MR Diamond is a length of 6 meters and allows you to connect an antenna with base PL259 (male UHF) on the SO239 socket (UHF female). It is equipped with a SO239 and RG58U cable
24,17 €24,92 €
Reduced price!
We also recommend
141,46 € 145,83 € tax excl. -3%tax excl. In stock-3%
Reference: DIAMOND-W8010-113
Long Wire HF 5 bands 80-10m DIAMOND W8010
Diamond W8010 is a efficient long wire dipole antenna for 5 HF bands: 80m/40m/20m/15m and 10m. W8010 specificationsBand frequency: 3.5/7/14/21/28MHzLength:19.2mWeight:2.5kg Max.power:1.2kW
141,46 €145,83 €
Reduced price!
71,94 € 74,17 € tax excl. -3%tax excl. In stock-3%
Reference: DIAMOND-SG9700-118
Mobile antenna 6m/2m/70cm Diamond SG-9700
Original Diamond SG-9700 antenna for mobile 50/144/430Mhz (2m/6m/70cm bands). Antenna Type: Wavelength 1 / 4λ (50Mhz), 1/2λ (144MHz), 2x 5/8λ (430MHz) Gain: 3.0dBi (144MHz) / 5.8dBi (430MHz) Maximum
71,94 €74,17 €
Reduced price!
96,19 € 99,17 € tax excl. -3%tax excl. In stock-3%
Reference: DIAMOND-D220R-120
Diamond D220R Discone mobile Antenna 100MHz to 1.6GHz
Antenna discone mobile Diamond D220-R, receiving from 100Mhz to 1600MHz and 144/430/904/1200MHz for transmitting. Type:1/2 wave (144MHz),5/8 wave (430MHz)Length:70cmWeight:360g Gain:2.15dBi
96,19 €99,17 €
Reduced price!
80,03 € 82,50 € tax excl. -3%tax excl. Out of stock, available in 2 to 3 months-3%
Reference: DIAMOND-CR8900-121
Mobile antenna 10m/6m/2m/70cm DIAMOND CR8900
Genuine mobile antenna Diamond CR8900, 29/50Mhz and 144/430MHz (10m/6m/2m/70cm). Type:1/4 wave (29/50MHz), 1/2 wave radialless (144MHz), 2x 5/8wave radialless (430MHz)Length:1.26mWeight:490g
80,03 €82,50 €
Reduced price!
Reviews
Réglages délicat (pointu) si pas de tuner.
Je recommande
Je l\'ai installée sur une embase en 160mm et ca tient, mais attention pour du mobile arrêté seulement, pas question de rouler, vous avez 2.6m d\'antenne sur le toit ! Donc vous sortez votre antenne, réglez la bague et vous êtes QRV en moins de 1 minutes sur toutes les bandes HF radioamateur, y compris le 11m.
J\'ai noté d\'excellentes performances en 11m et 20m avec de très bons reports (59+10db de Marseille dans le nord France avec 50W), un peu plus moyen (58/59) sur 40m (normal), mais ca reste bon. Le SWR s\'ajuste effectivement facilement et rapidement a moins de 1.5:1 avec la bague. Peut être une liaison directe de l\'embase 160mm a la masse de carrosserie améliorera encore, mais c\'est déja satisfaisant.
L\'antenne est bien robuste et facile a régler. Je recommande pour les OM cherchant une solution simple et rapide pour du mobile arrêté. Je range l\'antenne de 2.6m montée sur son embase entre le coffre et le long des sièges de ma voiture.
Aprés peut être une antenne filaire de 20m sera plus efficace sur le 40m, mais plus long a mettre en œuvre....
Comme toujours chez Passion Radio : envoie rapide et soigné :)
73 Fred F4LED Marseille
Une antenne qui est posée sur un camping-car, à l’avant sur le capot moteur ( seul pièce métallique du véhicule ) . L’antenne fait bien son travail et facile à régler juste le 10m, pas réussi entre 28000 et 29000 à aller en dessous de 2,5 de ROS ( réglage au MFJ ) le creux est au dessus de 31MHz …….
Cellule du véhicule ? mauvais contre poids du capot moteur ? Je ferais un test avec deux ou trois radians !
Les autres bandes impec, très bien sûr 17, 15 et 12, bon sur 20, ça va bof sur 40 et 30….
Tres bonne antenne ,mais encombrante à cause des brins.Elle se regle tres bien sur toutes les bandes HF.que du bonheur en sota et pota.A customiser comme je vais faire .
C'est une excellente antenne pour du portable
Bonjour,
Oubli de ma part en ce qui concerne le "retour" d'infos.
En premier, je tiens à vous remercier pour la rapidité de l'envoi et du service. Le colis est arrivé en très bon état et bien emballé !
Pour ce qui est de l'aérien précité, il excellent et satisfait pleinement mes attentes ( sota montagne et bord de mer) ...
Cordiales salutations.
D.R.P.
Les performances de l'antenne sont très intéressantes pour le prix. J'ai mesuré un VSWR maximal de 1.6:1 à 7MHz et un VSWR minimal à 1.05:1 à 21MHz. Je n'ai pas mesuré l'antenne avec le brin pour le 50MHz. Un tuner d'antenne permettrait d'atteindre de meilleures performances pour le bas de la bande mais n'est pas obligatoire.
L'echelle de réglage sur la base de l'antenne semble aussi cohérente avec ce qu'indique le manuel.
Difficile de trouver la notice explicative pour la Komunica PRO-2-PLUS on ne trouve que le mode d'emploi de la Komunica PRO-2-PLUS-T qui n'est pas tout a fait la même ...et beaucoup plus chere
