MC-750 7-50MHz 100W HF portable antenna

rating Read the 6 reviews
Average rating: 5/5 Number of reviews: 6

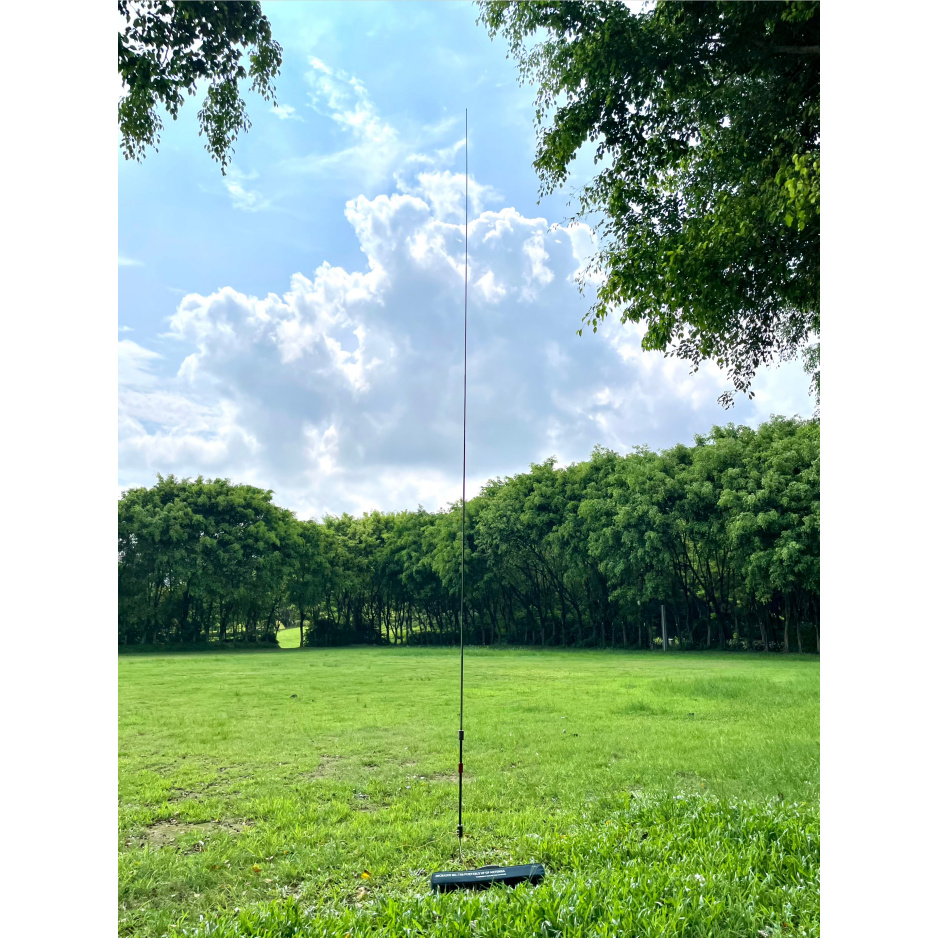

The MC-750 CHELEGANCE is a portable antenna kit supporting the 40-6 metre bands with a maximum power of 100 watts PEP with a 1/4 wavelength on 14MHz-50MHz.

For operation on 7MHz, the 7MHz coil supplied is required.

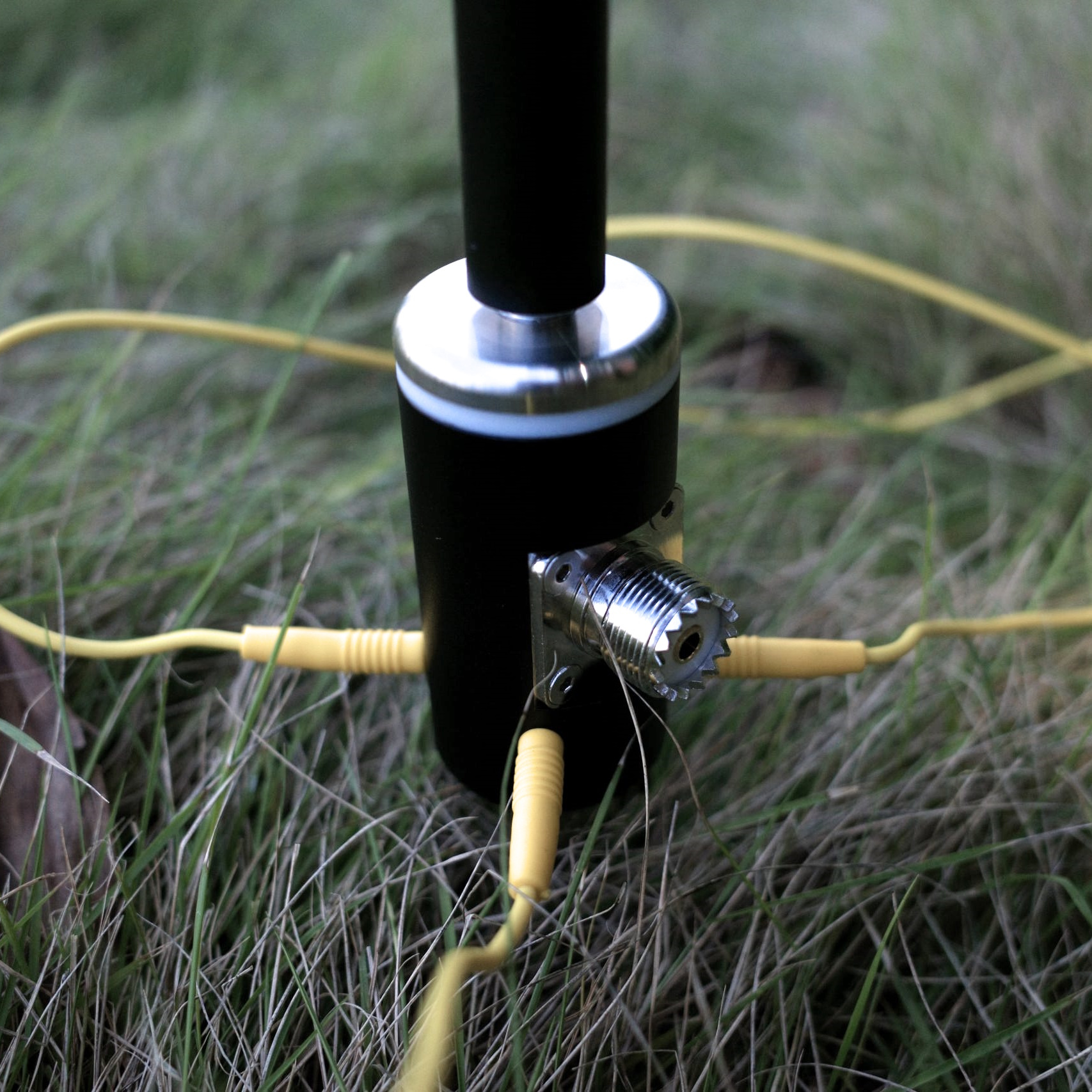

The base of the MC-750 antenna has counterpoise holes for radials to connect the supplied counterpoise wires.

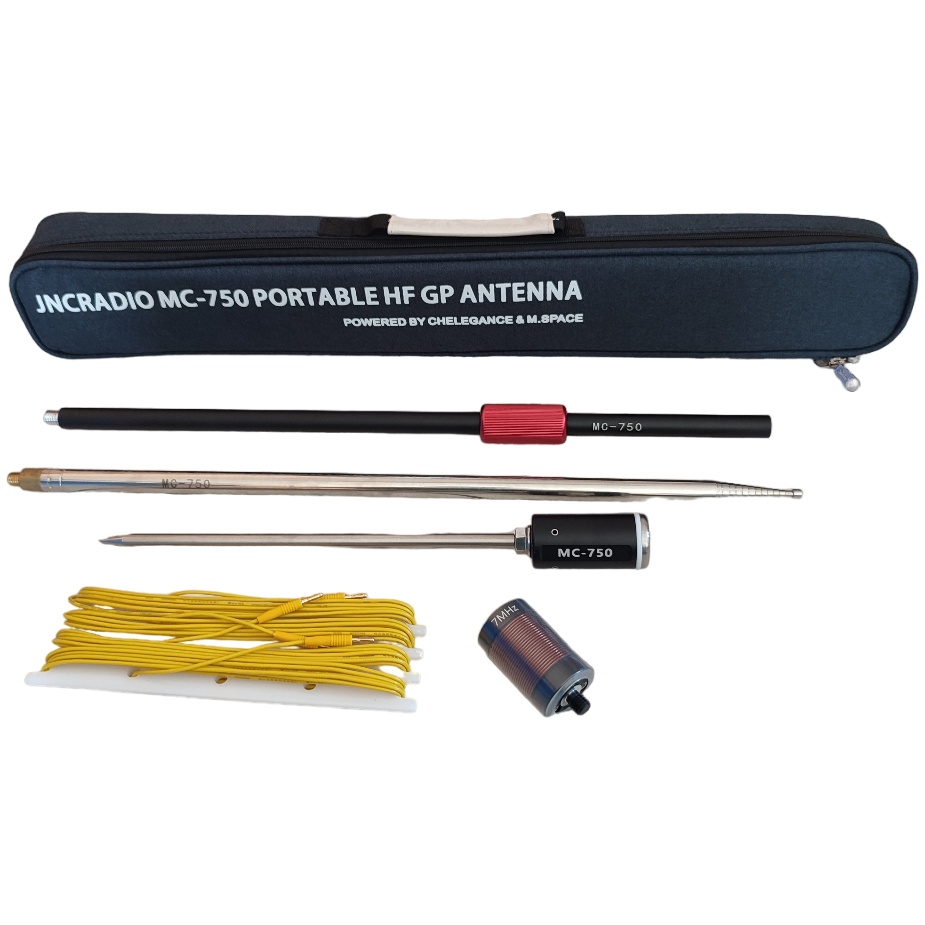

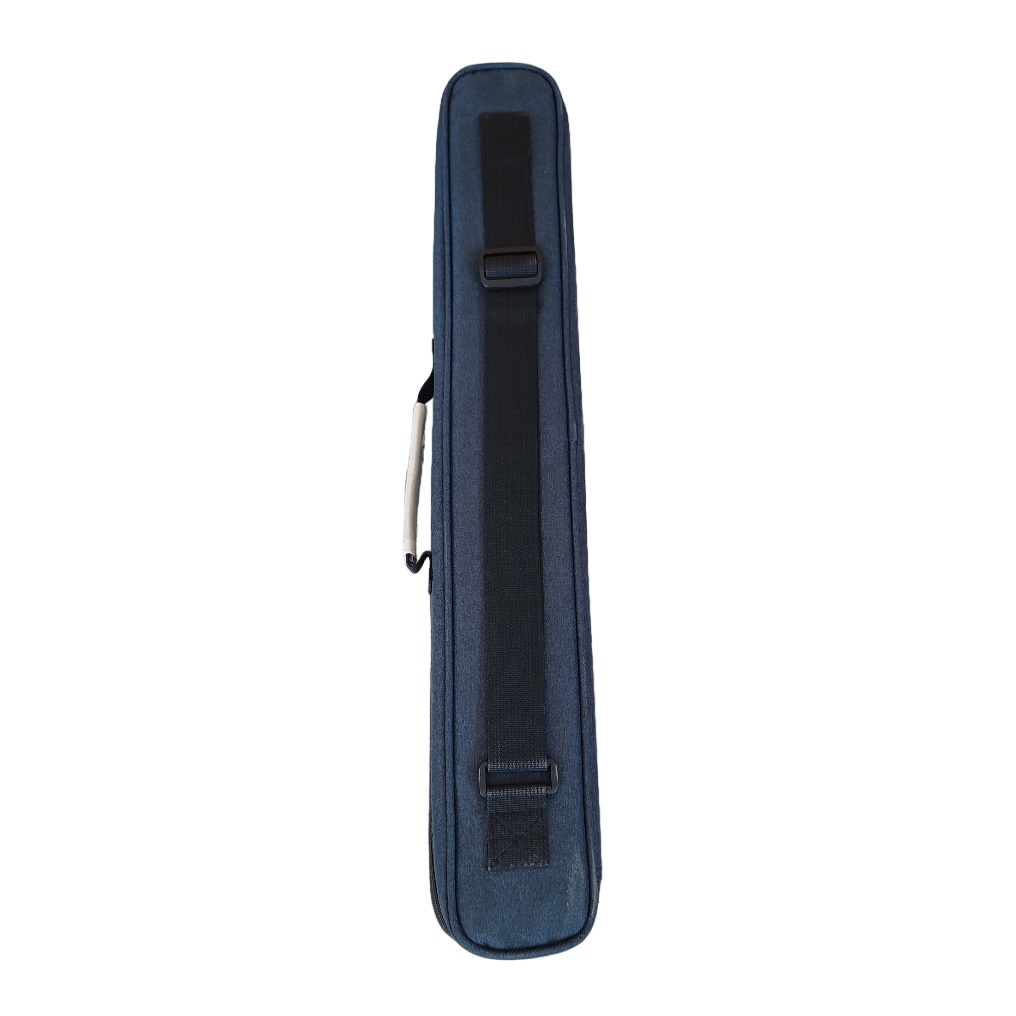

Supplied with: 1 MC-750 antenna, 1 earthing rod, 1 7MHz coil, 1 5.20m cable, 4 counterweight wires, 1 wire collection panel and 1 carry bag.

Optional and not included: Ground support tripod.

More details

219,00 € tax excl.

229,00 €

In stock

   5 Items

Download

Manuel MC-750 (EN)

7.78M

Manual MC-750 (FR)

791.13k

Data sheet

  • FREQUENCY RANGE: 7MHz-50MHz
  • POWER: 100 W PEP
  • LENGTH : 5.2m unfolded - 53 cm folded
  • IMPEDANCE : 50 OHMS
  • COUNTER WEIGHT: 4 X 3.5 m
  • WEIGHT : 1.8 Kg
  • BAG SIZE : 65X9X7

  • Customers also bought

    • 3/8 tripod for MC-750 and JPC-12 antennas
      39,90 €

      Reference: CHELEGANCE-TRIPOD-2169

      3/8 tripod for MC-750 and JPC-12 antennas

      CHELEGANCE tripod with M10 connector for MC-750 and JPC-12 antenna, compact, easy to set up and fold away, making it the ideal choice for those who need to transport it for POTA/SOTA. Simply connect

      39,90 €
    • 80M CHELEGANCE coil for MC-750 antenna
      58,00 €

      Reference: CHELEGANCE-ACC MC750-2285

      3.5 MHz 80m coil for CHELEGANCE MC-750 antenna

      Coil for the 80-metre band from 3.5 to 4.0 MHz for the CHELEGANCE MC-750 portable antenna. Made from high-quality copper wire, ensuring excellent conductivity. Abrasion-resistant, this coil is

      58,00 €
    • Low loss coaxial cable UHF Male (PL-259) KSR195 Passion Radio UHF (PL) CABLE-COAXIAL-UHF-M-1M-876
      9,90 €

      Reference: CABLE-COAXIAL-UHF-M-1M-876

      Low-loss coaxial cable extension UHF Male (PL-259) KSR195

      UHF Male - UHF Male coaxial cable extension with KSR195 low-loss 50 ohm coaxial cable for use from 0 to 6 GHz. Available lengths: 50cm, 1, 2, 3, 5 or 10, 15 and 20 metresConnector 1: UHF Male

      9,90 €
    • Car antenna 144-430Mhz AZ506 Diamond Slim Gainer
      47,90 €

      Reference: DIAMOND-AZ506FX-SOUPLE-124

      Car antenna 144-430Mhz AZ506 Diamond Slim Gainer

      High quality screw whip antenna with PL259 for car, from Diamond Antennas & Slim Gainer and amateur radio bands 144/430MHz (2m/70cm).This antenna measures 67cm and exists in 2 versions of

      47,90 €

  • We also recommend

    • CHA MPAS 2.0 Chameleon Ant
      749,00 €

      Reference: CHA-ANT-PACK-MPAS-BPACK-1561

      Modular portable antenna 160M - 6M Chameleon MPAS 2.0 + backpack

      The portable and modular antenna CHAMELEON MPAS 2.0 (Modular Portable Antenna System) is a concept allowing the radio operator to configure and deploy an antenna system in numerous configurations and

      749,00 €
    • SPX-100 portable 9-band HF Moonraker antenna
      62,00 €

      Reference: MOON-12-101-SPX100-2102

      SPX-100 portable 9-band HF Moonraker antenna

      Moonraker's SPX-100 antenna is compatible for mobile, portable, home or outdoor use. With its unique 10-section telescopic whip section, it folds down to just 47cm to fit neatly into a suitcase for HF

      62,00 €
    • HF Scanking Antenna Discone 0.05 to 2000 MHz Moonraker
      112,00 €

      Reference: MOON-11-554-DISCONE-2116

      HF Scanking Antenna Discone 0.05 to 2000 MHz Moonraker

      Large antenna for all HF/VHF and UHF! Ideal for listeners who want short-wave but don't have space for a long wire. The central radiator features a helical wire encapsulated in fibreglass to receive

      112,00 €
    • 3/8 tripod for MC-750 and JPC-12 antennas
      39,90 €

      Reference: CHELEGANCE-TRIPOD-2169

      3/8 tripod for MC-750 and JPC-12 antennas

      CHELEGANCE tripod with M10 connector for MC-750 and JPC-12 antenna, compact, easy to set up and fold away, making it the ideal choice for those who need to transport it for POTA/SOTA. Simply connect

      39,90 €

Reviews

Click here to leave a review

rating 5
antenne MC 750
Bonjour, concernant cette antenne je suis très agréablement surpris sur 40 et 80m avec les bobines qui vont bien. j'ai une très bonne qualité en réception et même en émission, des contrées que je n’entendait pas et ou l'on ne m'entendait pas. Coté ROS c'est impeccable: 1.1, pas besoin de coupleur d'antenne. tout est parfait
rating 5
Qualitatif
Antenne très bien finie. Reste plus qu’à la tester sur le terrain mais les retours des copains en sont que très bien
rating 5
Good product
At first deployment QSO with Japan and S Korea in 10m.
Very pleased by the antenna.
I ordered the 80m coil also.
73!
rating 5
Excellente verticale pour le sota
Une antenne que j'utilise du 80 au 10m, sans coupleur, l'accord est parfait. De très bonne qualité et un faible encombrement. Elle se déploie en 2mn. Et peu même être utilisé à l'arrêt sur un véhicule, voir sur mon qrz.com
rating 5
Nickel
Produit nickel conforme à la description
rating 5
Excellente antenne portable
Je recommande ce produit, qualité, facilité d\'emploi, parfait pour mes sorties.
Swr: 1.2 sur 20m sans réglage (juste en respectant les marques sur le brin).
Comment sera cette antenne dans le temps ? à manipuler avec précaution.
Je la recommande vivement.
