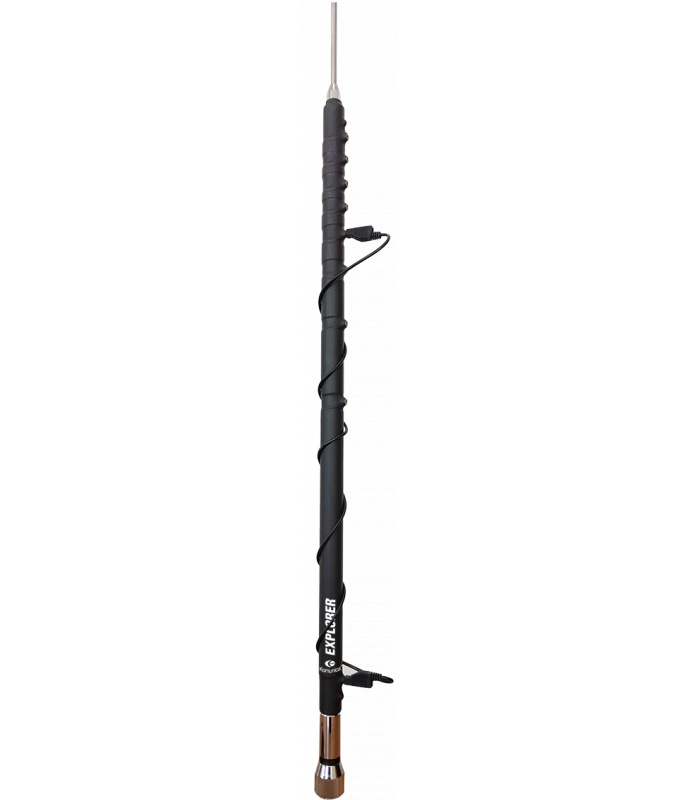

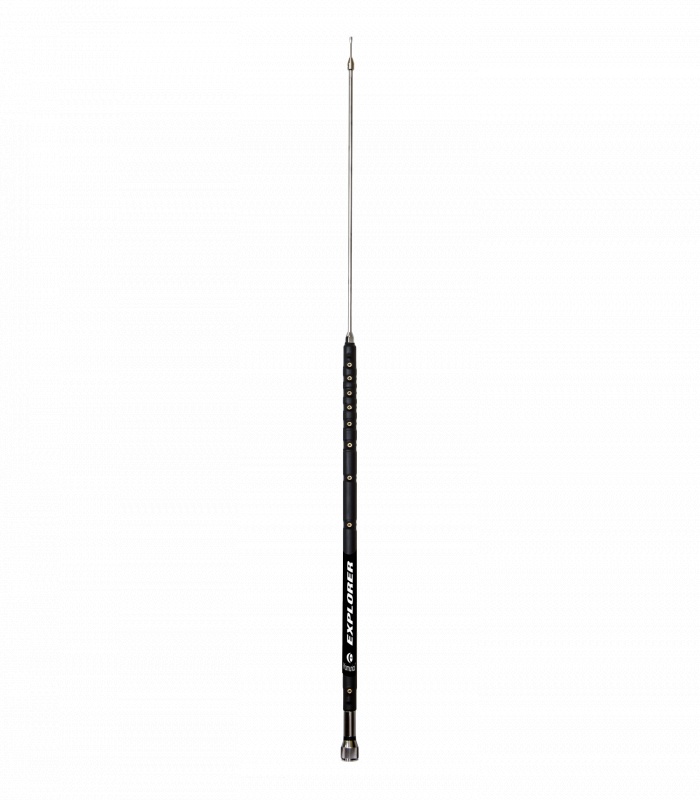

12-band mobile antenna HF-EXPLORER-3 + air band 118-136Mhz

Read the review

Average rating: 5/5 Number of reviews: 1

Multiband antenna from 3.5 to 145Mhz Komunica HF-EXPLORER-3 for portable use on the HF bands 80/40/20/17/15/12/11/10/6m as well as on the 2m band (145Mhz) and the aviation band 118-136Mhz, in transmission and reception.

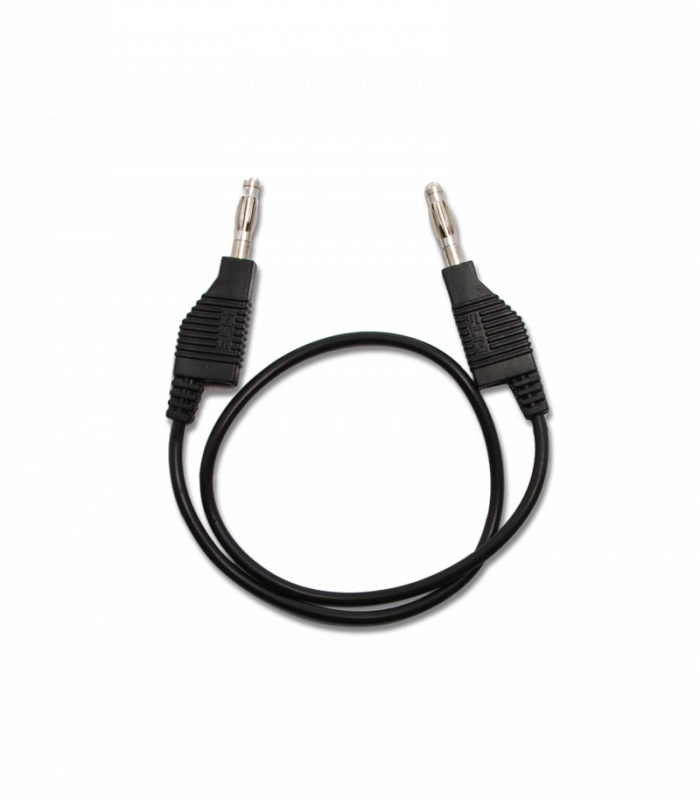

Adjustable by telescopic wire and banana plug.

RX and TX frequencies:
80 m 3,50 MHz
40 m 7,00 MHz
20 m 14,00 MHz
17 m 18,00 MHz
15 m 21,00 MHz
12 m 24,90 MHz
11 m 27,00 MHz
10 m 28,50 MHz
6 m 50,00 MHz
2 m 144,5 MHz
Aviation band: 125Mhz (RX 118 to 136 MHz)
Max Power: 200W (SSB)
Height: 1,17 - 1,62m
Weight: 635g

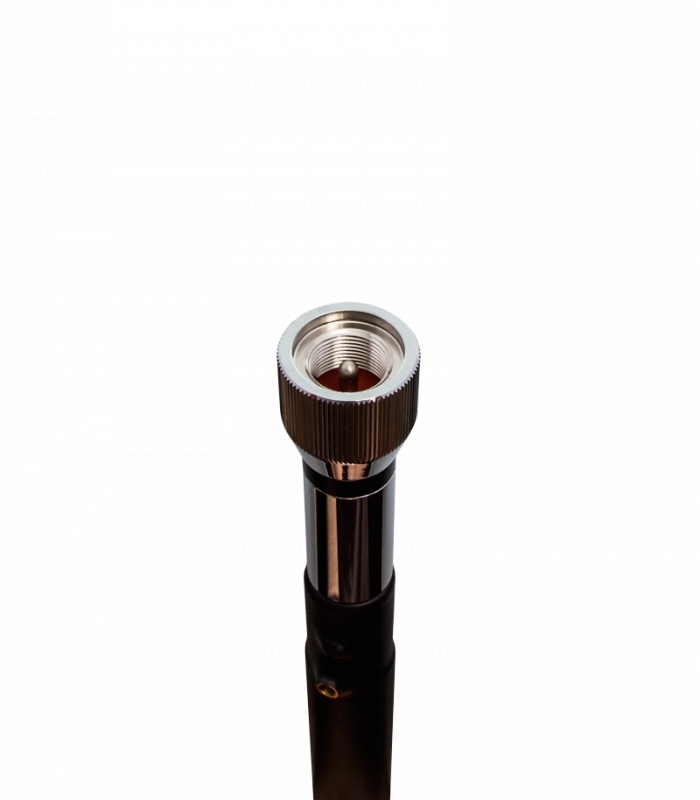

Connecteur: PL-259 (UHF Male)
Type: 1/4 wave reduced for the HF bands, 1/4 wave on 50Mhz, 144Mhz and the aviation band
ROS: Less than 1.5: 1
Gain: 0dBi
Impedance: 50Ω

Supplied with: Komunica HF-EXPLORER-3 antenna.

More details

Download

Manuel HF explorer 3 (FR)

219.25k

Data sheet

The Komunica HF-EXPLORER3 antenna can be used in portable and requires a good ground plane to function properly.

If a ground plane is not possible, in this case we recommend using a coaxial cable with a length of at least 10 meters to act as a counterweight.

The HF Explorer antenna can also be mounted on a metal balcony ensuring good conductivity and mass between the antenna and the balcony.

This antenna is not recommended for mobile use.
