50MHz 6m 4 elements Yagi antenna 6m4DX3 Antennas Amplifiers

rating No review at the moment

6m 4elements Yagi antenna 6m4DX3 for portable or stationary use

Prepare yourself for a new sunspot cycle 25 with 4 element 50 MHz Yagi. Enjoy the rising popularity and exciting contacts on the 6meter “Magic” band. 4 el. antenna can be used as portable or stationary. The antenna combines its strong 30 x 30 mm boom with a strong “Goliath” bracket which will make sure the antenna is always solid. Elements are tapered to reduce vibrations at high winds. Starting element diameter is 12 mm, and the middle part is 10 mm and 8 mm ends. Tapered elements will reduce the wind load.

Electrical and Mechanical specifications of 6m4DX3:

  • Frequency Range: 50 – 50.5 MHz
  • Free Space Forward Gain: 9.2 dBi
  • Front-to-Back Ratio: 20 dB
  • 3 dB Horizontal Beam-width: 58°
  • Polarization: Horizontal
  • Nominal Input Impedance: 50 Ohm
  • SWR Across Entire Band: < 1.2
  • Maximum Power Input: 1000 W
  • Matching Method: Direct feed through common mode choke (current balun)
  • Connector: N

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

203,28 € tax excl.

In stock

   2 Items

Data sheet

What 6m4DX3 mean?

6m – Magic band antenna
4 – Elements
DX – Intended for use in DX part of band 50-50.5MHz with excellent SWR
3 – 3m boom with extremely strong construction.

The antenna is pre-tuned, so there is no need to move, cut or use a rasp file for any element to get perfect SWR on the intended frequency range. As all our antennas are, this Ham Radio antenna has been designed with professional full-3D EM modeling software. The antenna is calculated with the influence of boom, balun, and connector… Once the antenna is up in the air, you should expect solid SWR across the whole designed range, true gain, and F/B as given in the table.

Four Elements on 6-meter band are situated on the antenna boom of just 2.92 meters long. Since this Ham Radio antenna has 4 elements it is very easy to set up. Up to 20 minutes is enough for assembling even if you see the antenna for the first time. Everything is labeled, just put number to number. The antenna can be assembled with cheap hand tools, as well as with power tools.

For DX hunters, it is good for the E-sporadic season since when there is an opening you don’t need long antennas. The antenna has the best gain for its boom size, and excellent F/B.

Everything is included in the antenna box: Antenna, balun with connector, and bracket. Yours is just to assemble and have fun!

The maximum power input is 1000 W.

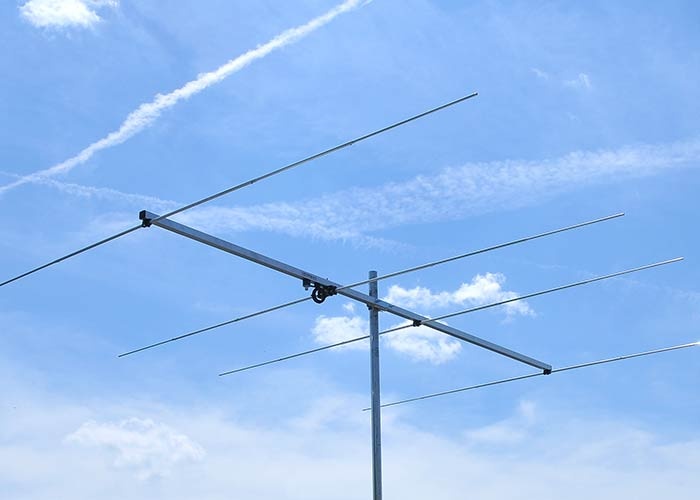

6m4DX3 50MHz 4elements Yagi Antenna Portable

Electrical and Mechanical specifications of 6m4DX3

Frequency Range: 50 – 50.5 MHz
Free Space Forward Gain: 9.2 dBi
Front-to-Back Ratio: 20 dB
3 dB Horizontal Beam-width: 58°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 1000 W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

Mechanical Specifications of 6m4DX3 4element antenna:

Number of Elements: 4
Elements Diameter: 12 mm, extensions 10 mm and 8 mm
Dipole Diameter: 12 mm, extensions 10 mm and 8 mm
Longest Element: 3.1 meter
Element Mounting Position: Below the boom
Balun and Connector: Included
Boom Length: 2.92 meter
Boom Size: 30 x 30 mm
Turning Radius: 2.1 meter
Number of Boom Pieces: 2
Guy rope support: Not necessary. Strong boom.
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 160 km/h
Net Weight: 3.4 kg
Gross Weight: 4.5 kg
Transportation Length: 1.49 meter

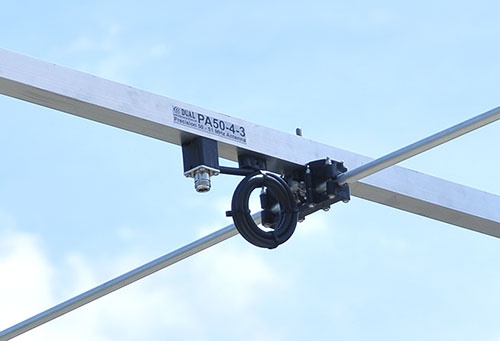

6m4DX3 – PA50-4-3B antenna connector, balun, and dipole view.

6m antenna PA50-4-3B balun connector view

The old name of the antenna PA50-4-3B.
