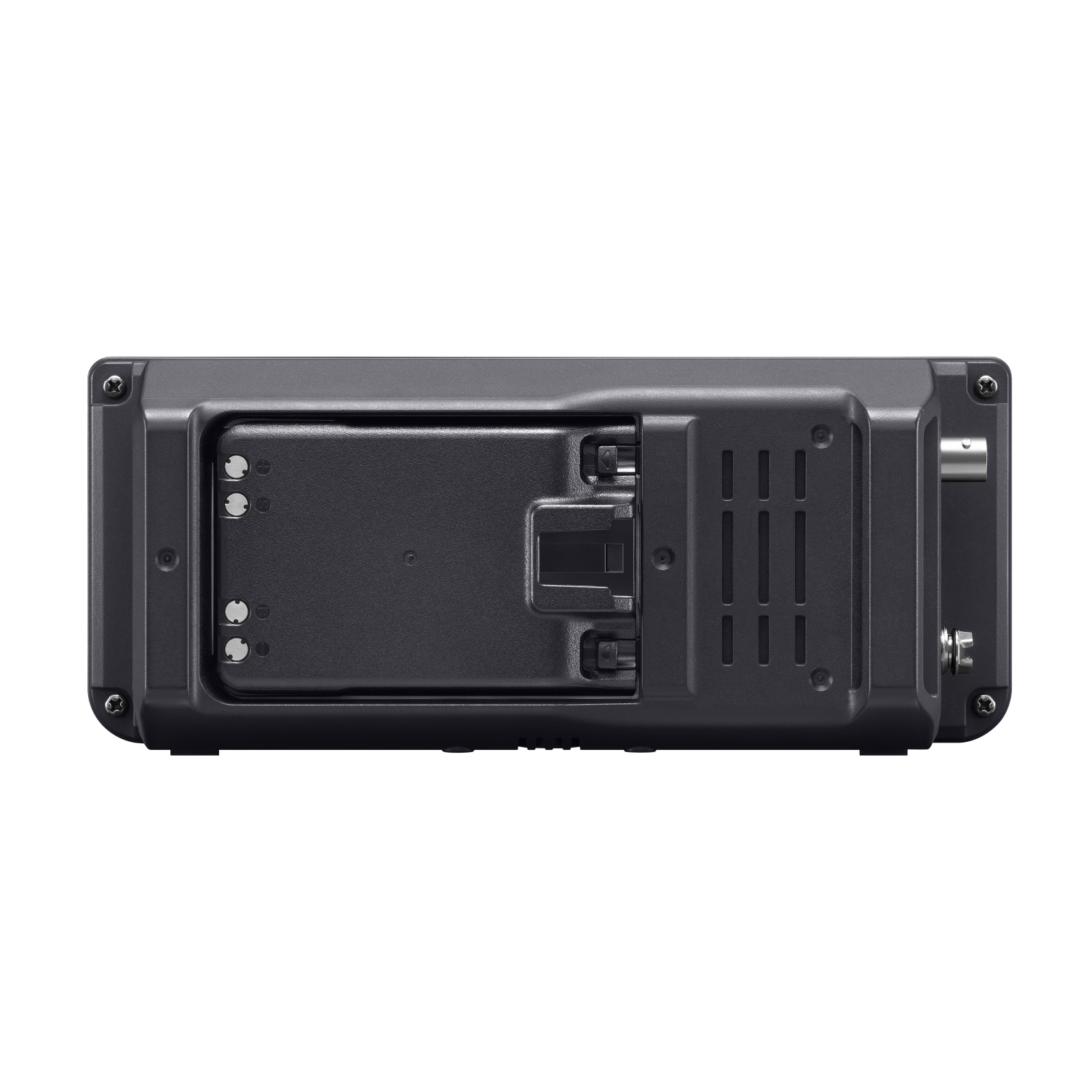

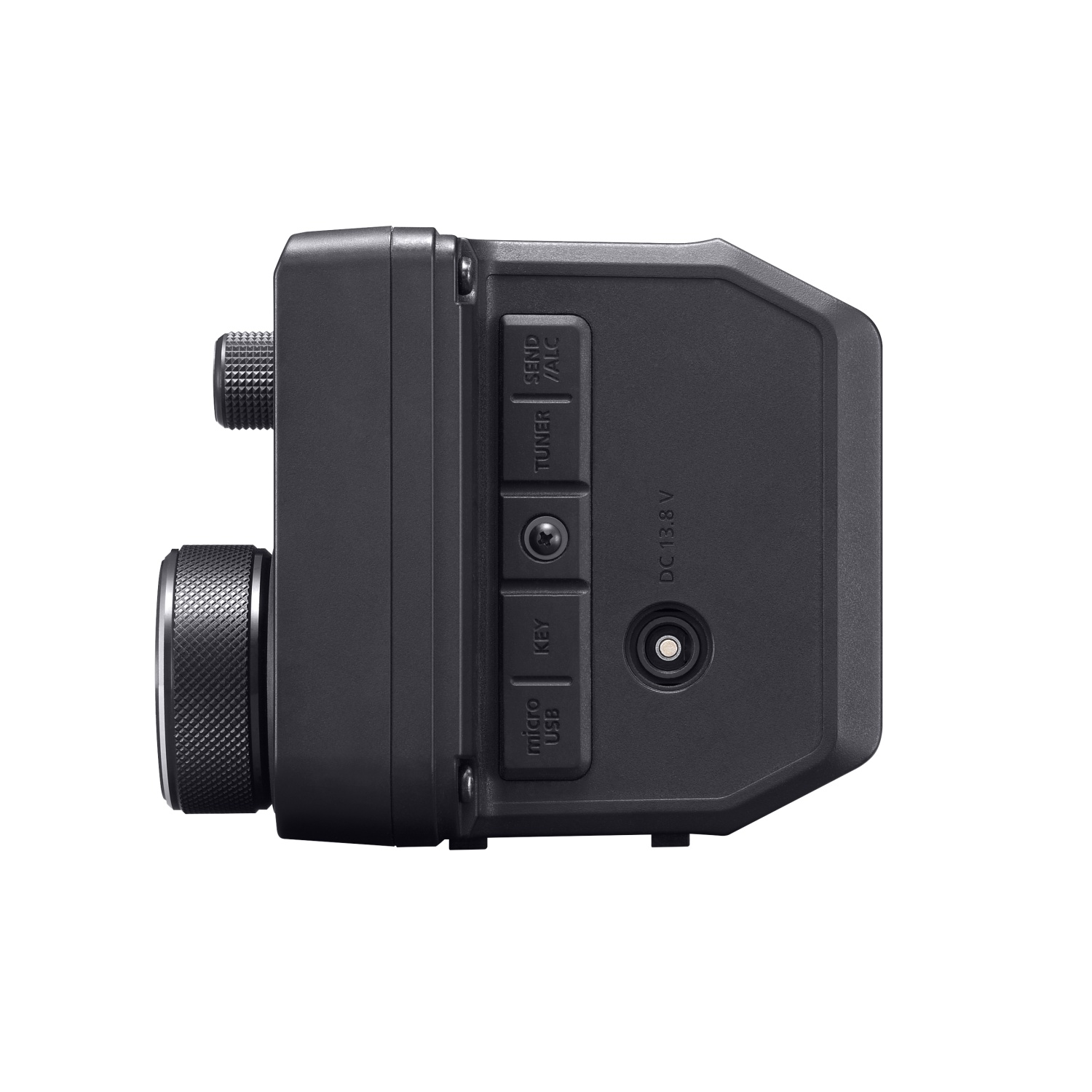

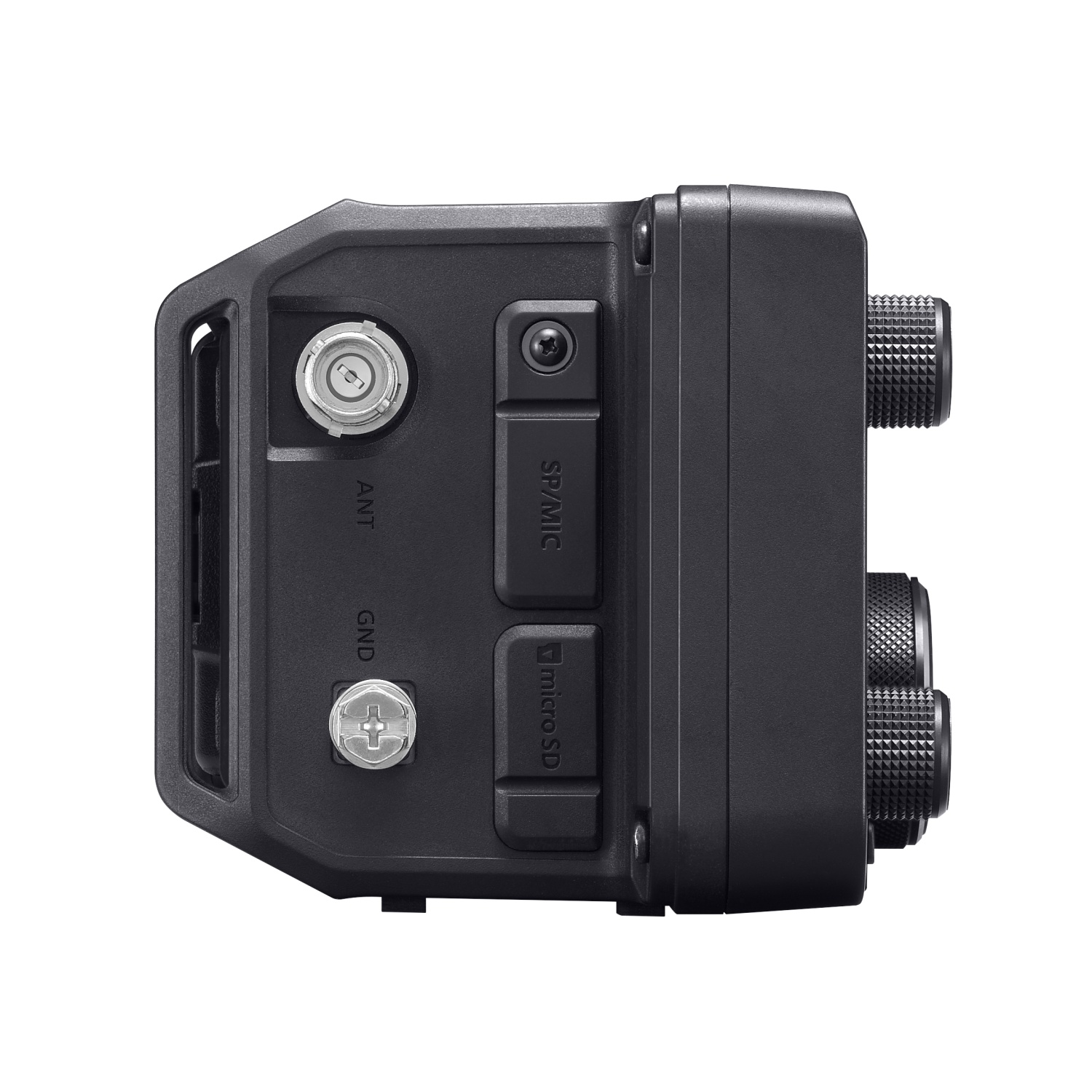

transceiver ICOM IC-705 SDR HF VHF UHF D-STAR View larger
Previous Next

ICOM France

ICOM-IC705-1109

New product

Japan

QRP transceiver ICOM IC-705 portable HF VHF UHF & D-STAR

rating Read the 8 reviews
Average rating: 5/5 Number of reviews: 8

Icom IC-705 SDR QRP mobile transceiver station for HF, 50, 144 and 430MHz amateur radio band, with 5W on battery and 10W on external power supply (13.8V), reception from 30Khz to 200Mhz and from 400 to 470Mhz, with color touch screen 4.3" and waterfall, all modes (D-STAR, DV, SSB, CW, RTTY and AM / FM), Bluetooth 4.2, WIFI, integrated GPS (GNSS) receiver, microSD and USB card slot, with female BNC antenna connector.

Supplied with: 1 ICOM IC705, 1 hand-held microphone with speaker HM-243, 1 BP-272 2000mAh battery, 1 DC power cable, instructions in French.

10g SAR exposure: 0.643 W / kg

More details

1 549,00 € tax excl.

1 569,00 €

In stock

   7 Items

Download

Manual IC-705 (FR)

ICOM IC-705 User Manual in French, version 2021. 10.2M

Manual IC705 (EN)

Full manual and documentation for IC705, 2021 version. 30.11M

Technical manual IC705

Diagram and technical manual for ICOM IC705 17.39M

Data sheet

Portable transceiver all HF modes, 50, 144 and 430 MHz
Modulation type: USB / LSB (J3E), CW (A1A), RTTY (F1B), AM (A3E), FM / WFM * (F2D / F3E) and DV (F7W)
* WFM: RX only
Direct RF sampling system (Full SDR)
Real-time spectrum analyzer with Waterfall
Large 4.3" color touchscreen
Power supply: 13.8V external input and 2000mAh BP-272 battery (included)
Bluetooth 4.2 (for CAT control, audio, headset)
Integrated Wi-Fi (for remote control, remote)
Integrated GPS
With D-STAR mode

Frequency range IC-705

Reception (RX):

RF Direct Sample Reception: 0.03 to 24.999999 MHz (no hole)
Reception at IF conversion sampling: 25 to 199.999999 MHz (no hole) and 400 to 470 MHz (no hole)
Intermediate frequency: 38.85 MHz ± 0.5

Transmission (TX):

1.810000 to 1.999999 Mhz
3,500,000 to 3,800,000 Mhz
7.000000 to 7.200000 Mhz
10,100000 to 10,150000 Mhz
14.000000 to 14.350000 Mhz
18.068000 to 18.168000 Mhz
21.000000 to 21.450000 Mhz
24.890000 to 24.990000 Mhz
28.000000 to 29.700000 Mhz
50.000000 to 52.000000 Mhz
144.000000 to 146.000000 Mhz
430.000000 to 440.000000 Mhz

Output power: 0.5 to 5W on battery and 0.5 to 10W on external power supply (13.8V)
Emission consumption: 2.5A (5W) and 3A (10W)
10g SAR: 0.643 W / kg
Dimensions: 200 (W) × 83.5 (H) × 82 (D)
Weight: 1.1 kg
CE RED standards and 2 year warranty

Using the XPA-125B external amplifier

The XIEGU XPA-125B 100W amplifier can be used with this transceiver, however ICOM recommends adding a switching diode, such as 1SS133, to prevent damage to the device and to ensure that the negative terminal of the relay power supply is connected to the GND terminal of the [SEND/ALC] socket, see page 75 of the manual for more information.

SOTA demonstration of IC-705

SOTA F/AB-232 "La Roche Olvéra" - 2651M, operated by Christophe F5UBH, with multi-dipole antenna 40m/30M and 20m, built by F4EGG.
