> Ham & radio equipment>HF Transceiver>Yaesu FT-710 FIELD HF SDR transceiver 160m to 6m 100W integrated CAT tuner
Yaesu FT-710 HF SDR 160m to 6m 100W integrated tuner CAT HP external View larger

YAESU

YAESU-FT710-FIELD-2405

New product

Japan

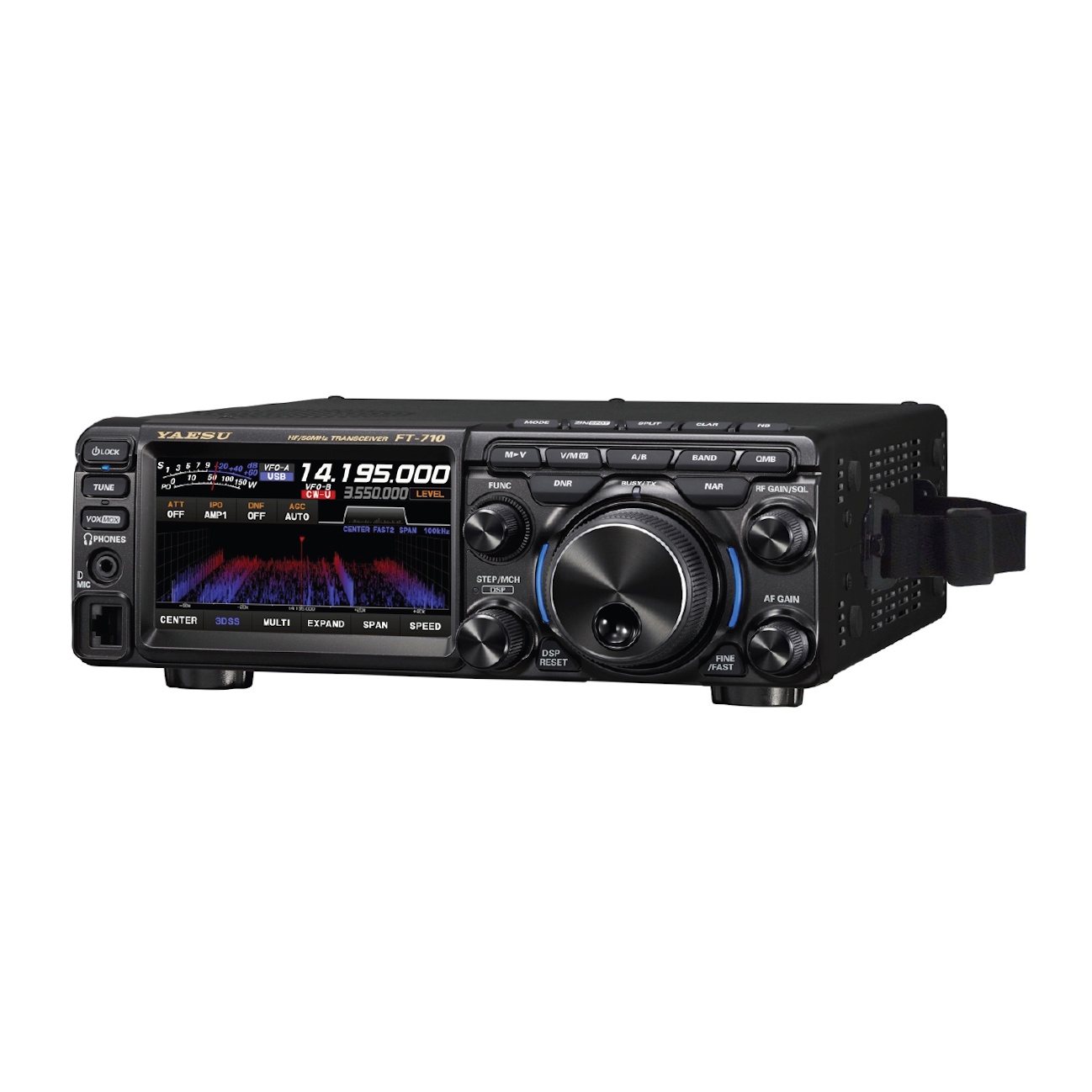

Yaesu FT-710 FIELD HF SDR transceiver 160m to 6m 100W integrated CAT tuner

rating Read the 5 reviews
Average rating: 5/5 Number of reviews: 5

The Yaesu FT-710 FIELD is the version without external loudspeaker and with a shoulder strap, of the new HF transceiver of the Yaesu SDR range, it covers all HF amateur radio bands from 160m to 6m with a power of 100W max.

  • Large 4.3-inch colour touch screen
  • 3D spectrum display
  • Bandpass filters
  • QRM eliminator function (DSP, NOTCH, DNF, DNR, COUNTOUR)
  • Integrated CAT control
  • Built-in automatic antenna tuner with 100 memories

Supplied with: 1 Yaesu FT-710 FIELD, 1 handheld microphone SSM-75E, 12V power cable with fuse, operating instructions in English.

Until 30 september 2024 receive a 100€ refund from Yaesu UK (form to fill out online).

5 years Yaesu warranty

More details

957,50 € tax excl.

In stock

   2 Items

Download

YAESU Cashback (FR)

Cashback offer by Yaesu UK, form to be completed online at yaesucashback.co.uk no later than 30 days after the date of purchase. 418.2k

YAESU cashback (EN)

Cashback offer by Yaesu UK, form to be completed online at yaesucashback.co.uk no later than 30 days after the date of purchase. 191.29k

Yaesu FT-710 Brochure

7.14M

Manuel FT-710 Yaesu (EN)

User manual in english for Yaesu FT-710 AESS. 6.72M

Manual FT-710 (FR)

Complete Yaesu FT710 user manual in French. 6.47M

Certification CE RED FT-710

CE RED declaration of conformity for the FT710 Europe. 159.79k

Firmware FT710 MARS MOD EU

June 2023 firmware version for FT-710 EU version (compatible Europe Mars mod) 5.31M

Update manual FW FT710 (EN)

Documentation for updating the firmware, in english. 1.64M

Update manual FW FT710 (FR)

Manual in french for updating the firmware. 2.16M

Data sheet

RX reception:
1.8 MHz to 29.699999 MHz
50 MHz - 53.999999 MHz

TX Transmission:
1.8 to 54 MHz (amateur radio bands only) + 5.351500 to 5.366500 MHz band
Modulation: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM)
Power: 5 to 100W (5 to 25W AM)
Power supply voltage: DC13.8V ±15%
Dimensions: 239 x 80 x 247mm
Weight : 4,5 kg
CE standards and 5 years warranty
