> Ham & radio equipment>HF Transceiver>HF ICOM Accessories>mAT-M200 : Automatic HF antenna tuner 1.8-54 MHz 200W for ICOM & Kenwood

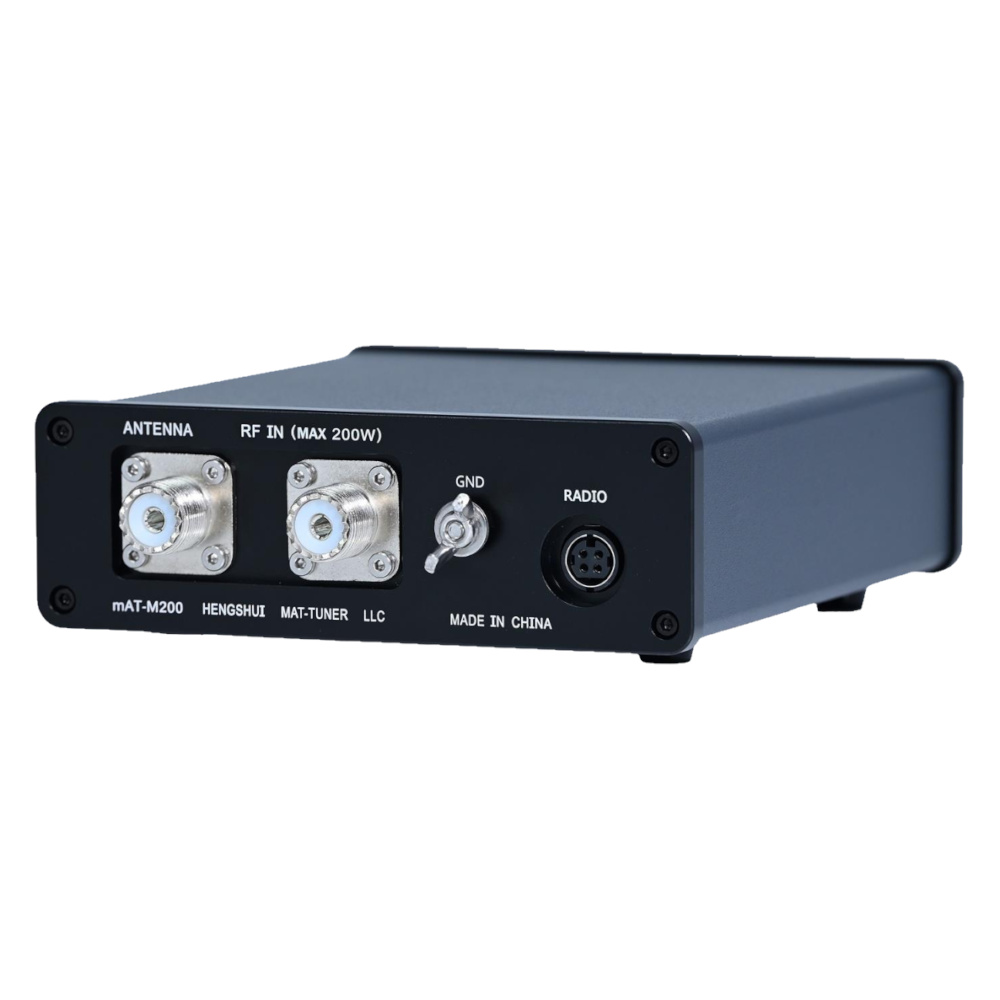

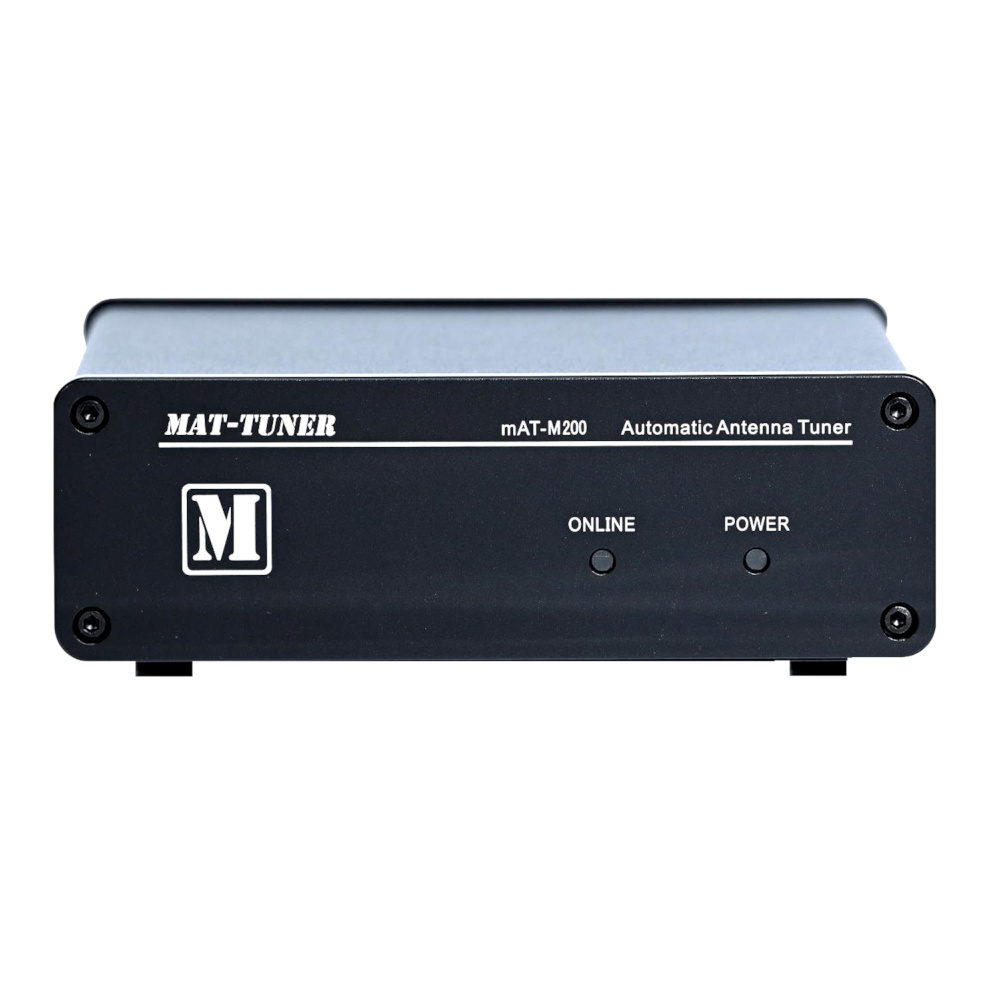

New mAT-M200 : Automatic HF antenna tuner 1.8-54 MHz 200W for ICOM & Kenwood View larger

MAT-TUNER

New product

China

mAT-M200 : Automatic HF antenna tuner 1.8-54 MHz 200W for ICOM & Kenwood

rating No review at the moment

The mAT-M200 is an automatic antenna tuner, external and compatible with ICOM brand HF transceivers that supports the original AH-3 or AH-4 Icom tuner and Kenwood HF sets supporting the AT-250 or AT-300, with RF power not exceeding 200W in SSB mode.

  • Maximum RF power: 200 watts in SSB mode, 100 watts in digital mode (FT8, CW, RTTY)
  • Frequencies: 1.8 to 54 MHz
  • Number of memories: 16,000
  • Impedance (Ω): 5-1500
  • Connection: mAT-CY (Kenwood) or mAT-CI (ICOM) control cable
  • Power source: Powered by the transmitter via the control cable
  • Compatible antenna types: Dipole, vertical, Yagis, or any coax-fed antenna
  • Tuning time: 0.1 - 5 seconds tuning time (fully tuned)
  • Power consumption: 500 mA
  • Dimensions: 20 x 13 x 4 cm
  • Weight: 0.8 kg

This tuner is suitable for use in FT8, CW and RTTY modes, with RF power up to 100 watts maximum in these modes.

Choose the cable included for ICOM or Kenwood when you add it to your shopping basket.

Supplied with: 1 mAT-M200 tuner, 1 MAT-CI control cable for ICOM or MAT-CK for Kenwood, user manual.

More details

299,48 € tax excl.

Out of stock, available in 7-10 days

  • Cable ICOM mAT-CI
  • Cable Kenwood mAT-CK

Download

Manual Tuner M200 (FR)

606.01k

Manual Tuner M200 (EN)

498.7k

Data sheet

Compatible ICOM HF radios with 4-pin tuner connector: IC-706, IC-703, IC-718, IC-7000, IC-7100, IC-7200, IC-7300, IC-7400, IC-7410, IC-746, IC-756, IC-7600, IC7610

Compatible Kenwood HF sets with 6-pin tuner connector: TRC-80, TK-80, TS-2000, TS-50, TS-450, TS-480 SAT, TS-570, TS-590, TS-850, TS-870, TS-890, TS-990

The transmitter powers the tuner via the mAT-CI (ICOM) or mAT-CK (Kenwood) cable, which communicates with the tuner and controls the operation of the tuner box. The tuner does not require an additional power supply. The tuner is compatible with ICOM and KENWOOD tuners, and users can easily control the tuner using the [TUNE] or [AT] buttons on the radio equipment panel.

For ICOM transceivers, this tuner will only work with transmitters that have a 4-pin tuner socket. If your transmitter does not have this socket, you will not be able to use it.

The same applies to KENWOOD transmitters, but their TUNER socket is 6-pin. When the tuner is switched on and started, it detects whether it is currently connected to an ICOM device or a KENWOOD device and matches it automatically.
