> Ham & radio equipment>HF Transceiver>HF accessories>Xiegu XPA125B Amplifier 0-30Mhz 100W + Tuner
Xiegu XPA125B Amplifier 0-30Mhz 100W + Tuner Xiegu HF accessories XIEGU-XPA125B-545 View larger

Xiegu

XIEGU-XPA125B-545

New product

China

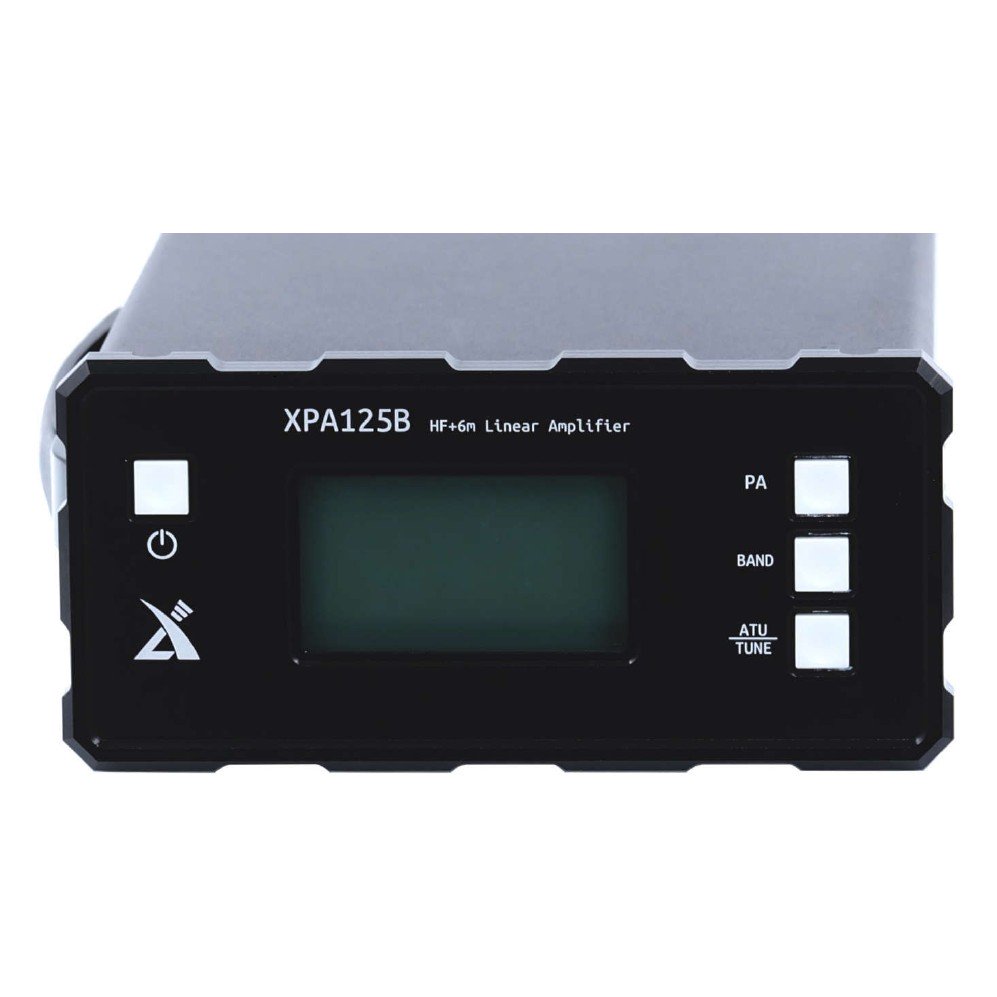

Xiegu XPA125B Amplifier 0-30Mhz 100W + Tuner

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

The Xiegu XPA125-B (new version) is a 100-125W amplifier for frequencies from 0.5 to 30Mhz and 50 to 54Mhz, with an integrated antenna tuner (1.8 to 30Mhz). It is equipped with protections: temperature, overcurrent, detection of input and output.

The XPA125-B HF amplifier can be used with any QRP HF transceiver (5-10 watt input) and is compatible with the Xiegu X108G and X5105 and the automatic bandwidth and output power control function ( ALC).

Supplied with: Xiegu XPA125B, power cable, communication cable, data cable, manual in English.

More details

695,00 € tax excl.

In stock

   3 Items

Download

Manual XPA-125B (EN)

Manual for Xiegu XPA-125B, in english. 1M

Manual XPA-125B (FR)

Manual for Xiegu XPA-125B, in french. 681.4k

Manual DE-19 Xiegu (FR)

In French. 627.48k

Manual DE-19 Xiegu (EN)

In english. 194.51k

DOC XPA125B

641.37k

Data sheet

Xiegu XPA125-B amplifier features

Amplified frequency range: 0.5 to 54MHz
Maximum output power: 125W
Maximum operating ambient temperature: 55 ℃
Total gain: 13 dB (+ 2 dB)
Operating voltage: DC 12 ~ 14.5V
Emission consumption: 30A @ Max
Frequency range automatic tuning box: 1.8 to 30Mhz
Tuner's maximum tuning range: 14 to 500Ω
Dimension: 260 x 150 x 100 mm
Weight: 2.6 kg
2 years warrranty (except PA), CE & FCC.
