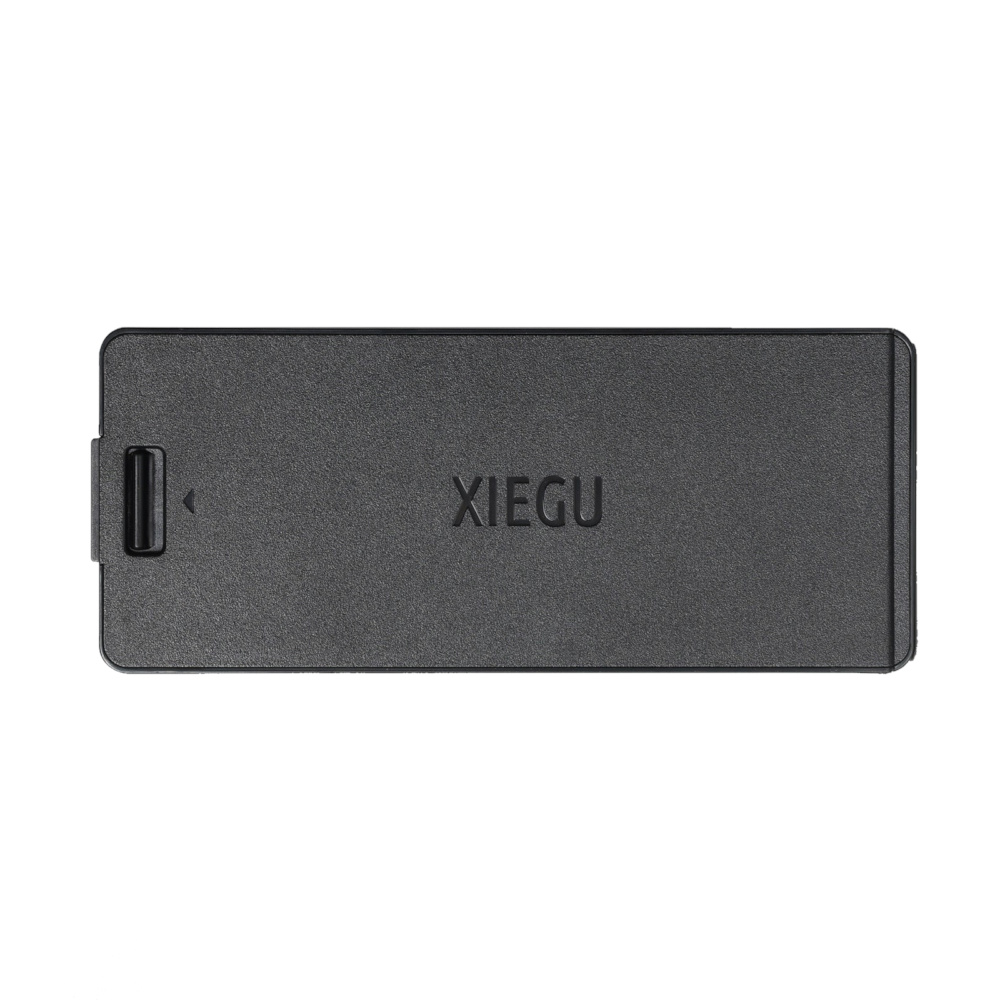

Original LiPo 3200mAh / 7.6V battery for XIEGU X6200

• HF/50MHz all modes (AM/FM/SSB) including DATA
• 10W transmit power with external power source, 5W with internal battery
• 4″ high resolution colour display, 800*480 pixel resolution
• Built-in rechargeable lithium battery, 12V/3.5 Ah
• Built-in automatic antenna tuner
• SWR measurement
• Voice memory
• CW memory
• Bluetooth and WiFi support (native for audio, wireless keyboard and mouse)
• Built-in USB adapter with sound card
• Second USB host port for mouse, keyboard and storage devices
• High stability TCXO internal clock source
• Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
• Frequency coverage: 0.5-30+50-54MHz (Transmission in amateur radio bands)
• Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E)，RTTY (F1B), AM (A3E)
• Minimum frequency step: 1 Hz
• External power supply voltage: 9-15V (DC)
• Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
• Antenna impedance: 50 Ohm
• Antenna connector type: BNC female
• Operating temperature: 0C to +50C
• Current consumption: RX: <330mA, TX: <3A

Receiver characteristics:

• Frequency coverage: 0.5-30+50-54MHz
• Receiving sensitivity (10dBS/N)
• (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
• SSB/CW: 0.20 uV
• FM 28-30, 50-54 MHz 0.22 uV
• AM 0.55-1.79 MHz: 10 uV
• AM 1.8-30 MHz: 2 uV
• AM 50-54 MHz: 2 uV
• ADC: 24 bit
• Spectrum display bandwidth: 96 kHz
• Spectrum refresh rate: 25 frames/s
• Spectrum noise floor : -140 dBm
• Audio output: 0.4W (4 Ohm ≥10% THD)
• BDR 2kHz (critical frequency suppression): ≥110 dB
• RMDR: ≥85 dB
• IMD3: ≥95 dB
• MDS: -138 dBm

Transmitter characteristics:

• Frequency range
• 1.8~2.0 MHz
• 3.5~3.9 MHz
• 5.3515~5.3665 MHz
• 7.0~7.2 MHz
• 10.1~10.15 MHz
• 14.0~14.35 MHz
• 18.068~18.168 MHz
• 21.0~21.45 MHz
• 24.89~24.99 MHz
• 28.0~29.7 MHz
• 50~54 MHz
• Output power: 10W (SSB/CW/FM) @13.8VDC
• 2.5W (AM carrier wave) @13.8VDC
• Output power, internal battery: 5W
• 1.5W (AM carrier wave) @ battery
• Interference suppression: 1.8~29.6MHz: ≥50dB
• 50-54 MHz ≥60dB
• Carrier suppression: ≥50dB
• SSB frequency response: 300-2700Hz (-6dB)
• FM modulation swing; +/- 5kHz
• Microphone impedance: o.2-10k (600 Ohm typical)
• Antenna tuner tuning impedance range: 1:4.5
• Initial antenna tuner tuning time: ≥ 15s
• Antenna tuner memory recall time ≥ 0.2s
