> Ham & radio equipment>HF Transceiver>HF accessories>Complete original lithium battery + card for XIEGU X6100

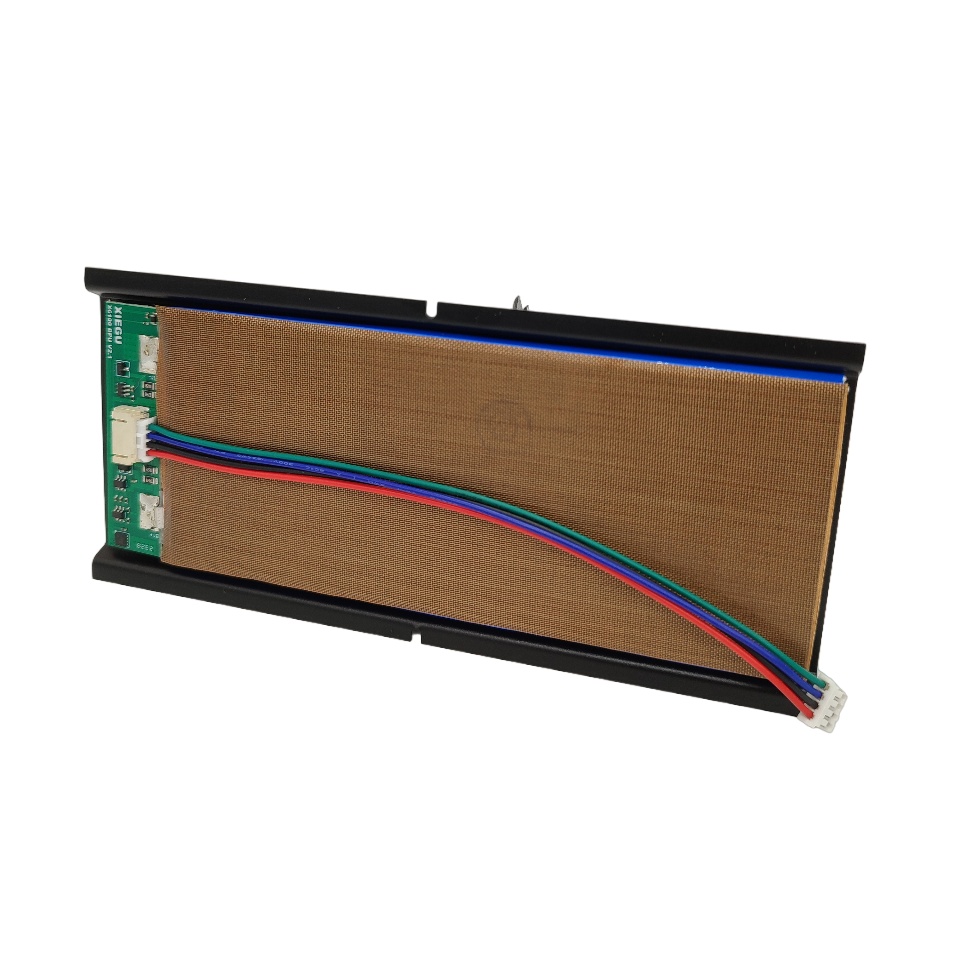

Battery for XIEGU X6100 transceiver View larger
Xiegu

XIEGU-BATT-X6100-2416

New product

China

Complete original lithium battery + card for XIEGU X6100

rating Read the review
Average rating: 5/5 Number of reviews: 1

Original replacement battery for the XIEGU X6100 transceiver.

Includes 2x 3.7V 3000mAh cells and electronic charge management board.

Supplied with: 1 official XIEGU battery for X6100.

More details

79,17 € tax excl.

Out of stock, available within 1 to 2 months

Data sheet

  • HF/50MHz all modes (AM/FM/SSB) including DATA
  • 10W transmit power with external power source, 5W with internal battery
  • 4″ high resolution colour display, 800*480 pixel resolution
  • Built-in rechargeable lithium battery, 12V/3.5 Ah
  • Built-in automatic antenna tuner
  • SWR measurement
  • Voice memory
  • CW memory
  • Bluetooth and WiFi support (native for audio, wireless keyboard and mouse)
  • Built-in USB adapter with sound card
  • Second USB host port for mouse, keyboard and storage devices
  • High stability TCXO internal clock source
  • Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
  • Frequency coverage: 0.5-30+50-54MHz (Transmission in amateur radio bands)
  • Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E)，RTTY (F1B), AM (A3E)
  • Minimum frequency step: 1 Hz
  • External power supply voltage: 9-15V (DC)
  • Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
  • Antenna impedance: 50 Ohm
  • Antenna connector type: BNC female
  • Operating temperature: 0C to +50C
  • Current consumption: RX: <330mA, TX: <3A

Receiver characteristics:

  • Frequency coverage: 0.5-30+50-54MHz
  • Receiving sensitivity (10dBS/N)
  • (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
  • SSB/CW: 0.20 uV
  • FM 28-30, 50-54 MHz 0.22 uV
  • AM 0.55-1.79 MHz: 10 uV
  • AM 1.8-30 MHz: 2 uV
  • AM 50-54 MHz: 2 uV
  • ADC: 24 bit
  • Spectrum display bandwidth: 96 kHz
  • Spectrum refresh rate: 25 frames/s
  • Spectrum noise floor : -140 dBm
  • Audio output: 0.4W (4 Ohm ≥10% THD)
  • BDR 2kHz (critical frequency suppression): ≥110 dB
  • RMDR: ≥85 dB
  • IMD3: ≥95 dB
  • MDS: -138 dBm

Transmitter characteristics:

  • Frequency range
  • 1.8~2.0 MHz
  • 3.5~3.9 MHz
  • 5.3515~5.3665 MHz
  • 7.0~7.2 MHz
  • 10.1~10.15 MHz
  • 14.0~14.35 MHz
  • 18.068~18.168 MHz
  • 21.0~21.45 MHz
  • 24.89~24.99 MHz
  • 28.0~29.7 MHz
  • 50~54 MHz
  • Output power: 10W (SSB/CW/FM) @13.8VDC
  • 2.5W (AM carrier wave) @13.8VDC
  • Output power, internal battery: 5W
  • 1.5W (AM carrier wave) @ battery
  • Interference suppression: 1.8~29.6MHz: ≥50dB
  • 50-54 MHz ≥60dB
  • Carrier suppression: ≥50dB
  • SSB frequency response: 300-2700Hz (-6dB)
  • FM modulation swing; +/- 5kHz
  • Microphone impedance: o.2-10k (600 Ohm typical)
  • Antenna tuner tuning impedance range: 1:4.5
  • Initial antenna tuner tuning time: ≥ 15s
  • Antenna tuner memory recall time ≥ 0.2s
