> Radio Antennas>Mounting bracket>Mast Guying>Guy rope>Mastrant-M4 Premium guy rope 3.9mm 900 kg colour black

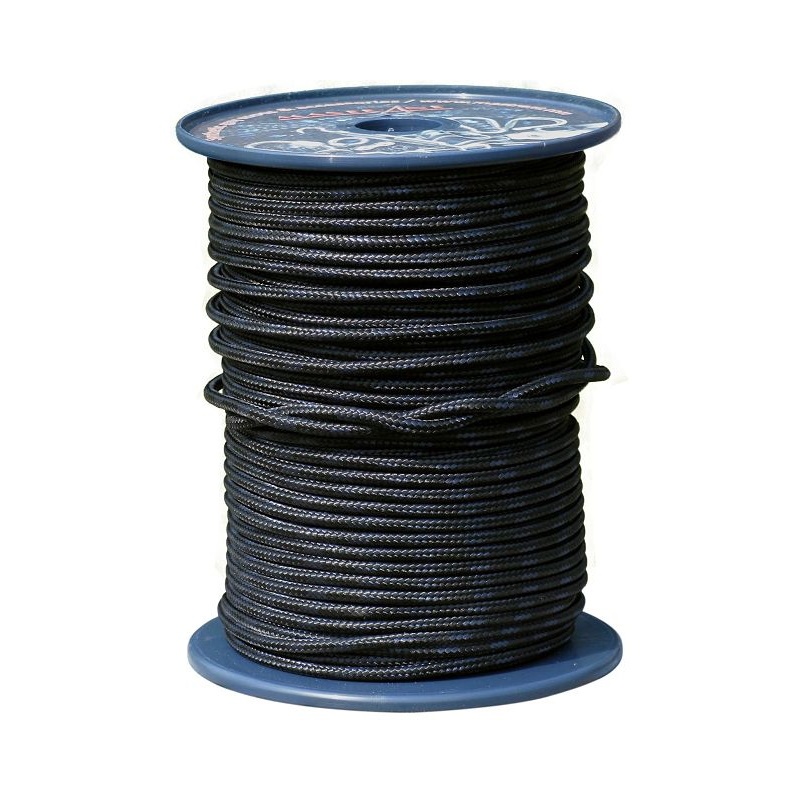

Mastrant-M4 Premium guy rope 100 meters 3.9mm Resistance 900 daN colour black View larger
Mastrant

New product

Czech Republic

Mastrant-M4 Premium guy rope 3.9mm 900 kg colour black

rating Read the review
Average rating: 5/5 Number of reviews: 1

MASTRANT-M4 is a 3.9mm premium rope, specially designed for guy ropes.

This high quality rope has a strength of 900 daN/kg, low stretch, excellent UV and moisture resistance.

Lightweight and extremely abrasion resistant, it is durable and non-conductive, thus having no impact on your antenna.

Composition: Braided rope with internal twisted wires
Core: 100% Dyneema DM20, parallel twisted wires
Covering: Polyester staple (only for ropes of 6mm diameter and above)
Outer cover: Polyester
Colour: black

More details

143,80 € tax excl.

In stock

   3 Items

  • 100m
  • 200m

Download

Guide Mastrant (FR)

Guide in French to choose your Mastrant guying antenna system and accessories. 994.98k

Guide Mastrant (EN)

Guide in English to choose your Mastrant guying antenna system and accessories. 1.02M

Guide Mastrant (DE)

Guide in German. 1.08M

Data sheet

  • Size : 5/32 inch
  • Diameter: 3.9 mm
  • Strength: 900 daN, ~kg
  • Working load 270 daN, ~kg
  • Weight: 11.4 g/m
  • Maximum elongation: 0.8 %

MASTRANT-M is the choice for those who need a thinner cable with high performance at an affordable price. Very high strength, negligible elongation, very low weight and high abrasion resistance are all attributes that make this rope perfect for rigging. It is a very durable rope with an exceptional performance/price ratio. It is of course non-conductive (no effect on your antenna).

MASTRANT-M ropes using the new Dyneema® Max technology (by DSM) maximises the reach of the world's strongest fibre. Mastrant® is a pioneer in the use of high performance synthetic ropes in permanent load applications. Designed specifically for deep water production facility mooring, DSM's new 'ultra high strength, low weight' Dyneema® DM20 fibre offers unrivalled strength, stiffness, durability and longevity.

Laboratory tests show that ropes made from DM20 fibre retain the properties of Dyneema®, even under long-term high tension. Key behavioural qualities such as high static strength and stiffness, exceptional resistance to abrasion, fatigue and creep enable a smaller, lighter rope to offer improved performance and operational benefits. Dyneema® Max technology has significantly better creep performance than SK78 and is therefore a new step forward compared to all other HMPEs (high modulus polyethylene). At the same time, it retains the good properties of Dyneema® fibre, which are appreciated by many users. This revolutionary product now offers all the advantages of ropes made of Dyneema®, including in the markets for permanently loaded applications such as tower, mast and antenna guy wires.

To help you choose the right guy ropes and the necessary and compatible accessories, see the installation diagrams and tables in the Mastrant guide, available in the"Download" section.
