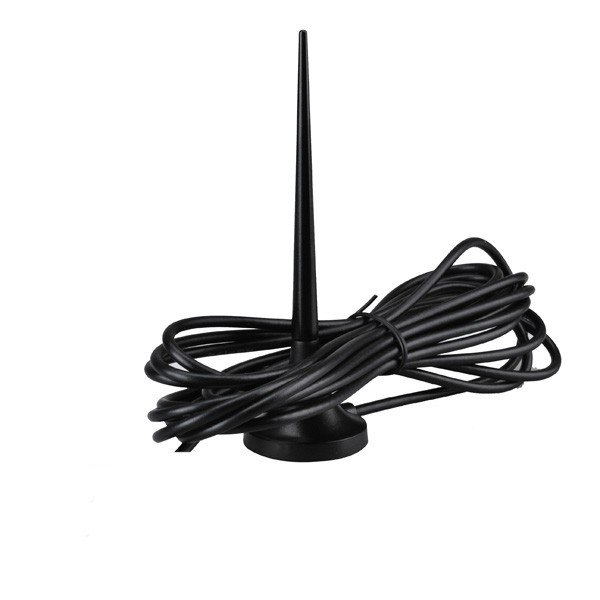

GSM 3G UMTS 3.5dBi Passion GSM Radio Magnetic Antenna ANT-GSM-MAG-9CM-277 View larger
Previous Next

RF KONNECT

ANT-GSM-MAG-9CM-277

New product

China

GSM 3G UMTS 3.5dBi magnetic antenna

rating No review at the moment

High efficiency antenna with 3.5dbi gain, SMA male connector for GSM and multiband devices 3G, UMTS, EDGE and GPRS.

Frequencies : 850-960Mhz and 1710-2170Mhz
GSM / GPRS / EDGE 850/900/1800 / 1900MHz
HSUPA / HSDPA / UMTS / 3G 2100MHz / 900MHz
CDMA 1900 MHz
Connector: SMA male
Length: 9 centimetres
Cable length: 3 metres

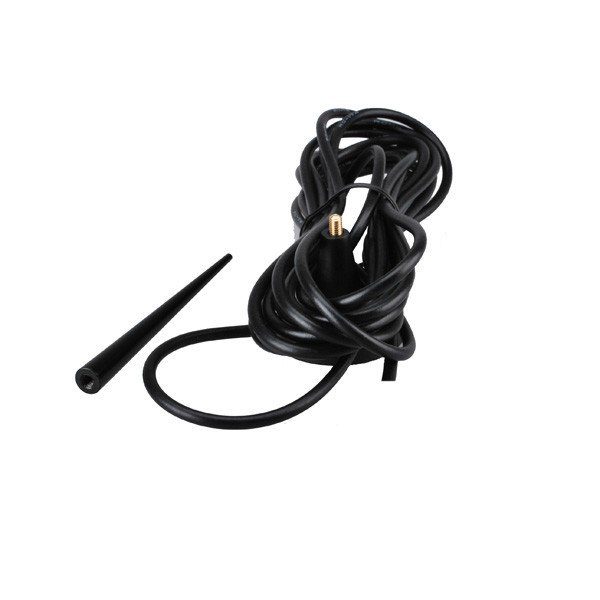

Supplied with: 1 3G antenna, magnetic base and cable with SMA connector

More details

13,25 € tax excl.

Out of stock, available within 1 month

Data sheet

3G/GSM antenna specifications with SMA

Frequencies : 850-960Mhz and 1710-2170Mhz
Gain : 3.5dBi
VSWR : ≤1.5
Connector : SMA male
Maximum power: 60W
Impedance: 50 Ohms
Polarisation type: Vertical
Length: 9cm
Cable length: 3 metres
Cable: RG 174 2.6mm
Magneticmagnetic mounting
Weight: 50g
