> Radio Antennas>GSM 3G 4G 5G>SMA 3G/4G/GSM/WIFI 5dBi antenna

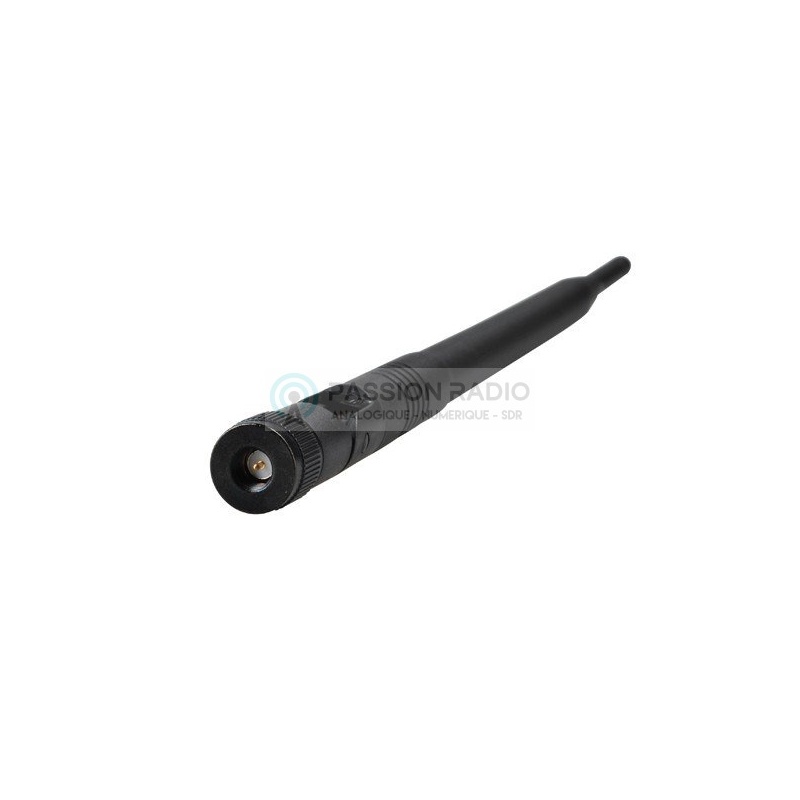

Antenna SMA 3G/4G/GSM/WIFI 5dBi Passion Radio GSM ANT-GSM-29CM-278 View larger
Previous Next

RF KONNECT

ANT-GSM-29CM-278

New product

China

SMA 3G/4G/GSM/WIFI 5dBi antenna

rating Read the review
Average rating: 5/5 Number of reviews: 1

High-efficiency antenna with 5dbi gain, SMA male connector for GSM and multiband devices 3G, 4G, UMTS, WIFI, EDGE and GPRS.

Frequencies : 690-960Mhz and 1710-2620MHz
Connector: SMA male
Length: 29 centimetres

Supplied with: 1 3G/4G antenna

More details

13,90 € tax excl.

In stock

   More than 10 Items

Data sheet

4G/3G/GSM antenna specifications with SMA

Frequencies : 690-960Mhz and 1710-2620MHz
GSM / GPRS / EDGE 850/900/1800 / 1900MHz
HSUPA / HSDPA / UMTS / 3G 2100MHz / 900MHz
CDMA 1900 MHz
4G / 2600Mhz
WiFi: 2400Mhz (2.4Ghz)
Gain: 5dBi
VSWR: ≤1.5
Connector: SMA male
Maximum power: 50W
Impedance: 50 Ohms
Polarisation type: Vertical
Length: 29cm
Weight: 40g
