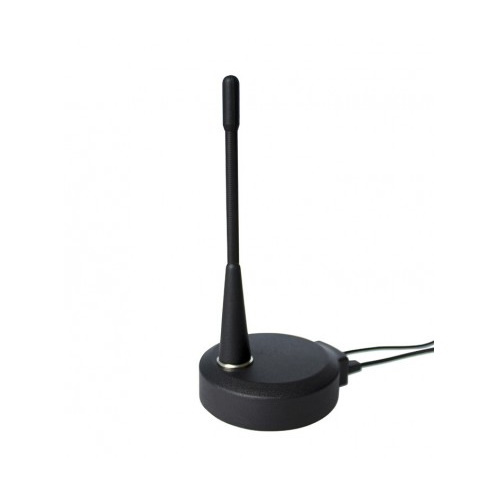

New MA-6202-1 UHF 380-470 Mhz TETRA antenna + GPS/GNSS + magnetic base and 2.5m cable View larger
Komunica

KOM-MA-6202-1-2986

New product

Spain

380-470 MHz TETRA UHF antenna + GPS/GNSS magnetic base and 2.5m cable

rating No review at the moment

Komunica 380-470 Mhz TETRA-UHF magnetic antenna (380-470MHz) + GPS-GNSS, 7.3cm magnetic base and 2.5m cable.

Supplied with: 1 Komunica MA-6202-2 antenna, original warranty.

More details

106,95 € tax excl.

In stock

   3 Items

Data sheet

  • Base dimensions: Ø:73x22 mm
  • Cap material: Polyamide 6
  • Base material: Zamac
  • Colour: Black
  • Mounting: Magnetic
  • Temperature: -40ºC - +85ºC
  • GPS technical data
  • Antenna type: Active planar patch
  • Impedance: 50 Ω
  • Centre frequency: 1575.42 MHz
  • Bandwidth: ±1.023 MHz
  • V.S.W.R: Less than 2.0
  • Polarisation: RHCP
  • Supply voltage: 2.7 ÷ 5.1
  • Current absorption: 12 ± 2mA at 2.7 V 26 ± 2mA at 5.1 V
  • Gain amplifier: 24 ± 2dB at 2.7 V 26 ± 2dB at 5.1 V
  • Patch antenna gain: 4.5 typ
  • Noise figure : 1.7 ÷ 2.1 dBi
  • Temperature: -30ºC ÷ +80ºC
  • Cable length: RG 174 mm. 2500 ± 20
  • Connector: SMA m.

UHF technical data

  • Antenna type: 1/4 wave mobile
  • Antenna impedance: 50 Ω
  • Frequency range: Adjustable from 380 to 470 MHz
  • Bandwidth: 30 MHz
  • Max. power Power: 25W
  • V.S.W.R: Less than 1.5
  • Polarisation: Vertical
  • Emission: Omnidirectional
  • Gain : 2.14 dBi
  • Stem length : 135±10 mm
  • Stem section : 1 mm
  • Cable length : RG 174 mm. 2500 ± 20
  • BNC male connector
