> Coaxial cables>EXTRAFLEX>Flexible low-loss 13 mm EXTRAFLEX13 M&P coaxial cable direct burial
Flexible, low-loss 12.7 mm EXTRAFLEX 13 M&P coaxial cable View larger
Messi & Paoloni

New product

Italy

Flexible low-loss 13 mm EXTRAFLEX13 M&P coaxial cable direct burial

rating Read the review
Average rating: 5/5 Number of reviews: 1

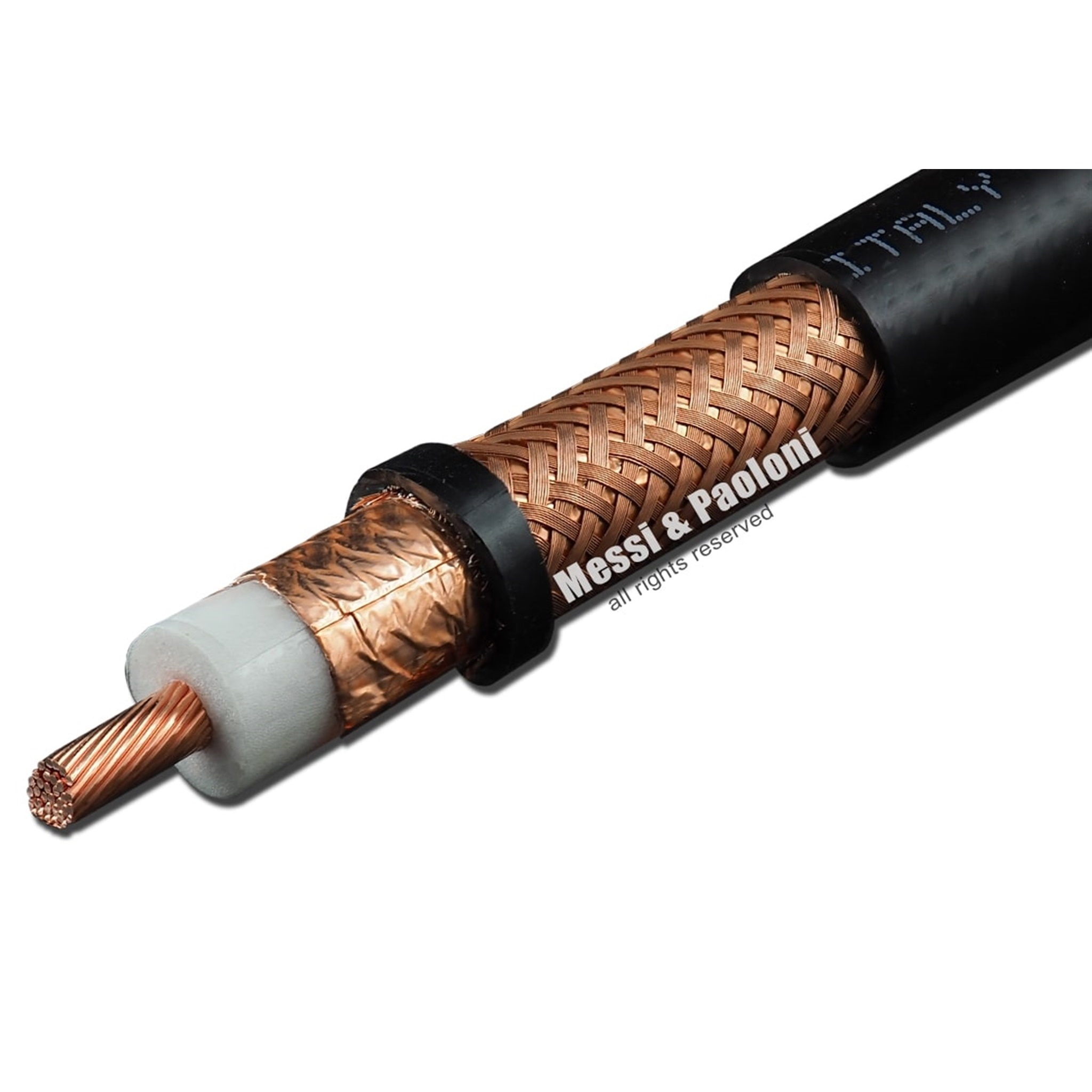

Messi & Paoloni coaxial cable with a diameter of 12.7 mm, M&P EXTRAFLEX 13, can be used for outdoor, direct burial, tight bends and rotating antennas.

Available in different sizes: 10m, 20m, 30m, 50m and 100m (choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 80 mm
Operating temperature : -40°C to +60°C
Capacitance: 75 pF/m ± 2
Velocity: 86%
Class: A++
Inner conductor resistance: 2 Ohm/Km
Outer conductor resistance: 11 Ohm/Km
Voltage test (spark test): 8 kV
Maximum peak power: 20000 W
CE and Rohs standards

Net weight on 100m: 17 Kg

PL259 (UHF-Male) or N-Male compatible connector available as an option.

More details

215,70 € tax excl.

In stock

   8 Items

  • 10m
  • 20m
  • 30m
  • 50m
  • 100m

Download

Données techniques Extraflex 13

127.43k

Data sheet

Attenuation at 20°C in dB/100m

  • 1,8 MHz 0,5
  • 3,5 MHz 0,6
  • 7 MHz 0,8
  • 10 MHz 1,0
  • 14 MHz 1,1
  • 21 MHz 1,3
  • 28 MHz 1,5
  • 50 MHz 2,0
  • 100 MHz 2,8
  • 144 MHz 3,6
  • 200 MHz 4,2
  • 400 MHz 6,1
  • 430 MHz 6,4
  • 800 MHz 9,0
  • 1000 MHz 10,1
  • 1296 MHz 11,7
  • 2400 MHz 16,6
  • 3000 MHz 18,9
  • 4000 MHz 22,4
  • 5000 MHz 25,6
  • 6000 MHz 28,7
  • 7000 MHz 31,7
  • 8000 MHz 34,5
  • 9000 MHz 37,5
  • 10.000 MHz 40,5
  • 12.000 MHz 46,0

Maximum power at 40°C depending on frequency

  • 1.8 MHz 14681W
  • 3.5 MHz 12650W
  • 7 MHz 9880W
  • 10 MHz 8321W
  • 14 MHz 7130W
  • 21 MHz 5732W
  • 28 MHz 4962W
  • 50 MHz 3873W
  • 100 MHz 2795W
  • 144 MHz 2396W
  • 200 MHz 2150W
  • 400 MHz 1486W
  • 430 MHz 1435W
  • 800 MHz 1022W
  • 1000 MHz 907W
  • 1296 MHz 786W
  • 2400 MHz 552W
  • 3000 MHz 487W
  • 4000 MHz 410W
  • 5000 MHz 358W
  • 6000 MHz 320W
  • 8000 MHz 266W
  • 10,000 MHz 227W
  • 12,000 MHz 200 W
