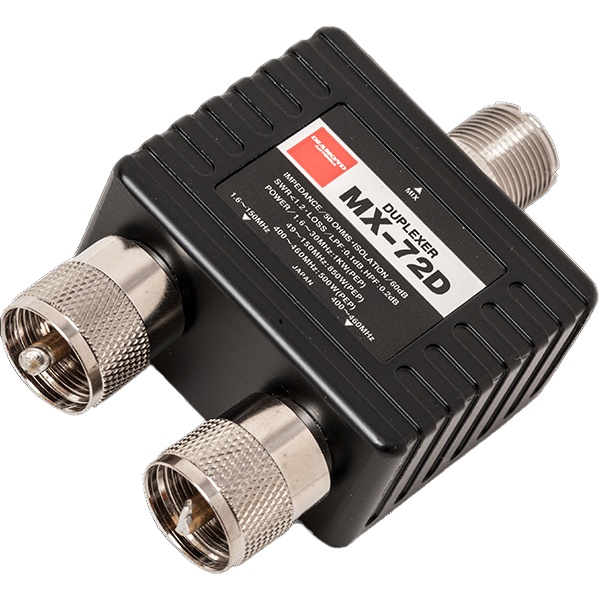

DIAMOND-MX72D Duplexer 1.6-30/140-150/400-460 Mhz
Read the reviewDiamond MX72D duplexer with PL-259 and SO-239 connector. Allows you to connect 1 antenna to 2 transceivers, or vice versa, 1 transceiver to 2 different antennas.
- Frequency (MHz): 1.6-30/140-150/400-460
- CW W: 400/150/100
- PEP W : 1KW/400/250
- Loss dB: .1/.1/.2
- Isolation dB : 60/60/60
- Mixing connector: SO-239
- Port connector: PL-259 (UHF-Male) /without cable
Delivered with: 1 MX-72D Diamond duplexer, original warranty.
Data sheet
Technicals specification Duplexer Diamond MX72H
Passband width: LPF/1.6 to 30MHz 49 to 150MHz, HPF/400 to 460MHz (LPF:1.6 to 225MHz, HPF: 340 to 1000MHz receiving only)
Power rating: 1.6 to 30MHz: 400W (CW)/1kW(PEP), 49 to 150MHz:150W (CW)/400W (PEP), 400 to 460MHz:100W (CW)/250W (PEP)
Insertion loss: LPF/Less than 0.15dB, HPF/Less than 0.25dB
Isolation:LPF:More than 60dB
Impedance:50ohms
VSWR:Less than 1.2:1
Connector: Mix-cable SO-239 (UHF Female), 144Mhz & 430Mhz PL-259 (UHF Male)
Coaxial cable: 5D-2VS (35cm)
Dimensions:46Wx25Hx57Dmm
Weight:220g
