DV4mini for D-STAR DMR C4FM DMR equipment DV4-MINI

View larger

Display all pictures

Reference: DV4-MINI

Condition: New product

DV4mini for D-STAR DMR C4FM

Read the 4 reviews

Average rating: 5/5 Number of reviews: 4

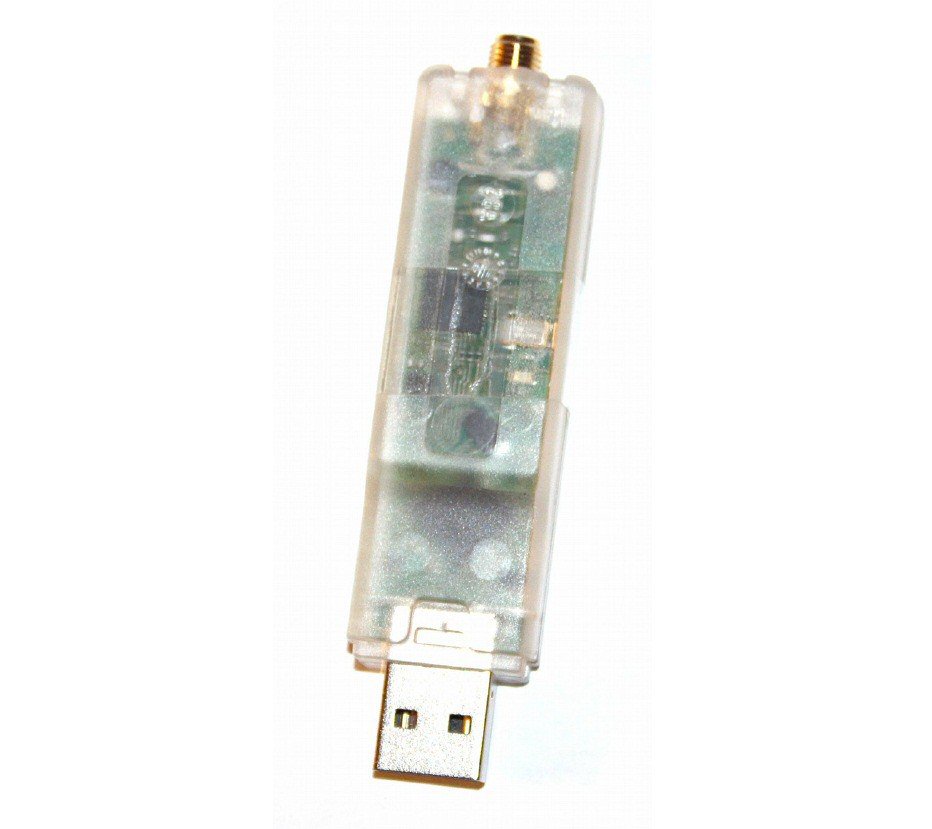

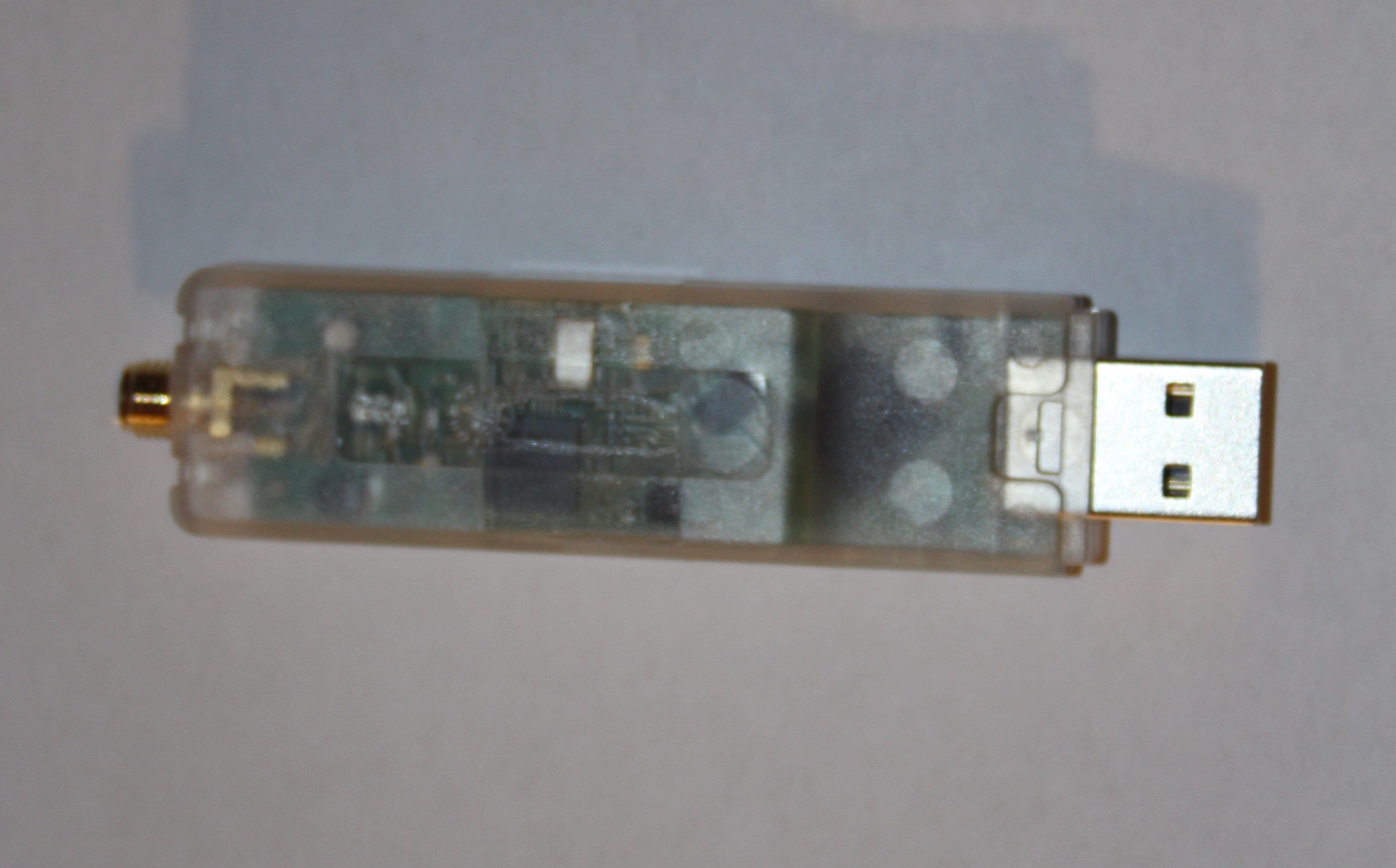

The DV4mini is a USB key that turns a computer into an hotspot for D-Star, DMR+ and BrandMeister, P25, C4FM system fusion & dPMR modes.

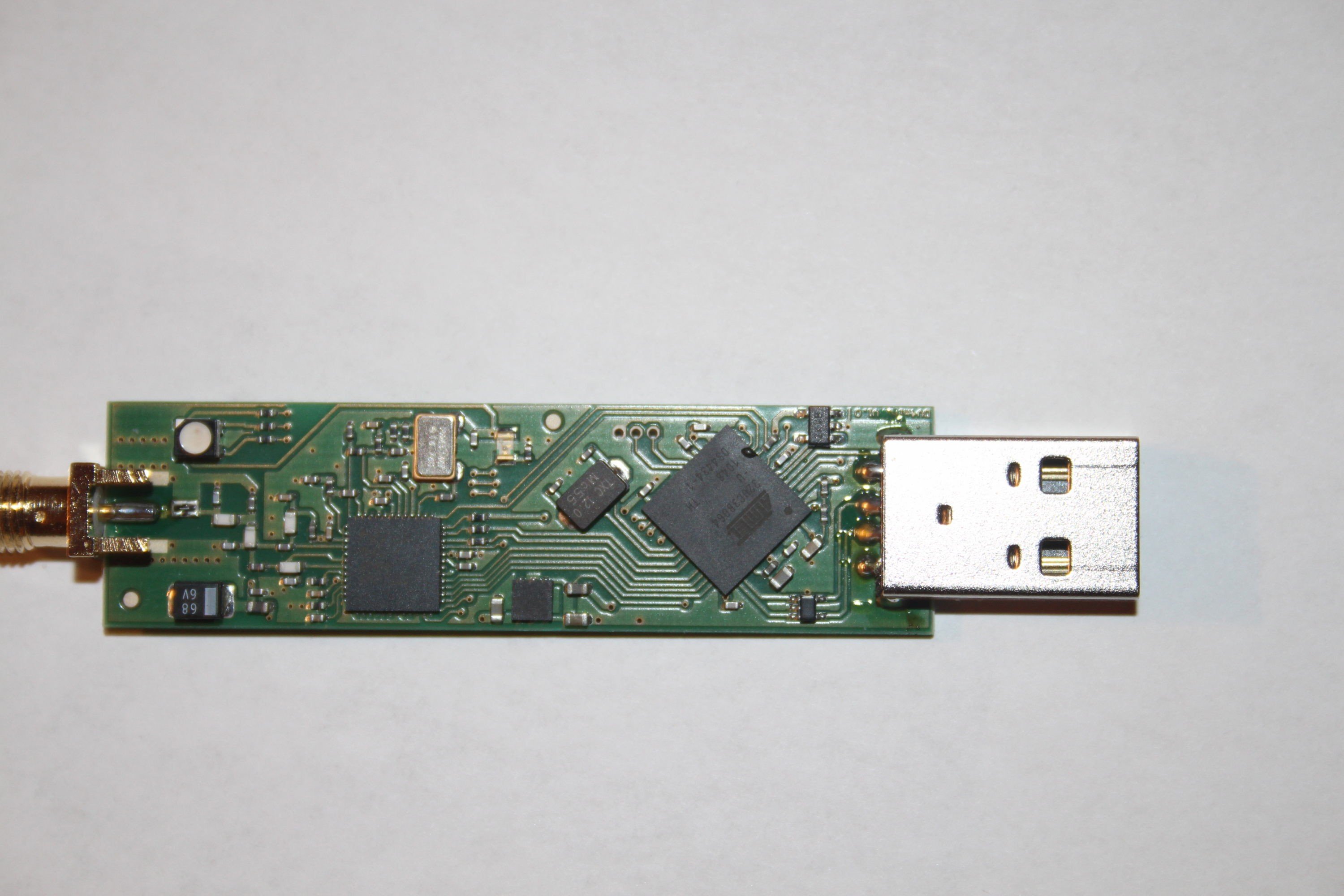

Equipped with a 32-bit microcontroller, a 70cm transceiver (420-450Mhz) and a modulator/demodulator for GMSK and 4FSK modes.

The DV4MINI comes (without antenna) with its software for connection with DCS, XRF and REF reflectors for D-Star (Icom) mode, as well as P25, DMR Plus and C4FM (Yeasu) reflectors.

Works on Windows 7, 8, 10 and Linux on desktop, laptop computer, Raspberry Pi, BananaPi or ODROID, minimum requirement is a dual-core processor.

The DV4mini works only in simplex mode and on DMR Plus network (Hytera) and on DMR+ or BrandMeister DMR network.

Passion Radio Shop don't offers DV4mini anymore and will not offer DV4home.

Other equivalent equipment recommended: Pack BlueDV = DVmega + Bluestack Micro Plus.

More details

Download

Doc DV4mini (EN)

891.36k

Doc DV4mini (FR)

257.62k

Software DV4mini 1.64

792.27k

Firmware DV4mini 1.64

18.78k

Data sheet

Datasheet DV4mini

It is possible to connect several DV4 Mini Dongle on the same computer with a simultaneous use of multiple reflectors, even in mixed modes D-Star and DMR.

Frequency TX/RX range: 420-450Mhz
Output Power: 12mW max. with 10 steps:

0 = 0.03 mW
1 = 0.4 mW
2 = 1.2 mW
3 = 2.4 mW
4 = 3.9 mW
5 = 5.5 mW
6 = 7.1 mW
7 = 8.8 mW
8 = 10.5 mW
9 = 12 mW

Modulation types: GMSK, 4FSK
Operating modes: D-Star, Brandmeister DMR, DMR+, P25, C4FM Fusion and dPMR
Harmonics: Better than 60dB
Receiver: Sensitivity: -120dBm
TCXO: long-term stability: better than 2.5 ppm
TCXO: short-term stability: better than 1 ppm
Data speeds: 9600 or 4800, depending on the operating mode
Bit rate HF: 4800 bit/s or 4800 dibit/s

Connectivity and antenna

USB type A connector to connect directly to the computer (no cable required, USB Powered)
SMA female antenna connector. Requires an antenna with SMA male 50 Ohm (not included)

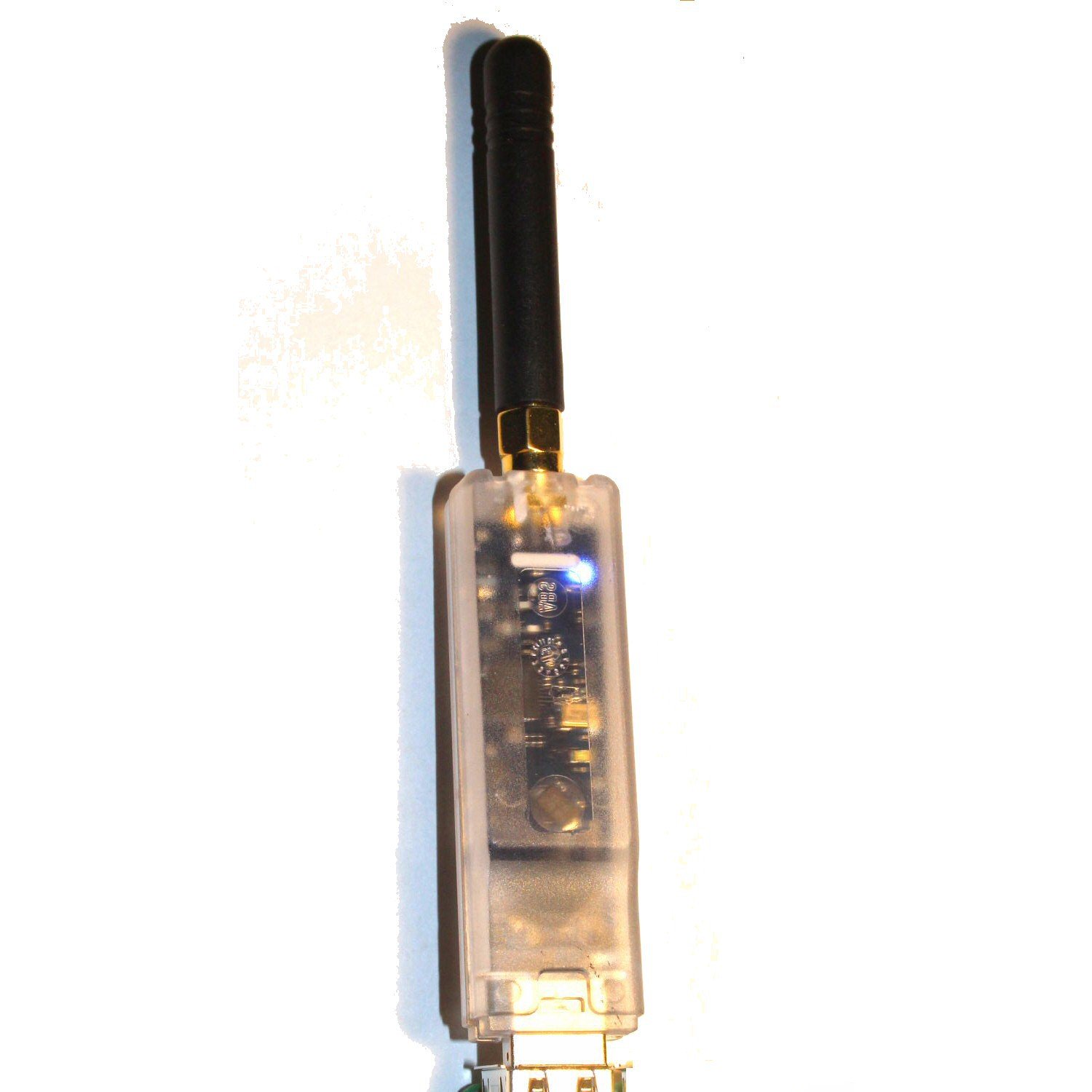

The DV4mini requires an antenna. It must not be used without an antenna. You can use the commonly available ‘rubber ducks’ with a SMA connector like the ones used with walkies. The DV4mini must not be connected to a high Yagi or similar antenna.

If you use a physically adjustable antenna, be careful that when you adjust the position of the antenna you hold onto the base and not the housing. Otherwise you may damage the SMA connector.

DV4mini Software

Download the latest software and firmware for DV4mini on our drivers and software page or below.

Operating conditions : This product must only be used within the technical data limits provided. All other not specifcally listed operations are not permitted. The DV4mini product is exclusively for use by licensed Amateur Radio Operators. Commercial use or operation outside the ham bands is specifcally prohibited. As the installation, use and operation of this product cannot be monitored the full responsibility rests with the user.

Passion Radio Shop don't offers DV4mini anymore and will not offer DV4home.

To create a hotspot DMR & D-Star piloted via bluetooth from an Android smartphone or tablet : Use application BlueDV with combo DVmega and Bluestack Micro+.
