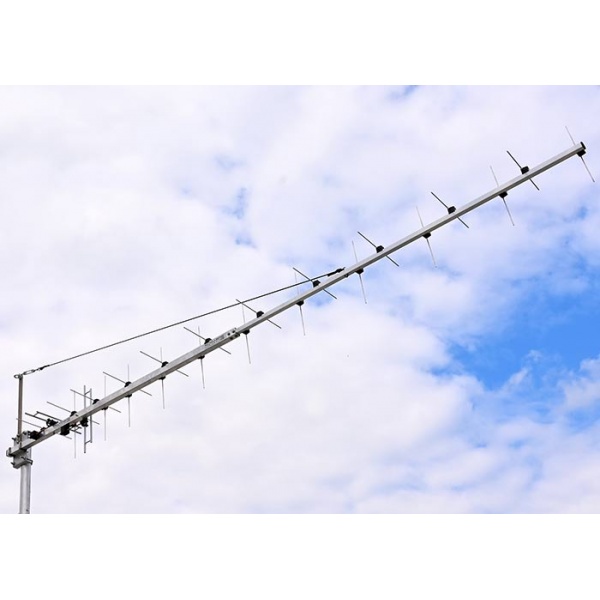

432 MHz CROSS EME 15.1dBi Yagi Antenna 12 + 12 Elements 70cmCROSS24DXR (AA)

View larger

Display all pictures

Manufacturer: Antennas Amplifiers

Reference: AA-1730-70cmCROSS24DXR-2364

Condition: New product

Country of origin:

Serbia

432 MHz CROSS EME 15.1dBi Yagi Antenna 12 + 12 Elements 70cmCROSS24DXR (AA)

No review at the moment

70cm Rear Mount EME Antenna 70cmCROSS24DXR, low Noise, best gain antenna for super weak EME – Q65 MAP65 signals on 432-434 MHz band.

Highest possible suppression of all side lobes and the best G/T. Excellent for stacking.

Easy to put on any mast. You do not need to care whether it is fiberglass or not. Any metal pipe from 42 to 70mm will be good enough.

Old name PA432-CROSS-24-3RBGP.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

Data sheet

70cm Rear Mount CROSS Yagi Antenna 70cm24CROSS3R

Electrical Specifications 70cmCROSS24DXR (old name PA432-CROSS-24-3RBGP)

Frequency Range: 432 – 434 MHz
Free Space Forward Gain: 15.5 dBi
Front to Back Ratio: 31 dB
-3 dB Horizontal Beam width: 32.7°
-3 dB Vertical Beam width:35.2°
Polarization: Horizontal, Vertical. With phase shift RHCP, LHCP
Distance Between Dipoles: 173 mm
Degrees: 90°
Isolation Between Antennas: More than 30dB
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 850 W per antenna. 1700W for circular.
Matching Method: Direct feed through common mode choke (current balun)
Connectors: 2 x “N”

70cm Rear Mount CROSS Yagi Antenna 70cm24CROSS3R Azimuth Radiation Pattern

Mechanical Specifications:

Number of Elements: 24 (12 + 12)
Element Diameter: 4 mm Aluminum rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 340 mm
Element Mounting Position: Above the boom and on side
Balun and Connectors: Included
Boom Length: 2.83 m
Single Antenna Length: 2.38 m
Boom Size: Tapered Boom 30×30 mm, 20×20 mm
Number of Boom Pieces: 2
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 3.5 kg
Gross Weight: 5.5 kg
Turning radius: 2.9 m
Transportation Length: 1.5 m

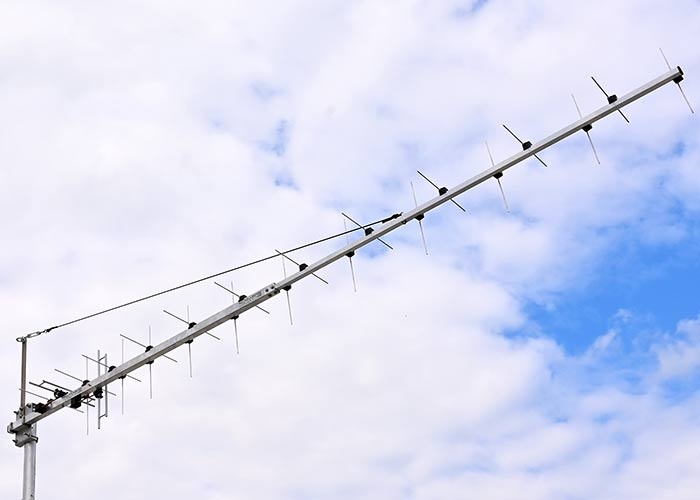

70cm Rear Mount CROSS Yagi Antenna 70cm24CROSS3R

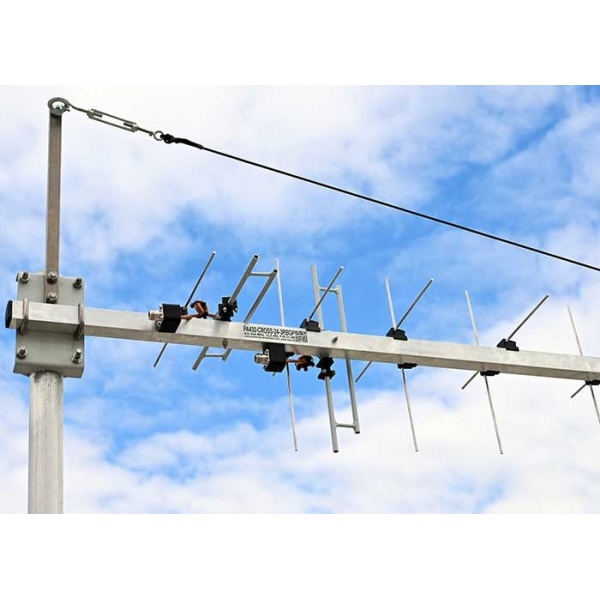

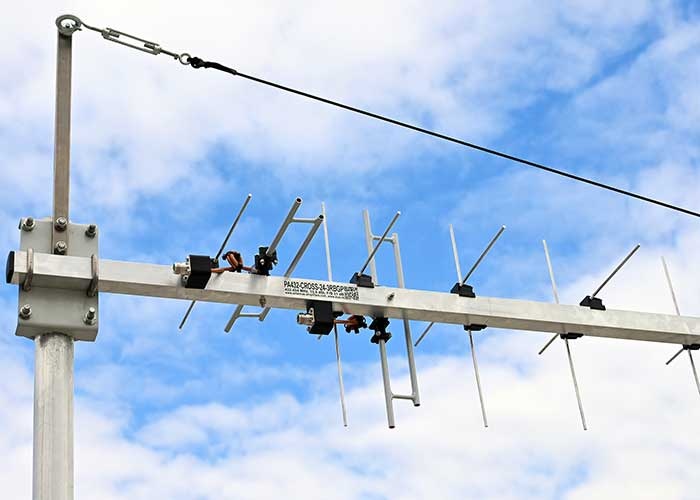

70cm Rear Mount CROSS Yagi Antenna EME Contest 70cm24CROSS3R-Label and Cross Elements View

432MHz Rear Mounted CROSS Yagi Antenna EME MAP65 70cm24CROSS3R

Old name PA432-CROSS-24-3RBGP.
