> Ham & radio equipment>CB 27Mhz >CB President Teddy 2 station 40 AM / FM channels 27 Mhz
Radio CB President Teddy 2 ASC 40 Channels AM / FM View larger
President

PRESIDENT-TEDDY-2-ASC-1233

New product

Italy

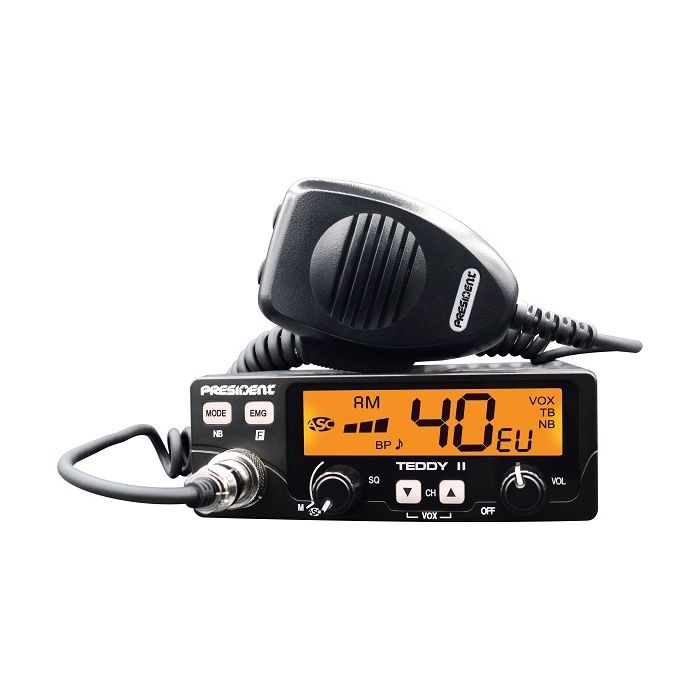

CB President Teddy 2 station 40 AM / FM channels 27 Mhz

rating Read the review
Average rating: 5/5 Number of reviews: 1

CB Mobile AM / FM President Teddy II set, 40 channels (26.965 - 27.405 MHz). Compatible with 5 European CB standards, 4 watt AM / FM output power with 12 V power supply.

Hands-free option: integrated VOX
Electret type microphone (6-Pin with speaker wiring)

Delivered with: 1 Radio CB Mobile President Teddy 2.

More details

90,83 € tax excl.

In stock

   1 Item

Download

Manual President Teddy 2 ASC

1.95M

Data sheet

40 AM / FM channels
Up / down channel selector
Volume adjustment and ON / OFF
Manual squelch and ASC (automatic squelch control)
Multi-function LCD display
S-meter,
ANL filter (Automatic noise limiter)
NB (Noise Blanker)
VOX (hands free)
Roger Beep function
Programmable preset channel
Front microphone jack
External speaker socket

Technical specifics

Frequency ranges: from 26.965 MHz to 27.405 MHz
Antenna impedance: 50 ohms
Power supply: 12 V
Size: 125 (L) x 151 (D) x 45 (H)
Weight: 0.9 kg

Transmission

Frequency accuracy: +/- 200 Hz
Power: 4 W AM and FM
Microphone sensitivity: 7 mV
Consumption: 1.7 A (with modulation)

Reception

Maximum sensitivity at 20 dB sinad:
- 0.5 μV - 113 dBm AM
- 0.35 μV - 116 dBm FM
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 2.5W
Consumption: 160 to 420 mA
